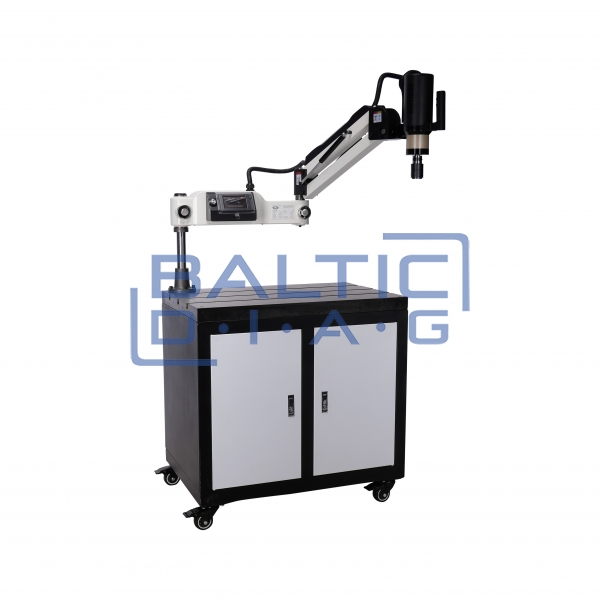

Electric threading machine / threading lever Valkenpower M6 - M24

Electric threading machine / threading lever Valkenpower M6 - M24

This Cowley electric threading machine is used for fast and accurate threading of various types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated into the housing, and the machine has internal memory to store multiple programs.

The threading machine also has the following functions:

HD touch screen for easy operation in Dutch, English and French

PLC control

Self-lubricating bronze bushings ensure optimum flexibility

Wide range of threads from M6 to M24

Dynamically adjustable thread depth

Integrated on / off button

Weightless operation due to gas springs

Powerful servo motor

Electrically adjustable torque

Adjustable input and output speed

Touch screen with protective cover

Interchangeable thread heads with quick release system

Technical specifications:

power = 1.2 kW

voltage = 230V

duty cycle = 100%

tapping range = M6 to M24

max. speed = 200 rpm

max. working radius = 1200 mm

The device is equipped with:

9x GT24 DIN thread holder with slip sleeve (adjustable torque)

M5-6 (ø6.0 mm / stem = 4.9 mm)

M8 (ø8.0 mm / stem = 6.2 mm)

M10 (ø10.0 mm / stem = 8.0 mm)

M12 (ø9.0 mm / stem = 7.0 mm)

M14 (ø11.0 mm / stem = 9.0 mm)

M16 (ø12.0 mm / stem = 9.0 mm)

M18 (ø14.0 mm / stem = 11.0 mm)

M20 (ø16.0 mm / stem = 12.0 mm)

M22-24 (ø18.0 mm / stem = 14.5 mm)

NOTE: The threaded lever is supplied without a mobile base cabinet with a cast iron top.
