Electric threading device / hand

Electric threading device / hand

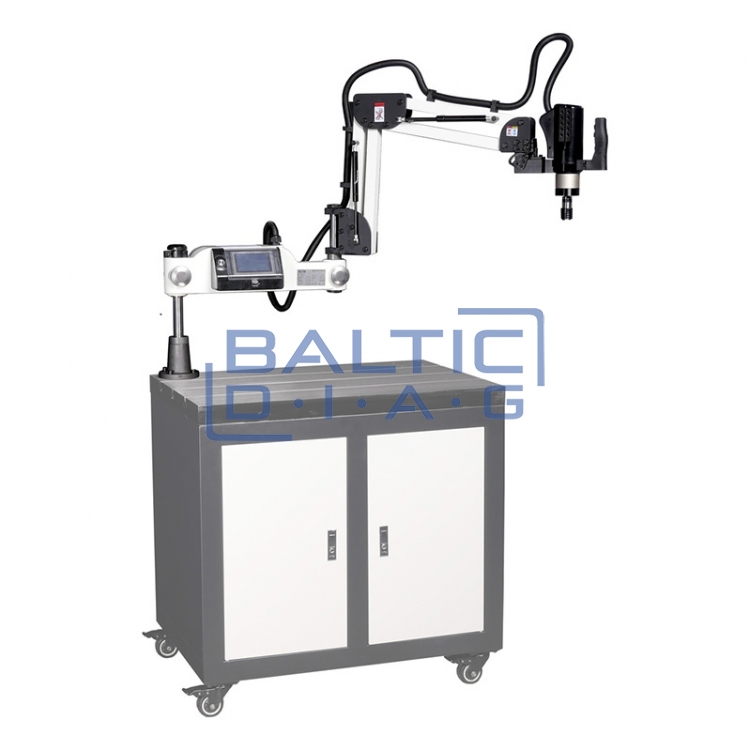

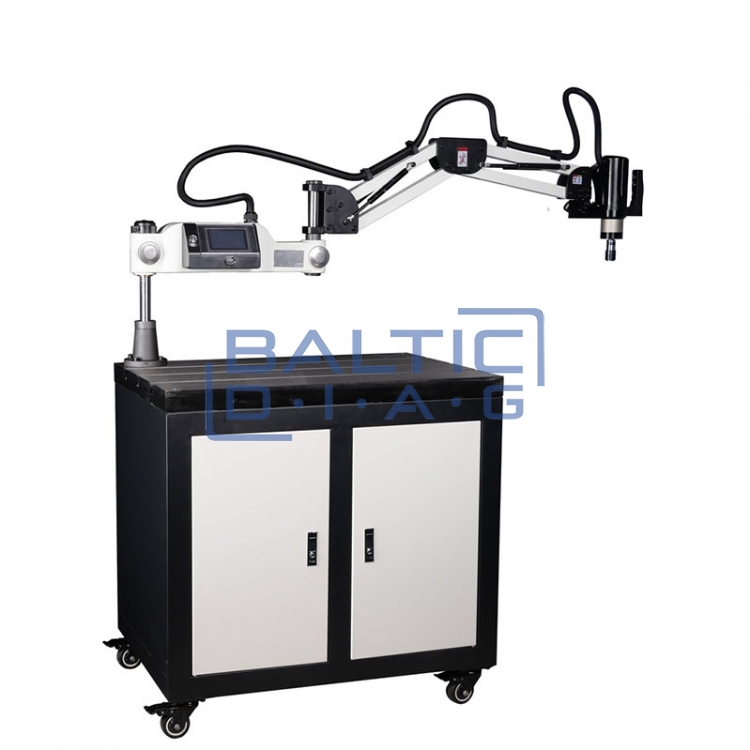

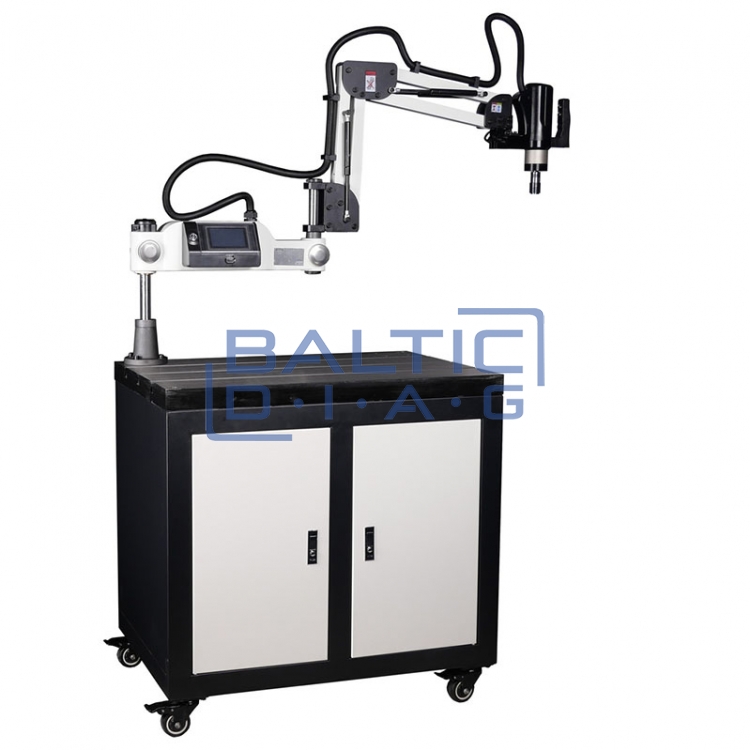

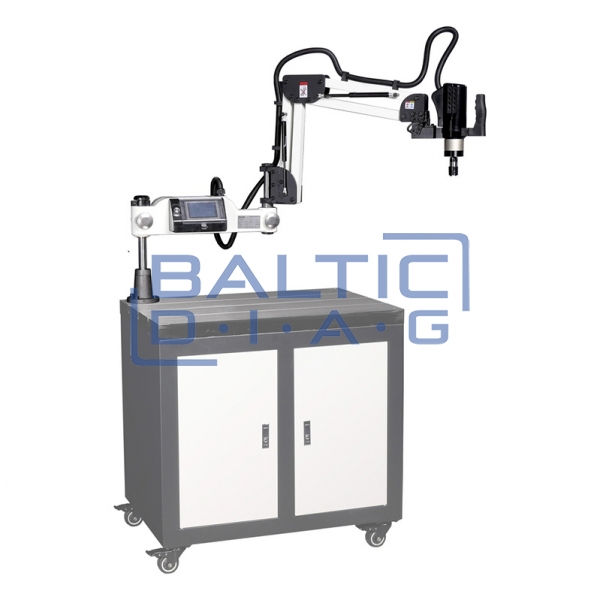

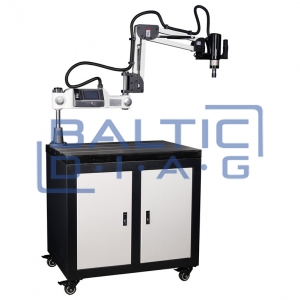

This electric tapping device is used for fast and accurate tapping of various materials and shapes. The device can be used both horizontally and vertically. The speed of the motor can be adjusted, its cooling is nicely integrated into the overall body, and the device has an internal memory that will allow you to save several frequently used threading parameters.

Features:

• Extendable 3-piece arm
• HD touch screen for easy device control
• PLC control
• Self-lubricating bearings that optimize flexibility
• Wide range of possible threads: from M3 to M16
• Dynamically adjustable threading depth
• Integrated on/off button
• Weightless handling thanks to built-in gas springs
• Powerful servo motor
• Electronically adjustable torque
• Adjustable input and output speed
• Touch screen with protective cover
• Interchangeable heads, with a quick release system installed

Technical parameters:

• Supply voltage: 230 V / 50 Hz
• Extension: 550 mm
• Power: 0.6 kW
• Rotation speed: 312 rpm
• Maximum working radius: 1100 - 1500 mm
• Milling cuts: M3 - M16

Complete set:

• GT12 DIN Bracket with Slip Coupling: (torque adjustable)
• M3 (Ø 3.5 mm / base length: 2.7 mm)
• M4 (Ø 4.5 mm / base length: 3.4 mm)
• M5-6 (Ø 6.0 mm / base length: 4.9 mm)
• M8 (Ø 8.0 mm / base length: 6.2 mm)
• M10 (Ø 10.0 mm / base length: 8.0 mm)
• M12 (Ø 9.0 mm / base length: 7.0 mm)
• G12 DIN bracket:
• M14(Ø 11.0 mm / base length: 9.0 mm)
• M16 (Ø 12.0 mm / base length: 9.0 mm)
