Electric press 30 ton Mammuth

Electric Press 30 Ton Mammuth

Country of origin: Netherlands, warranty period – 24 months

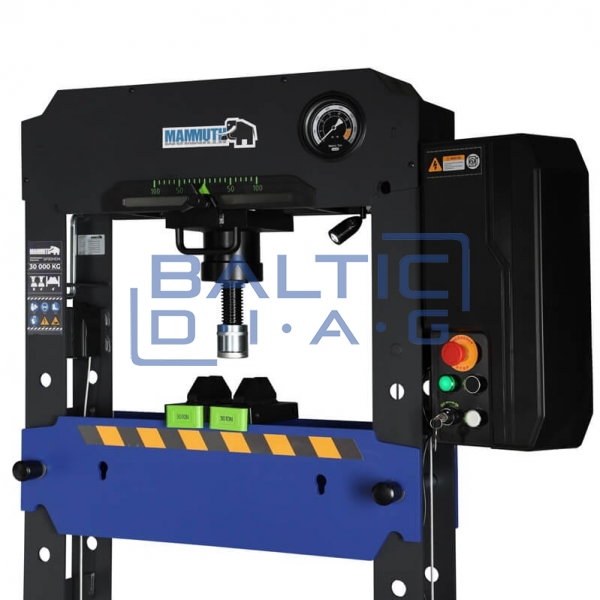

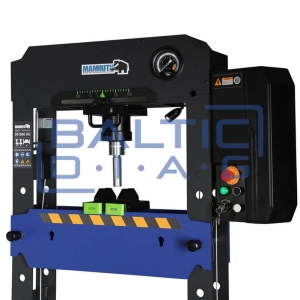

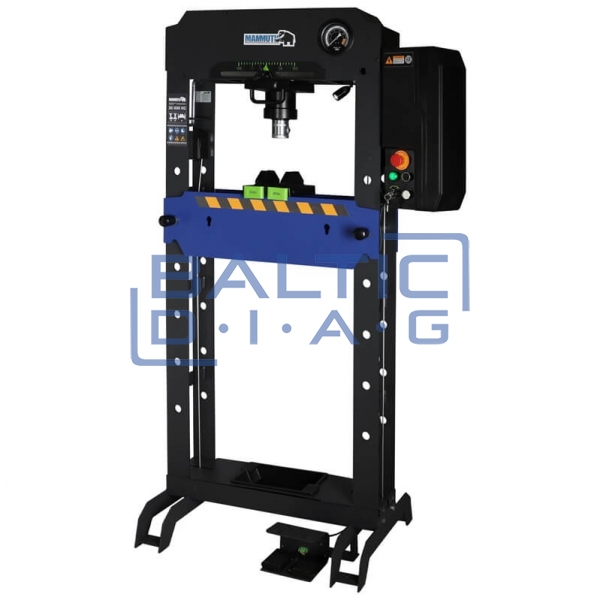

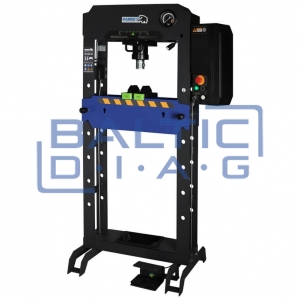

The Mammuth 30-ton electric press is a reliable and versatile device designed for professional use in automotive workshops, garages, and industrial environments. This press is ideal for various pressing tasks, including the installation and removal of bearings, shafts, bushings, bolts, and other mechanical components. The laterally adjustable cylinder and screw spindle ensure precise positioning, while the integrated pressure gauge and scale allow easy monitoring of pressure and workflow.

The electric control system, operable both manually and via the foot pedal, provides comfort and precise handling, enabling quick and fatigue-free operation. The workbed height can be adjusted to six positions using a convenient hand winch, and the quick-change cylinder cap allows for fast accessory changes. The robust fully welded steel frame ensures long-term stability, while the integrated LED lighting guarantees clear visibility of the work area. The unit includes two solid press blocks for versatile application.

Features:

• Electric control and foot pedal – fast, comfortable, and fatigue-free operation

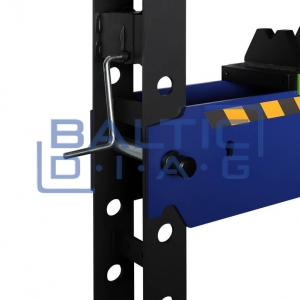

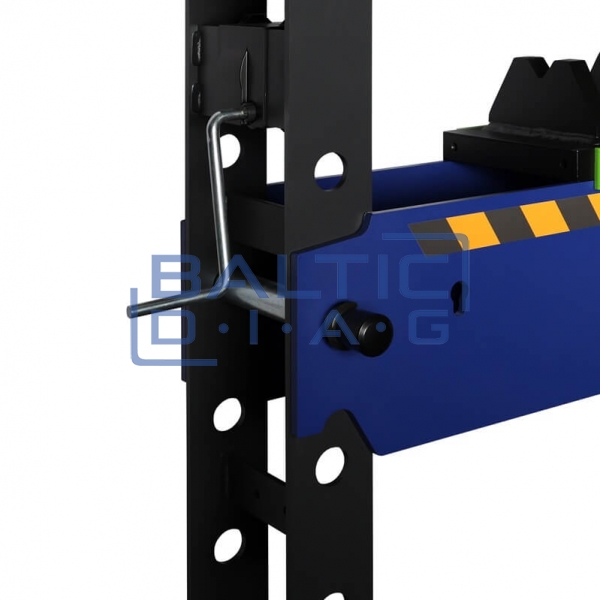

• Workbed adjustment with hand winch – six height positions for greater flexibility

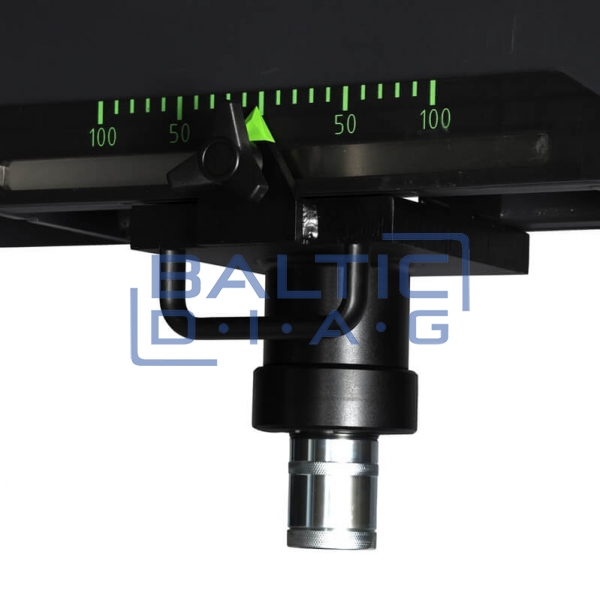

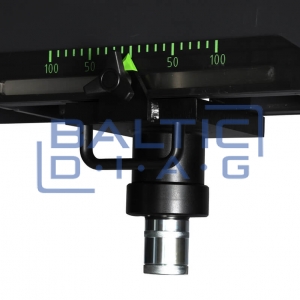

• Lateral cylinder adjustment with scale – precise positioning using the screw spindle
• Quick-change cylinder cap – easy and quick accessory changes

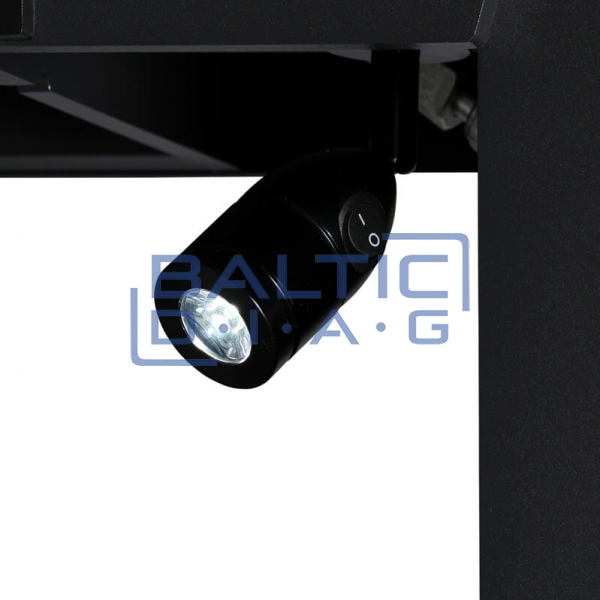

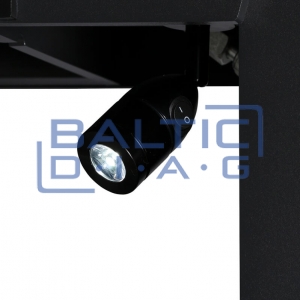

• Integrated LED lighting – optimal visibility of the work area
• Strong, fully welded steel frame – durability and stability
• Includes 2 press blocks – suitable for a wide range of applications

Technical Specifications:

• Pressing force: 30 tons
• Suitable for professional use: Yes
• Control type: Electric with foot pedal
• Power supply: 230 V
• Electric motor power: 500 W
• Motor speed: 6000 rpm
• Cylinder stroke: 220 mm
• Cylinder diameter: Ø55 mm
• Screw spindle length: 75 mm
• Side adjustable cylinder: Yes
• Scale divisions: Yes
• Pressure gauge: Yes, integrated
• Pressing speed (outgoing): 1.38 cm/s
• Pressing speed (incoming): 1.47 cm/s
• Adjustable workbed: Yes, with hand winch
• Workbed width: 600 mm
• Workbed depth: 148 mm
• Minimum working height (between workbed and cylinder): 25 mm
• Maximum working height (between workbed and cylinder): 850 mm
• Frame material: Fully welded steel
• LED lighting: Yes
• Press blocks included: Yes, 2 pieces
• Pre-filled with oil: Yes
• Oil capacity: 2 L
• Oil type: OCH22

Product Dimensions:

• Length: 770 mm
• Width: 505 mm
• Height: 1800 mm
• Weight: 174 kg

Packaging Dimensions:

• Length: 1750 mm
• Width: 840 mm
• Height: 345 mm
• Weight with packaging: 205 kg
