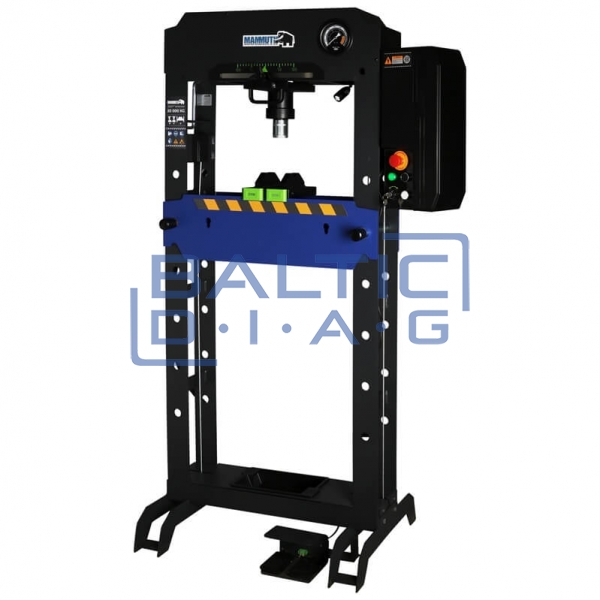

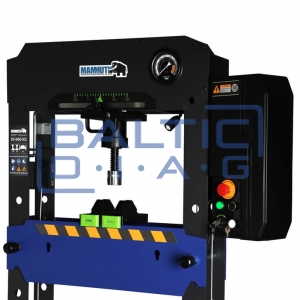

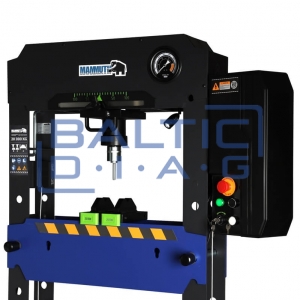

Electric press 20 ton Mammuth

Electric Press 20 Ton Mammuth

Country of origin: Netherlands, warranty period – 24 months

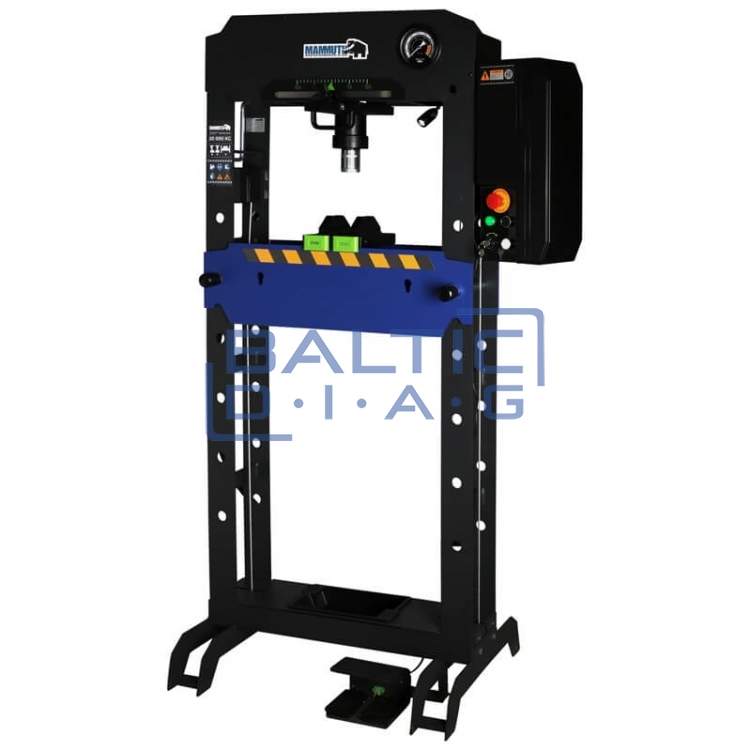

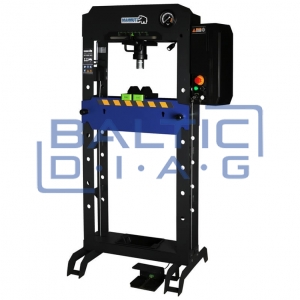

The Mammuth 20-ton electric press is a powerful and easy-to-use device, perfectly suited for daily use in professional automotive workshops and maintenance services. This electric press is designed for various tasks such as pressing in or out bearings, axles, bushings, bolts, and other mechanical parts. The robust, fully welded steel frame ensures structural stability, while the electrically controlled system allows for fast, precise, and fatigue-free operation. The unit also comes equipped with two sturdy press blocks.

Features:

• Electric control with foot pedal – for convenient, fast, and less tiring operation

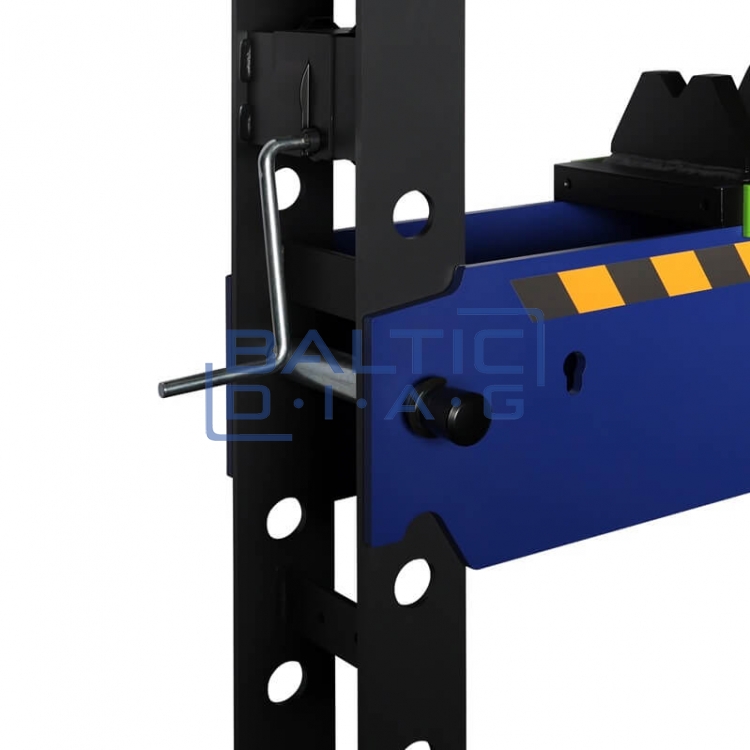

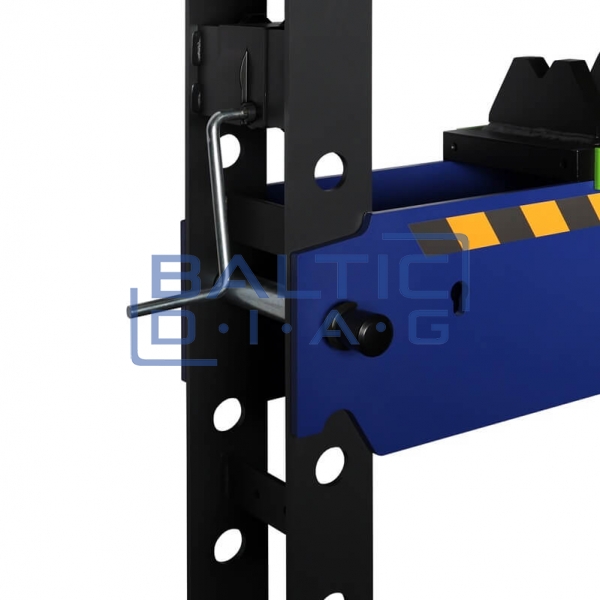

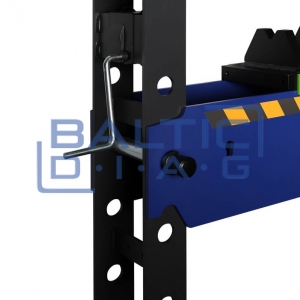

• Workbed adjustment with hand winch – easily set the height in 6 positions

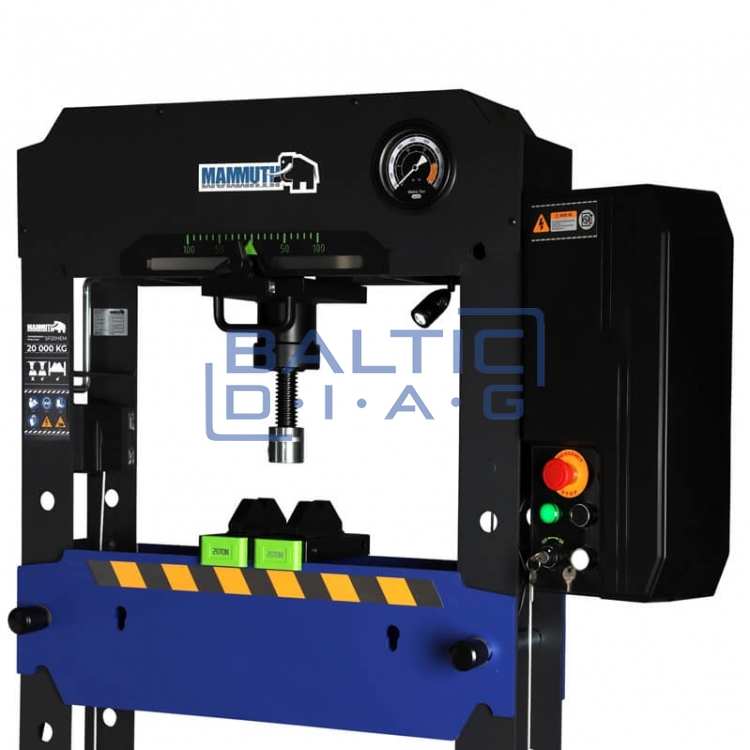

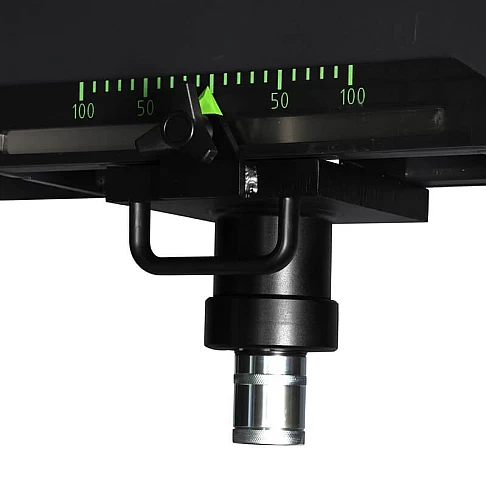

• Lateral cylinder adjustment with scale – precise positioning with screw spindle support
• Quick-change cylinder cap – fast and simple accessory changes
• Integrated LED lighting – excellent visibility even in poorly lit environments
• Integrated pressure gauge – for monitoring pressing force
• Strong, fully welded steel frame – ensures long-term stability and reliability
• Includes 2 press blocks – suitable for various pressing tasks

Technical Specifications:

• Pressing force: 20 tons
• Suitable for professional use: Yes
• Control type: Electric with foot pedal
• Power supply: 230 V
• Electric motor power: 500 W
• Motor speed: 6000 rpm
• Cylinder stroke: 220 mm
• Cylinder diameter: Ø50 mm
• Screw spindle length: 75 mm
• Side adjustable cylinder: Yes
• Scale divisions: Yes
• Pressure gauge: Yes, integrated
• Pressing speed (outgoing): 2.27 cm/s
• Pressing speed (incoming): 2.5 cm/s
• Adjustable workbed: Yes, with hand winch
• Workbed width: 600 mm
• Workbed depth: 152 mm
• Minimum working height (between workbed and cylinder): 25 mm
• Maximum working height (between workbed and cylinder): 910 mm
• Frame material: Fully welded steel
• LED lighting: Yes
• Press blocks included: Yes, 2 pieces
• Pre-filled with oil: Yes
• Oil capacity: 1.7 L
• Oil type: OCH22

Product Dimensions:

• Length: 1080 mm
• Width: 505 mm
• Height: 1800 mm
• Weight: 151 kg

Packaging Dimensions:

• Length: 1750 mm
• Width: 840 mm
• Height: 380 mm
• Weight with packaging: 181 kg
