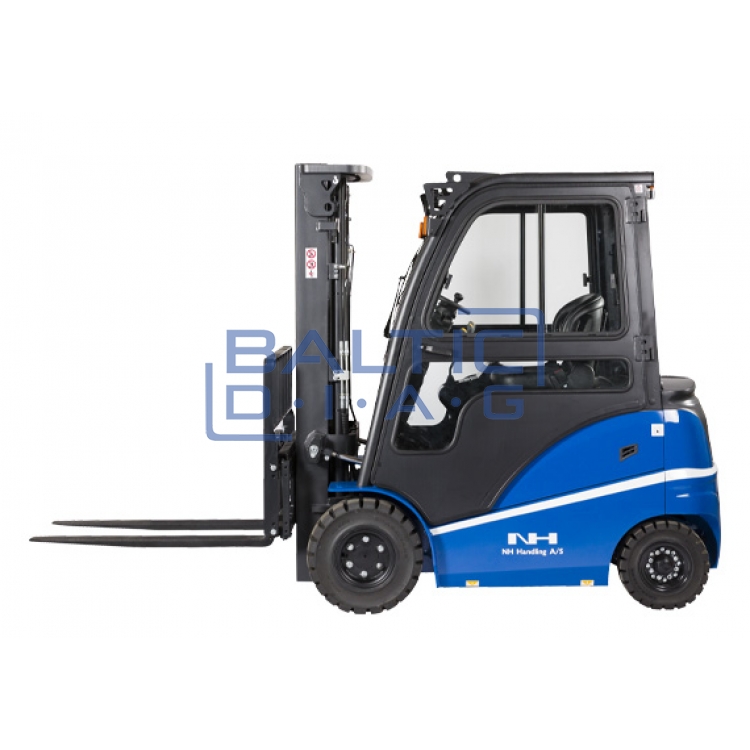

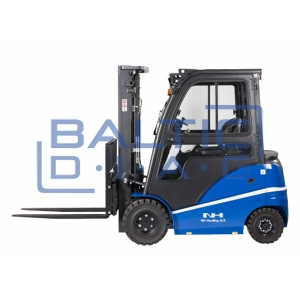

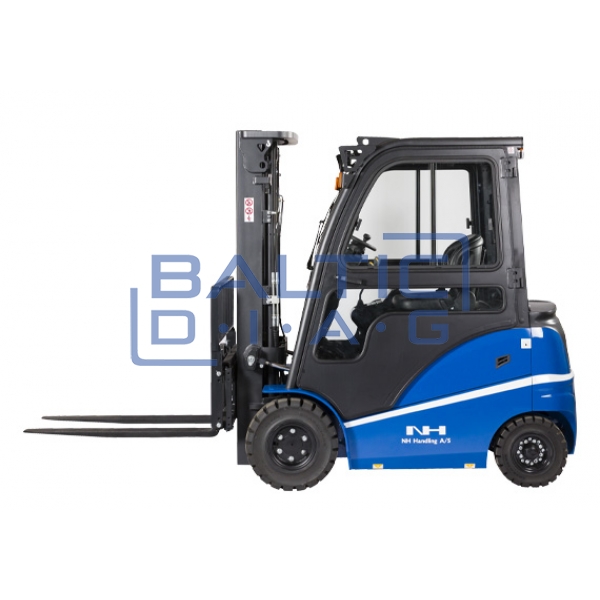

Electric forklift 2500 kg NH Handling NH2548-N

Electric Forklift 2500 kg NH Handling NH2548-N

Functions:

• Electric drive unit for quiet and efficient movement
• Durable rubber wheel system ensures stability and traction
• High lifting height – up to 4.8 m
• Curtiz AC controller – for smooth and precise control
• Ergonomic operator working height and excellent visibility
• Efficient hydraulic braking system
• Integrated 48 V battery with 600 Ah capacity

Technical specifications:

• Drive unit: electric
• Maximum load: 2500 kg
• Load center: 500 mm
• Distance from drive wheel center to fork tip: 468 mm
• Wheelbase: 1500 mm
• Weight with battery: 4260 kg
• Axle load with load (front/rear): 6020 / 750 kg
• Axle load without load (front/rear): 2000 / 2260 kg
• Wheel type: solid rubber
• Front wheel size: 23 x 9-10-18 PR mm
• Rear wheel size: 18 x 7–8–14 mm
• Wheel configuration: 2 / 2 x
• Travel speed with / without load: 13 / 14 km/h
• Lifting speed with / without load: 0.3 / 0.39 m/s
• Lowering speed with / without load: <0.6 m/s
• Gradeability with / without load: 13 / 15 %
• Service brake: hydraulic
• Drive motor (S2 – 60 min.): 11 kW
• Lifting motor (S3 – 15%): 8.6 kW
• Battery: 48 V / 600 Ah
• Battery weight: 947 kg
• Controller: Curtiz AC
• Fork tilt forward / backward: 6 / 10°
• Mast height (lowered): 2245 mm
• Fork height from floor to top: 1263 mm
• Lifting height: 4800 mm
• Mast height (raised): 5779 mm
• Overhead guard height: 2060 mm
• Seat height: 1100 mm
• Tow hook height: 295 mm
• Overall length: 3398 mm
• Length to fork back: 2328 mm
• Overall width: 1260 mm
• Fork dimensions: 40 x 120 x 1200 mm
• Fork carriage width: 1040 mm
• Free lift under mast with load: 110 mm
• Ground clearance at wheelbase center: 120 mm
• Aisle width with 1000 x 1200 pallet crosswise: 3588 mm
• Aisle width with 800 x 1200 pallet lengthwise: 3718 mm
