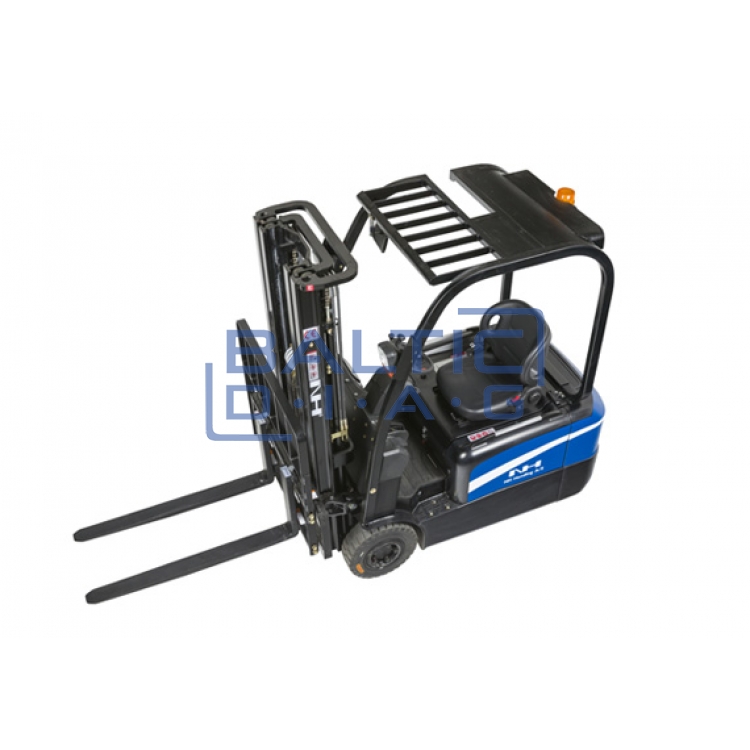

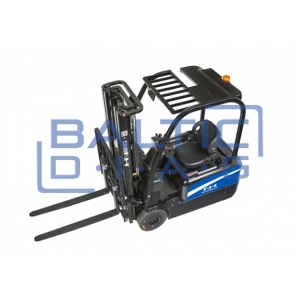

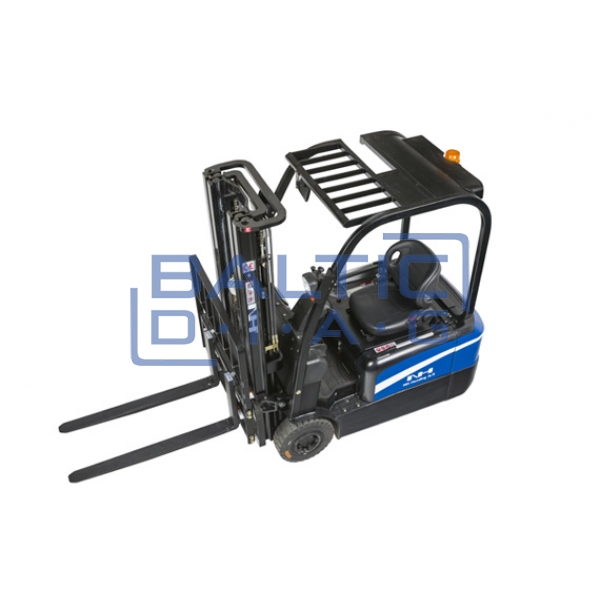

Electric forklift 1800 kg NH Handling NH1848

Electric Forklift 1800 kg NH Handling NH1848

Functions:

• Electric drive unit for smooth and quiet operation
• High lifting height – up to 4.8 meters
• Durable solid rubber wheels for stability and traction
• Zapi AC controller – for precise and efficient control
• Ergonomic operator seating position and excellent visibility
• Efficient hydraulic braking system
• Integrated 48 V battery with 500 Ah capacity

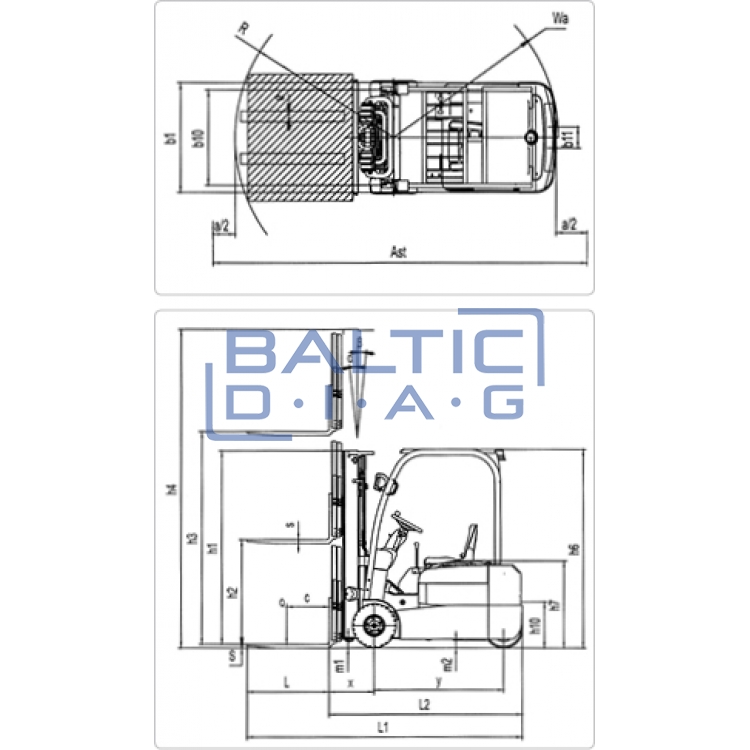

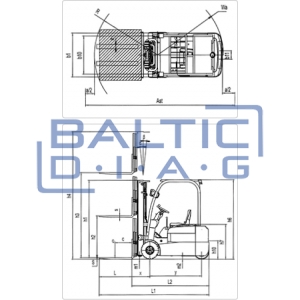

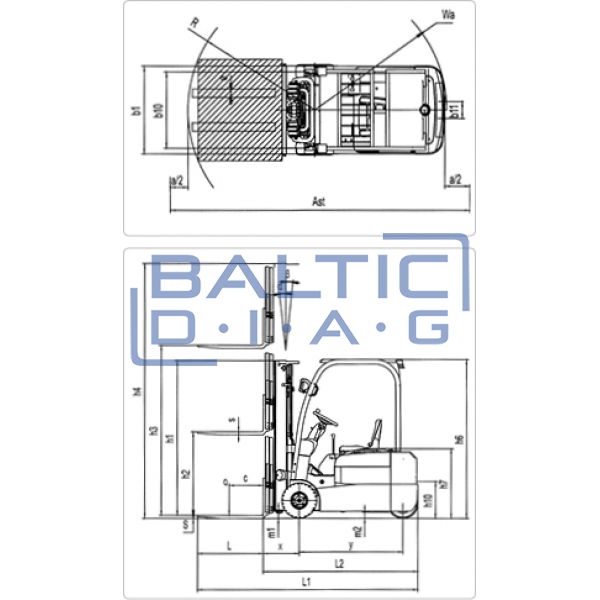

Technical specifications:

• Drive unit: electric
• Lifting capacity: 1800 kg
• Load center: 500 mm
• Distance from drive wheel center to fork tip: 397.5 mm
• Wheelbase: 1358 mm
• Weight with battery: 3375 kg
• Axle load with load (front/rear): 4640 / 320 kg
• Axle load without load (front/rear): 1620 / 1540 kg
• Wheel type: solid rubber
• Front wheel size: 18x7-8 mm
• Rear wheel size: 15x4.5-8 mm
• Wheel configuration: 2x / 2
• Travel speed with / without load: 13 / 14 km/h
• Lifting speed with / without load: 0.3 / 0.43 m/s
• Lowering speed with / without load: 0.44 / 0.435 m/s
• Gradeability with / without load: 10.5 / 14.5 %
• Service brake: hydraulic
• Drive motor (S2 – 60 min.): 2 x 9.0 kW
• Lifting motor (S3 – 15%): 11 kW
• Battery: 48 V / 500 Ah
• Battery weight: 753 kg
• Controller: Zapi AC
• Fork tilt forward / backward: 6 / 6.5°
• Mast height (lowered): 2143 mm
• Fork height (lowered): 1662 mm
• Lifting height: 4800 mm
• Mast height (raised): 5281 mm
• Overhead guard height: 2060 mm
• Seat height: 855 mm
• Tow hook height: 475 mm
• Overall length: 2765 mm
• Length to fork back: 1845 mm
• Overall width: 1090 mm
• Fork dimensions: 40 x 100 x 1200 mm
• Fork carriage width: 1040 mm
• Free lift under mast: 108 mm
• Ground clearance at wheelbase center: 78 mm
• Aisle width with 1000 x 1200 pallet crosswise: 3195 mm
• Aisle width with 800 x 1200 pallet lengthwise: 3320 mm
