Electric exhaust hose reel with integrated fan WORKY GERFT+10010

Electric exhaust hose reel with integrated fan WORKY GERFT+10010

Country of origin: Italy, warranty period – 24 months

These reels are available in various diameters ranging from 75 mm to 200 mm and in lengths from 7.5 meters to 15 meters – see the table below!

The price is indicated for the GERFT+10010 model.

These WORKY electric hose reels are designed for professional exhaust gas extraction in auto repair shops, workshops, or maintenance facilities. The GERFT+10010 model is equipped with an integrated 230 V single-phase motor intended for automatic hose unwinding and rewinding. The hose is pre-mounted on the drum, and the hose stopper is built directly into the motor and can be adjusted as needed.

This version is also equipped with an integrated fan mounted directly to the reel's structure. An optional GEMC control panel can be connected to enable automatic hose unwinding. A radio signal receiver ensures easy and convenient remote control, allowing the unit to be operated from ground level. WORKY also offers other models in this series with hose diameters up to 200 mm and lengths up to 15 meters.

Features:

• Electric hose unwinding and rewinding mechanism with 230 V motor
• Adjustable hose stopper integrated into the motor
• Integrated exhaust extraction fan
• Optional connection of GEMC control panel for automatic activation
• Remote control via radio signal
• Durable powder-coated steel construction
• Wall or column mounting
• Suitable for professional industrial use

Technical specifications:

• Power supply: 230 V, single-phase, 50 Hz
• Motor power: 0.45 kW
• Fan power: 0.75 kW
• Current: 2 A
• Torque: 170 Nm
• Maximum lifting capacity: 145 kg
• Hose length: 10 m
• Hose diameter: 100 mm

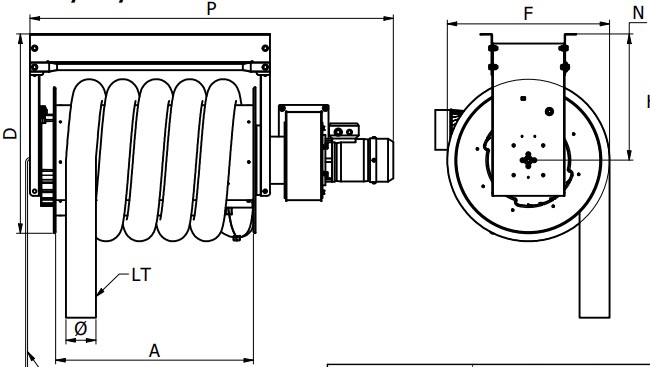

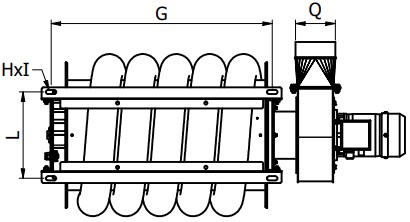

• Dimension A: 800 mm
• Dimension D: 858 mm
• Dimension F: 678 mm
• Dimension G: 2×424.5 mm
• Dimension HxI: 20×14 mm
• Dimension L: 324 mm
• Dimension P: 1386 mm
• Dimension Q: 125 mm
• Dimension N: 484 mm
• Weight: 72 kg

Motor technical data (used for all models from 75 mm to 150 mm):

• Power: 450 W
• Voltage: 230 V
• Phases: 1
• Frequency: 50 Hz
• Current: 2 A
• Torque: 170 Nm
• Maximum lifting capacity: 145 kg

DIMENSIONS OF ELECTRIC HOSE REELS
