Electric exhaust hose reel with integrated fan WORKY GERF+10010

Electric exhaust hose reel with integrated fan WORKY GERF+10010

Country of origin: Italy, warranty period – 24 months

These reels are available in various diameters ranging from 75 mm to 200 mm, and in lengths from 7.5 meters to 15 meters – see the table below!

The price is indicated for the GERF+10010 model.

The electric hose reel WORKY GERF+10010 is designed for professional exhaust gas extraction in auto service centers, workshops, or maintenance facilities. This reel features an integrated 230 V single-phase electric motor that enables automatic unwinding and rewinding of the hose mounted on the drum. The hose stopper is built directly into the motor and can be adjusted as needed. The unit also includes an integrated fan that is mounted directly to the reel's structure. A GEMC control panel (optional accessory) can also be connected, allowing the hose to unwind automatically. A convenient remote control with a 5-meter cable allows the unit to be operated easily from the ground. WORKY also offers other models in this series with hose diameters up to 200 mm and lengths up to 15 meters.

Features:

• Electric hose unwinding and rewinding mechanism with 230 V motor
• Adjustable hose stopper integrated into the motor
• Integrated exhaust extraction fan
• Option to connect a GEMC control panel for automatic activation
• Convenient remote control (5 m cable)
• Durable powder-coated steel construction
• Wall or column mounting
• Suitable for intensive professional use

Technical specifications:

• Power supply: 230 V, single-phase, 50 Hz
• Motor power: 0.45 kW
• Fan power: 0.37 kW
• Current: 2 A
• Torque: 170 Nm
• Maximum lifting capacity: 145 kg
• Hose length: 10 m
• Hose diameter: 100 mm

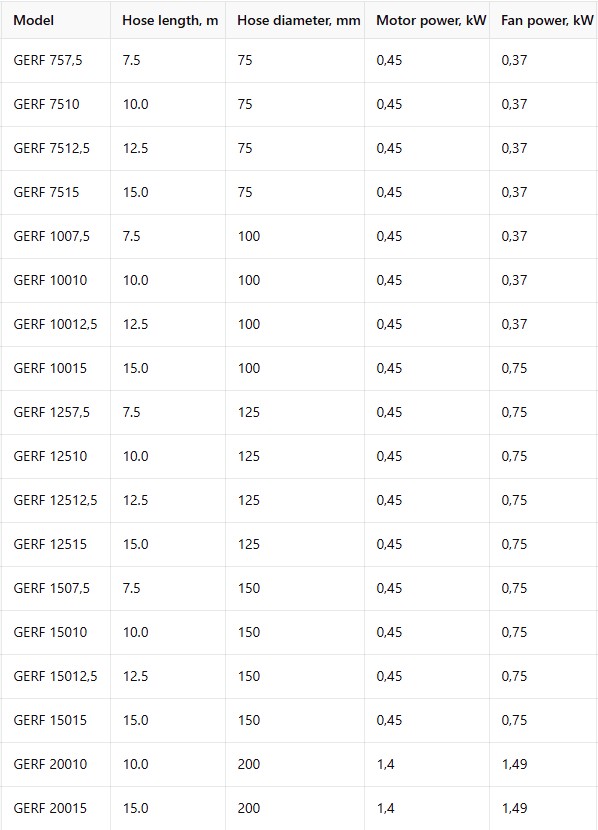

DIMENSIONS OF ELECTRIC REELS:
