ECU Programming tool for vehicles OBDSTAR DC706

ECU Programming Tool for Vehicles OBDSTAR DC706

Country of Origin: China, warranty period - 24 months

OBDSTAR DC706 is an advanced ECU programming and diagnostic tool designed for engine control modules (ECM), transmission control modules (TCM), and other electronic modules in cars, motorcycles, and other vehicles. The device allows ECU cloning, data reading and writing, mileage calibration, IMMO PIN code reading, and ECU recovery. DC706 operates via OBD connection or Bench mode, ensuring fast and efficient diagnostics and programming.

Functions:

• ECU cloning and programming via OBD or Bench mode
• Engine control module (ECM) cloning for various manufacturers: Bosch, Delphi, Denso, Siemens, etc.
• Transmission control module (TCM) cloning: AC Delco, Bosch, GM, ZF, Continental, etc.
• Body control module (BCM, BSI, CEM, DIM, EPS, etc.) programming
• R/W Eeprom/Dflash/Pflash/MAP data reading and writing
• ECU reset and "Virgin" mode activation
• Mileage calibration for VW DQXXX transmissions
• IMMO PIN code reading and ECU recovery
• Compatibility with over 1570 ECM types, 320+ TCM types, and 160+ body ECU types
• Automatic ECU identification and search by brand, model, manufacturer code, and MCU type
• Powerful database with help files

Supported ECU Manufacturers:

• ACDELCO
• ALPS
• ATE
• AUTOLIV
• BOSCH
• CONTINENTAL
• DELPHI
• DENSO
• DENSO DECE1C
• EFI
• GETRAG
• GM
• JC
• KEFICO
• LEAR
• MAGNETI MARELLI
• MARELLI
• SIEMENS
• SIMTEC
• TEMIC
• VALEO
• VISTEON
• YAZAKI
• ZF

Supported Brands:

Cars:

• ASTON MARTIN
• BMW
• FAW
• FCA (ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
• FORD/LINCOLN
• GM/OPEL
• HYUNDAI/KIA
• LAND ROVER/JAGUAR
• LUXGEN
• MASERATI
• MAZDA
• MITSUBISHI
• NISSAN
• OPEL
• PSA
• SMART
• SUBARU
• SUZUKI
• VOLVO
• VW/AUDI/SEAT/SKODA

Motorcycles:

• APRILIA
• BRP
• CFMOTO
• DERBI
• GILERA
• GUZZI
• ITALJET
• PEUGEOT
• PIAGGIO
• QJBENELLI
• VESPA

Technical Specifications:

• Operating System: Android 5.1.1
• Processor: RK3128 Quad-core ARM Cortex A7
• Battery: 3700 mAh rechargeable polymer lithium battery
• Memory Expansion: Supports 32 GB micro SD (TF) card
• Internal Storage: 16 GB

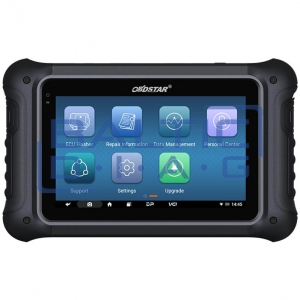

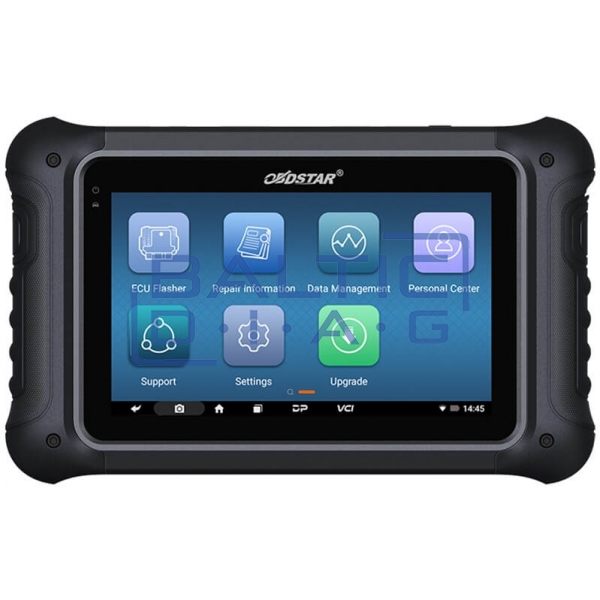

• Display: 7.0-inch touchscreen
• Resolution: 1024 × 600 px
• Touchscreen: Capacitive
• Wi-Fi: Supported
• Operating Temperature: -20℃ to 55℃
• Storage Temperature: -20℃ to 70℃
• Weight: Approx. 0.766 kg
• Dimensions: 243 mm × 148 mm × 36 mm
