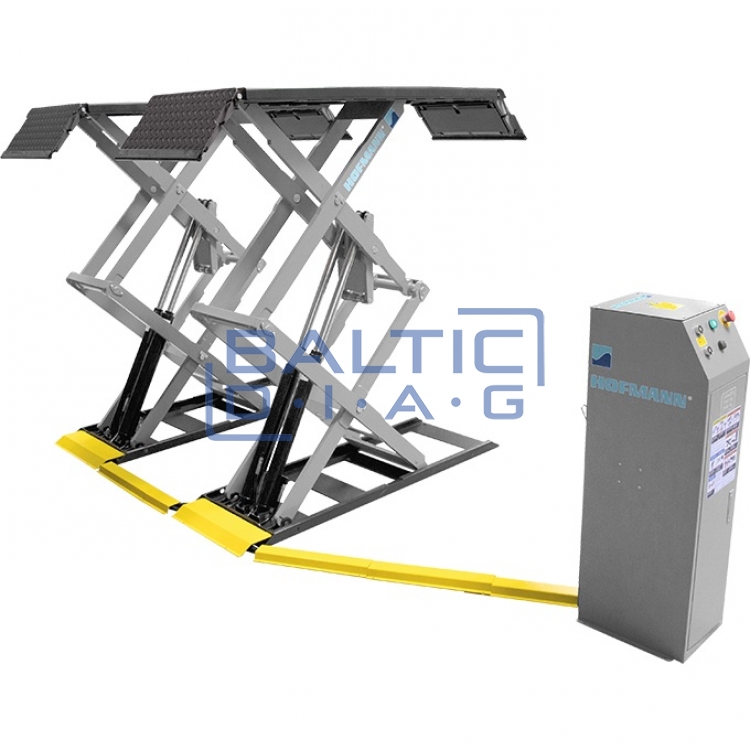

Double scissor lift variolift 3500 Hofmann

Double Scissor Lift variolift 3500 Hofmann

Country of origin: Italy, warranty period - 24 months

The variolift 3500 is a double scissor lift that serves as an indispensable tool for any automotive repair shop. It allows maximum workspace utilization with a flush mount installation or ensures optimal stability using a surface-mounted version.

This model features high lifting capacity and robust construction, making it an excellent choice for lifting passenger vehicles and commercial transport during various maintenance and repair tasks.

Features:

• Double scissor construction – ensures durability and stability
• Flush or surface mount installation options – adaptable to workshop requirements
• Short lifting time – increases work efficiency
• Wide platform adjustment range – suitable for various vehicle sizes
• No compressed air supply required – reduces additional costs and simplifies use

Technical Specifications:

• Lifting capacity: 3,500 kg
• Maximum lifting height: 1,830 mm (72")
• Lifting time: 48 sec
• Mounting Options:
• Surface mount installation: lifting height 1,905 mm
• Flush mount installation: lifting height 1,790 mm
• Platform length: 1,480 mm
• Overall platform length: 2,140 mm
• Ramp length: 330 mm
• Platform width: 651 mm
• Distance between platforms: 533-736 mm
• Drive-over height: 116 mm
• Overall height: 2,340 mm (92")
• Overall width: 3,310 mm (130")
• Power supply: 380-400V / 3Ph / 50 Hz
• No air supply required

Adjustable Platforms

• To facilitate the handling of vehicles with extended wheelbases, our adjustable lifting platforms are equipped with locking ramps and can be extended from 147 cm to 214 cm. Additionally, a reduced drive-over height ensures safe loading of vehicles with a low chassis.

Control Unit

• The compact control unit protects essential electrical components, the hydraulic power pack, and the hydraulic synchronization system. Designed for efficient and user-friendly operation, it features an emergency stop switch and a comfort lowering mechanism that automatically releases the locking mechanism when lowering the lift.

Drive-On Ramps

• The ramps extend by an additional 33 cm on each side and can be easily locked or unlocked. Additionally, they can be folded down at a 54-degree angle, allowing easier access to wheel service areas.

Hydraulic System

• Hydraulic cylinders with integrated flow control valves and two independent hydraulic circuits ensure precise and safe lowering. No compressed air is required to activate or deactivate the scissor structure’s locking mechanism.

Sturdy Structure

• Our robust and durable steel frame provides impressive lifting capacity, while chrome-plated pivot pins and fiber-reinforced bushings significantly extend performance life without requiring lubrication.
