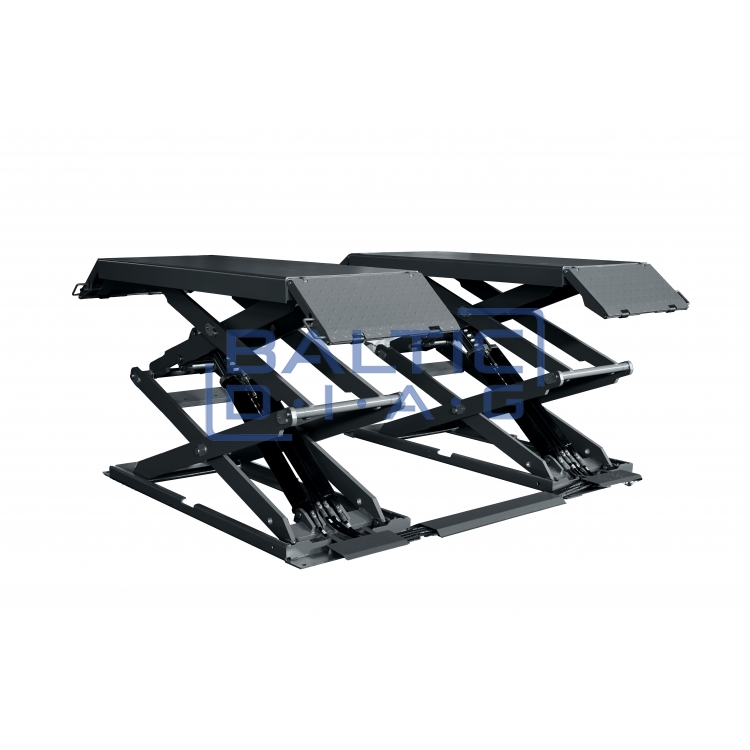

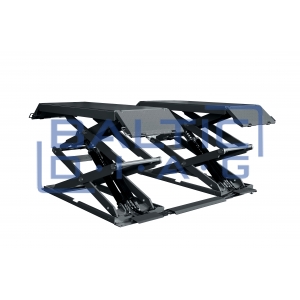

Double scissor lift BD-S4DE, 3500 kg

Double scissor lift BD-S4DE, 3500 kg

Country of origin: China, warranty period - 24 months

This double scissor lift is designed for lifting various vehicles with a weight of up to 3500 kg. Using this lift, you will be able to carry out various car repair works, from changing the simplest wheels to complex transmission and chassis repairs. Due to their simple installation, you will be able to use them in garages, workshops and garages.

Advantages:

• The mechanism of folding scissors is used, thanks to which the space occupied by the lift is significantly saved
• Independent lift control unit. Low control voltage (24 V), which provides a high level of safety
• Hydraulic synchronization of the lift cylinders, which keeps the lift platforms level at all times and ensures synchronized operation
• Double safety mechanism that locks the platforms against falling
• Safety valves that protect against unexpected hydraulic system problems or overloading
• The lift is equipped with a mechanical lowering of the lift in case of a power outage
• The base of the device can be made of concrete and cement
• Frame - made of steel connecting pins, lifting platforms, sliding tracks, pneumatic double locking mechanisms, hydraulic oil tank
• At the top of the control unit – the electronic control part of the lift is installed, and at the bottom – the hydraulic oil pump, valves and other components of the hydraulic system

Technical parameters:

• Platforms with additional access ramps / platform extensions

• Operating principle of the lift: Electro-hydraulic
• Carrying capacity: 3500 kg
• Lifting height: 1900 mm
• Minimum platform height: 105 mm
• Platform length: 1495 – 2110 mm
• Width of platforms: 620 mm
• Lifting / lowering time: ~50 / ~60 sec.
• Scissor lift total length: 2110 mm
• Scissor lift overall width: 2035 mm
• Total weight: 950 kg
• Supply voltage: 400 V / 50 Hz / 3 phases or 230 V / 50 Hz / 1 phase
• Email engine power: 2.2 kW
• Hydraulic oil capacity: 18 liters
• Compressed air pressure used: 4 ~ 6 kg/cm2
• Operating temperature: 5°C - 40°C
• Working ambient humidity: 30 - 95%

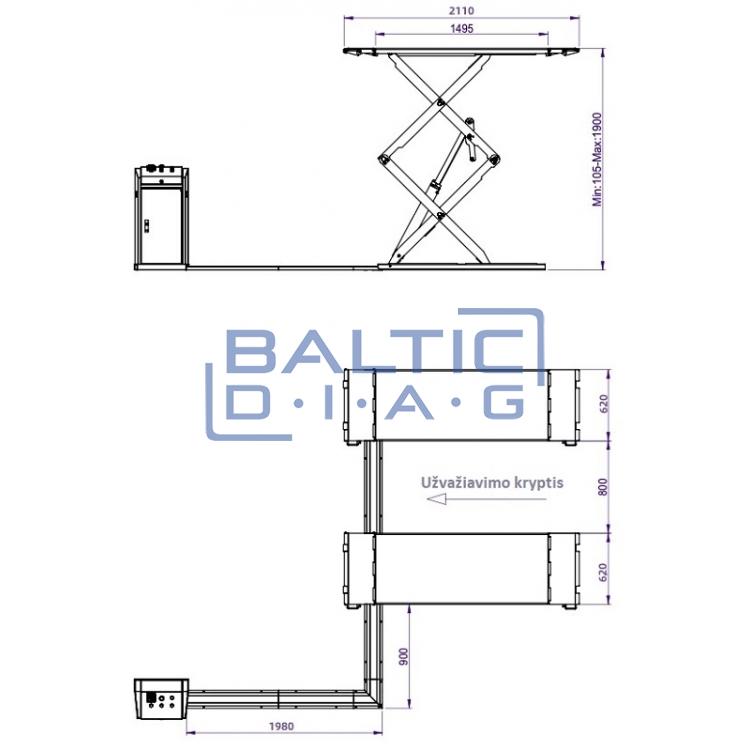

Dimensions:
