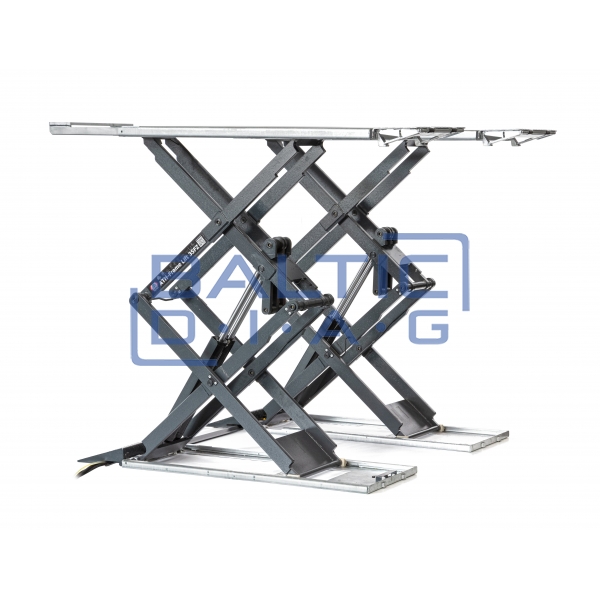

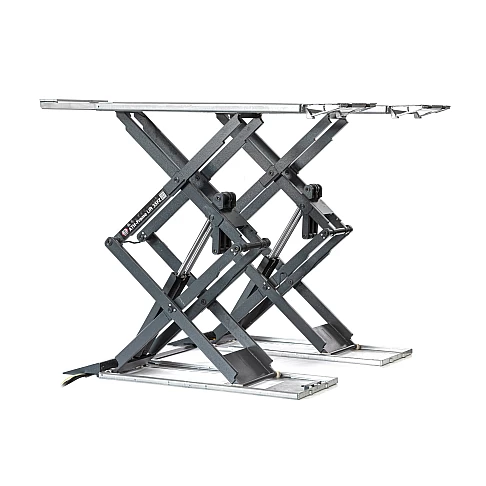

Double scissor lift ATH-Frame Lift 35FZ 3500kg

Double scissor lift for cars ATH-Frame Lift 35FZ 3500kg

Country of origin: Germany Warranty period: 24 months

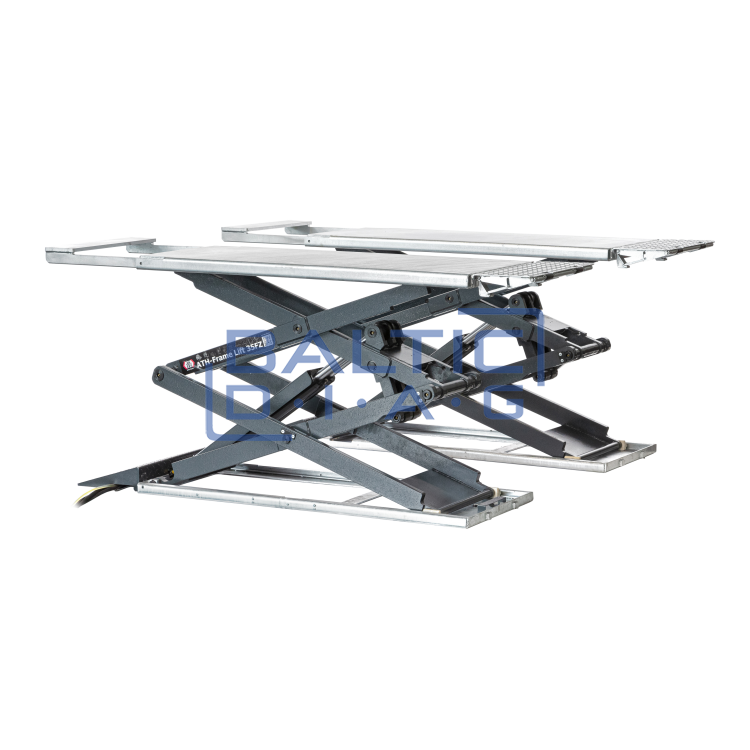

Double scissor lift, suitable for painting works, body repair, wheel and tire maintenance. Due to its low drive-over height (105 mm) and lockable drive-over ramps, it is convenient and versatile. The lift can be installed both on the floor and in the floor, which provides flexibility. Its robust hydraulic drive is durable and almost maintenance-free, and manufacturing by laser and robotic welding ensures high quality. An integrated LED signal light continuously controls the lift's synchronization, and the hydraulic double-locking system for lowering ensures safety without additional systems.

Functions:

• Partial galvanization and double powder coating
• Powder-coated surface (anthracite gray)

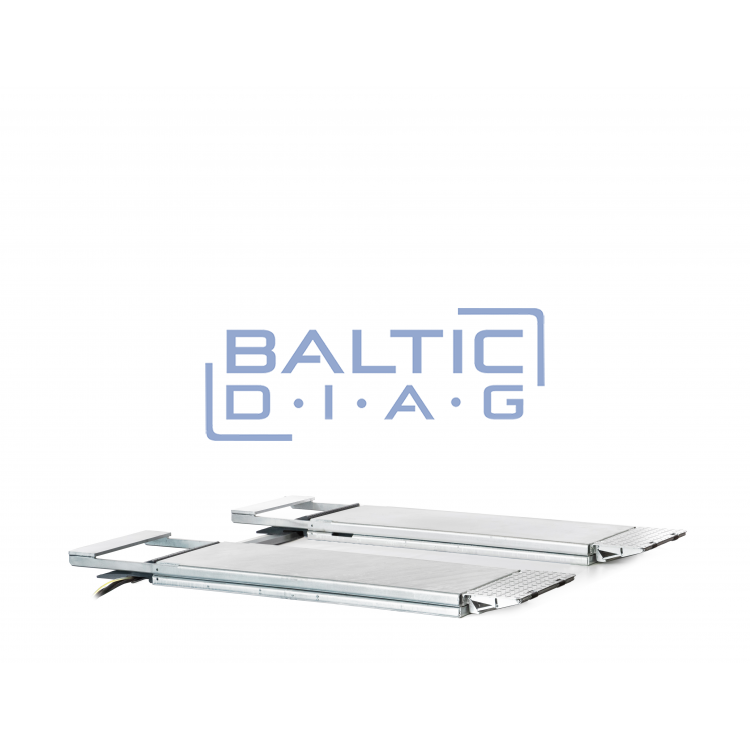

• Low drive-over height and lockable drive-over ramps

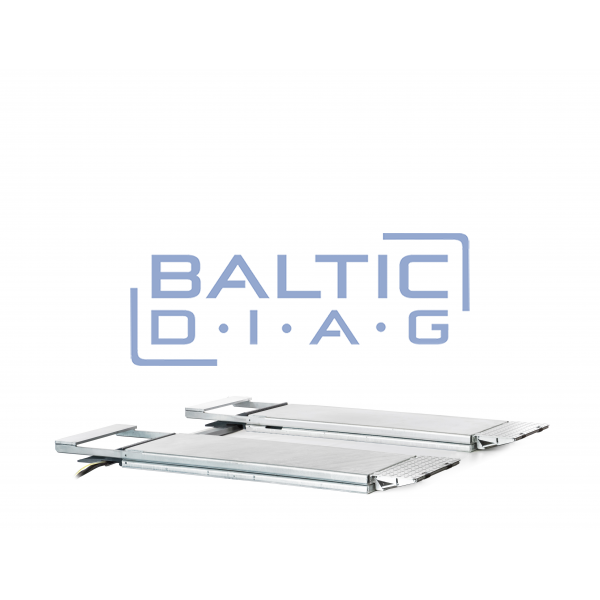

• Suitable for on-floor and in-floor installation
• Integrated LED signal light for synchronization
• Lifting and lowering by button control
• Hydraulic double-locking system for lowering
• Emergency lowering system in case of power outage
• CE stop and warning sound

Technical specifications:

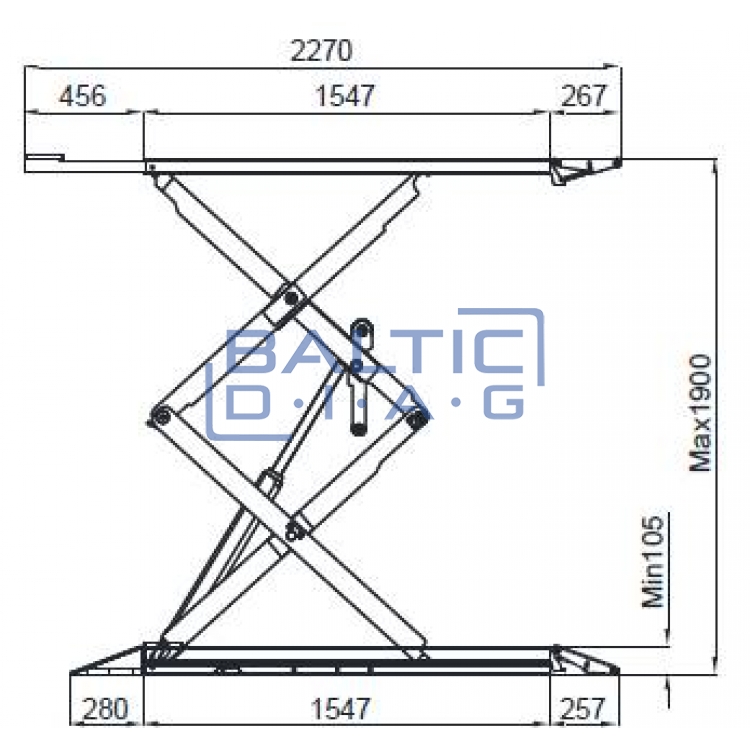

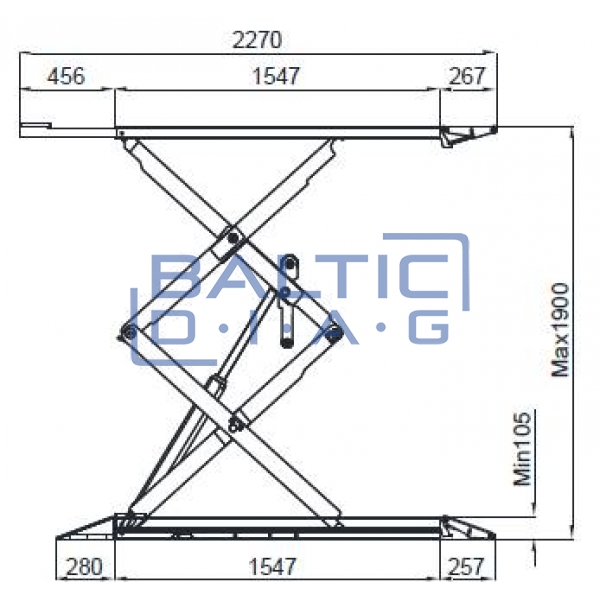

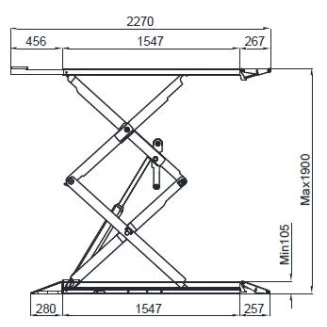

• Lifting capacity: 3500 kg
• Minimum height: 105 mm
• Maximum lifting height: 1900 mm

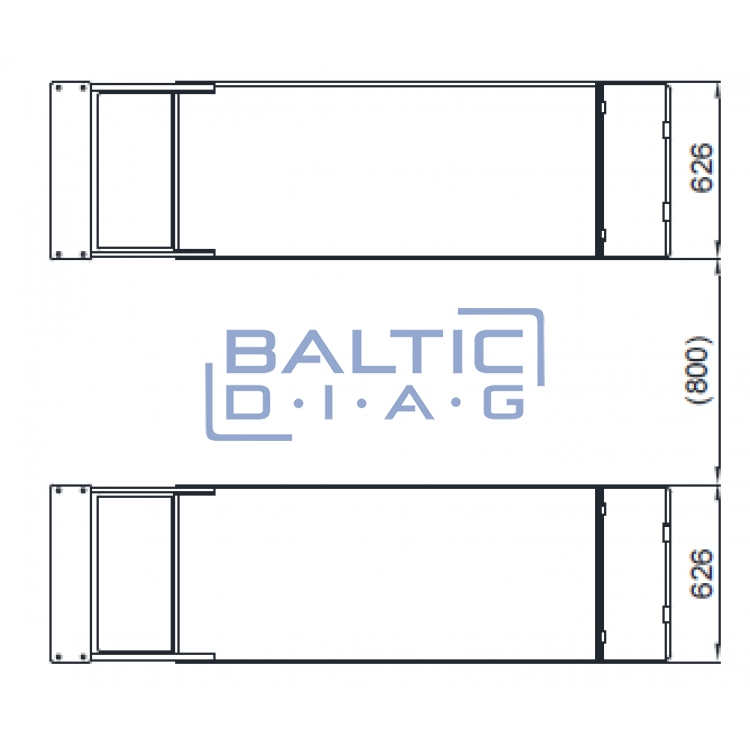

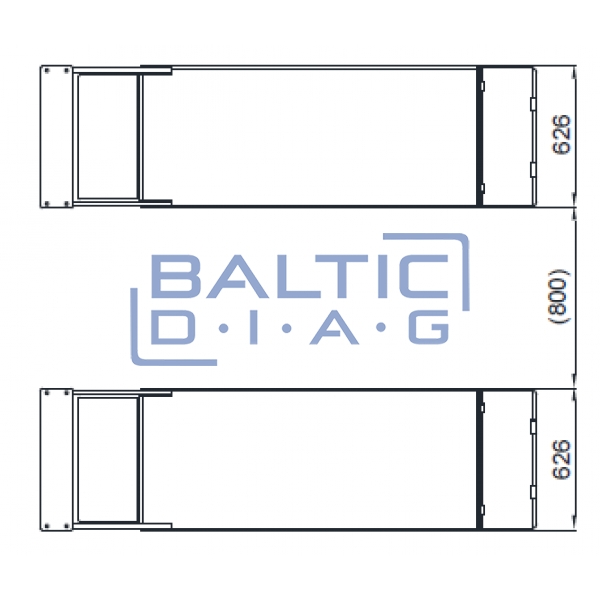

• Platform width: 325 mm
• Platform length: 1547 – 2270 mm
• Concrete strength: C20/25
• Power supply: 3 / 400V / 50Hz
• Foundation depth without floor covering: 180 mm
