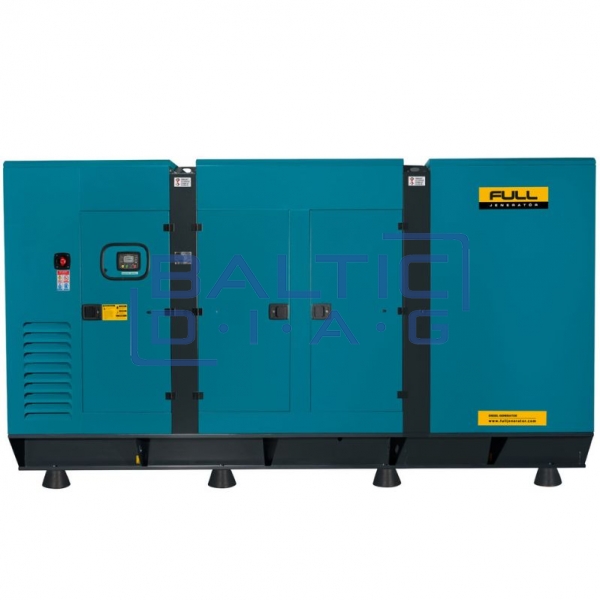

Diesel generator FULL FG 840 with 610 kW prime power

Diesel Generator FULL FG 840 with 610 kW Prime Power

Country of origin: Turkey, warranty period – 24 months

The FULL FG 840 is a high-capacity three-phase diesel generator designed for professional use where continuous and reliable electricity supply is essential — in industrial facilities, high-load systems, or construction and engineering complexes. The generator is powered by a robust 12-cylinder V-type turbocharged engine (SD30G1020TLD) with a displacement of 30.1 liters. It features an efficient turbo-intercooler air intake system, a massive 1350-liter fuel tank, and advanced technologies for vibration damping, noise reduction, and automatic voltage regulation. Engineered to withstand intensive operating conditions, this generator meets all international CE, ISO, and EAC quality and safety standards.

Features:

• Maximum standby power: 840 kVA (672 kW)
• Continuous prime power: 763 kVA (610 kW)
• Turbocharged engine with intercooler and direct injection
• 12-cylinder V-type engine with a 30.1 L displacement
• Operating speed: 1500 RPM (50 Hz frequency)
• Large 1350-liter fuel tank
• Fuel consumption: 173.4 l/h (100% load), 88.3 l/h (50% load)
• Electronic speed governor
• Digital control panel with transparent monitoring window
• Anti-corrosion electrostatic powder-coated enclosure
• Reliable soundproof canopy with lockable doors
• Vibration-damping base mounts
• Certified to CE, ISO 9001, ISO 14001, ISO 45001, and EAC standards

Technical Specifications:

Engine:

• Model: SD30G1020TLD
• Number of cylinders: 12 (V-type)
• Injection system: Direct
• Compression ratio: 17.6:1
• Displacement: 30.1 L
• Bore: 138 mm
• Stroke: 168 mm
• Air intake: Turbocharged + Intercooled
• Speed: 1500 RPM
• Oil capacity: 65 L
• Coolant capacity: 151 L
• Fuel type: Euro diesel

Alternator:

• Model: FLL400C
• Power: 840 kVA
• Voltage: 400 V
• Phases: 3
• Frequency: 50 Hz
• Voltage regulation: ±1%
• Insulation class: H
• Protection rating: IP23
• Power factor: 0.8

Dimensions and Weight:

With soundproof canopy:

• Length: 4800 mm
• Width: 1900 mm
• Height: 2700 mm
• Weight: 6270 kg

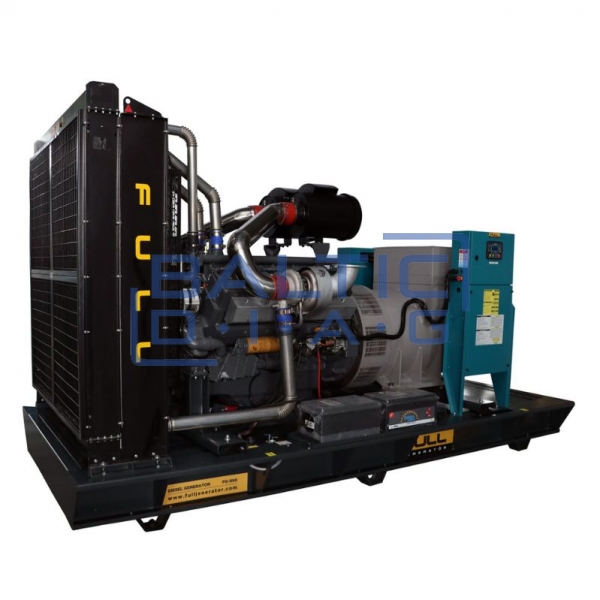

Open type:

• Length: 4150 mm
• Width: 1900 mm
• Height: 3150 mm
• Weight: 5230 kg
• Fuel tank capacity: 1350 L
