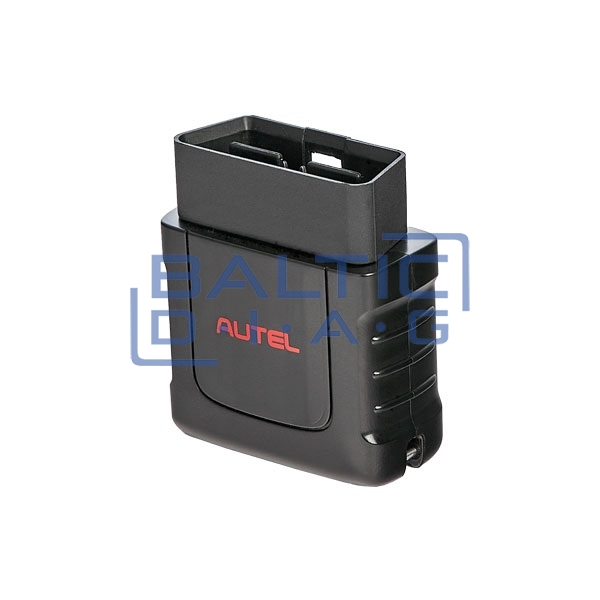

Diagnostic adapter Autel MaxiVCI Mini

Diagnostic adapter Autel MaxiVCI Mini

The MaxiVCI V100 wireless diagnostic adapter is a small module designed to connect to the vehicle and wirelessly transmit information to the MaxiCheck/ MaxiDas diagnostic tablet. Thanks to BT wireless technology, you will be able to work freely around the car. Wirelessly, you will connect the vehicle's ECU with tablets that support Bluetooth technology.

Features:

• Diagnostic adapter Autel MaxiVCI Mini is compatible with Autel diagnostic models: MX808TS / DS808TS / DS808S-TS / TS608 and others.
• The operating range of the Autel MaxiVCI Mini wireless interface reaches up to 10 m. Compared to the 1m, wired diagnostic connector, MaxiVCI mini allows you to work more conveniently and efficiently.
• This adapter is powered by a direct 12 V connection from the vehicle
• Autel MaxiVCI Mini is compatible with Autel 808 series diagnostic devices. It can easily be paired with these devices and immediately perform advanced functions such as scanning engines, gearboxes, comfort and other modules, error diagnosis and various service functions.

Technical parameters:

• Interfaces: Bluetooth V2.1 + EDR USB 2.0
• Wireless frequency: 2.4 GHz
• Supply voltage: 12 - 24 V / DC
• Supply current: 150mA @ 12V
• Operating distance: ~ 10 m
• Dimensions: 103 x 45 x 34 mm
• Weight: 32 g
• Connector: 16 pins, OBDII
• Operating temperature: 0 °C - 50 °C
