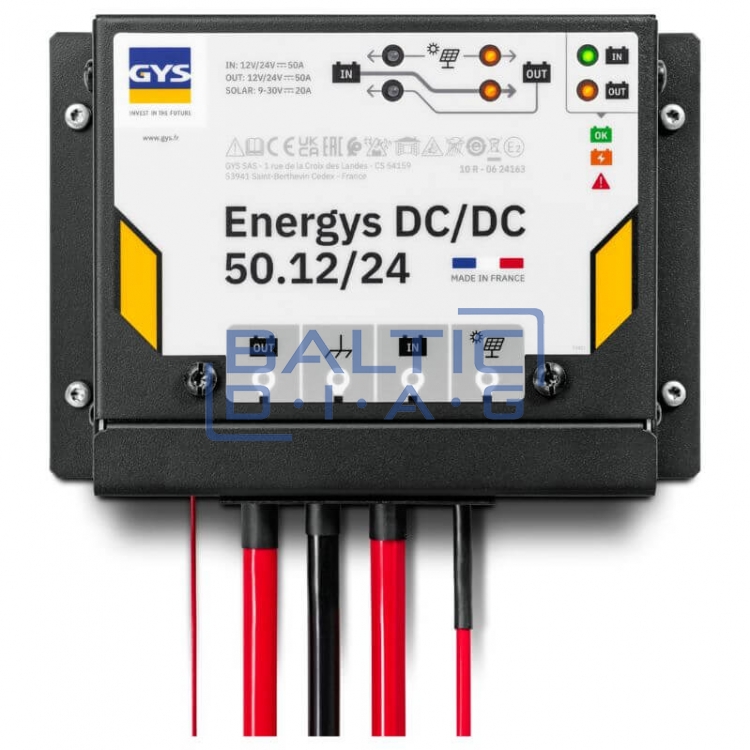

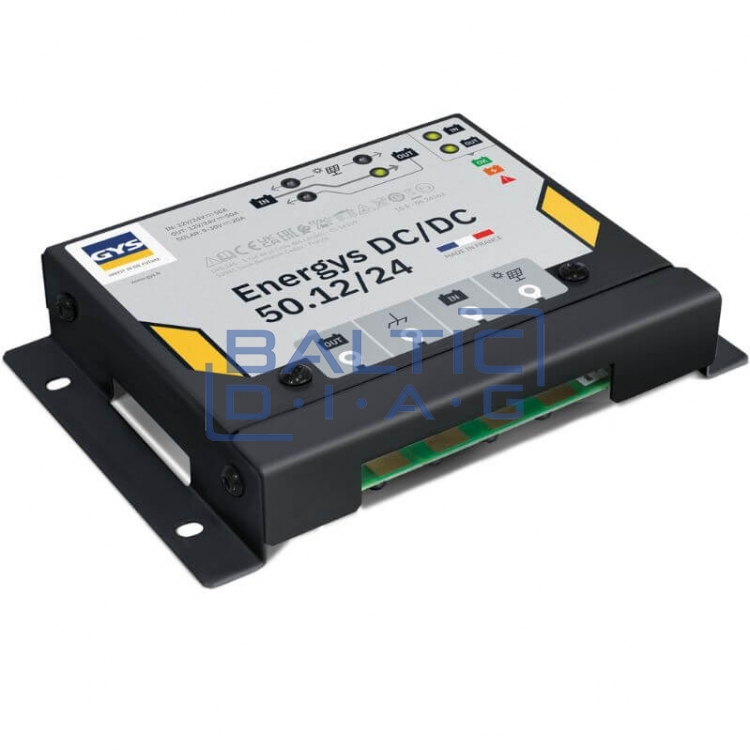

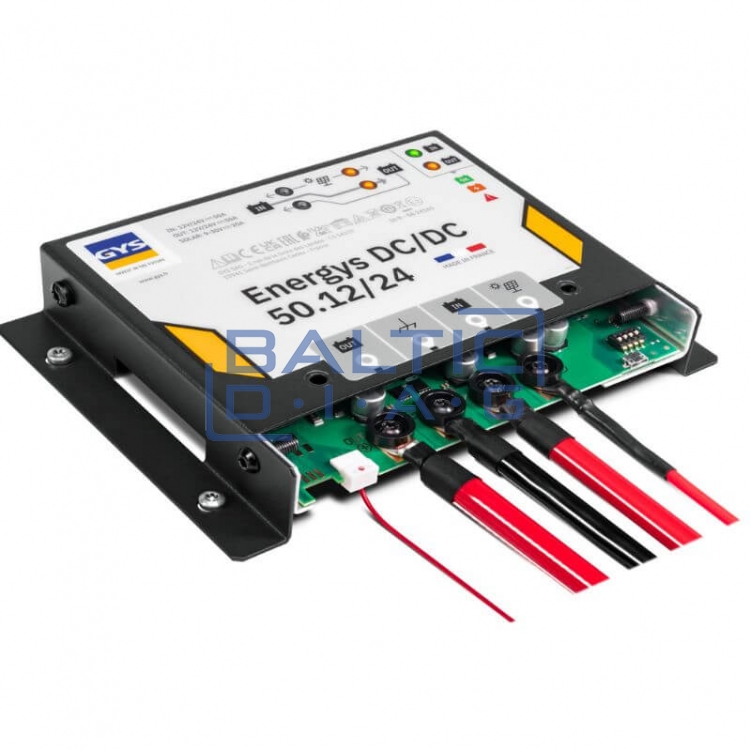

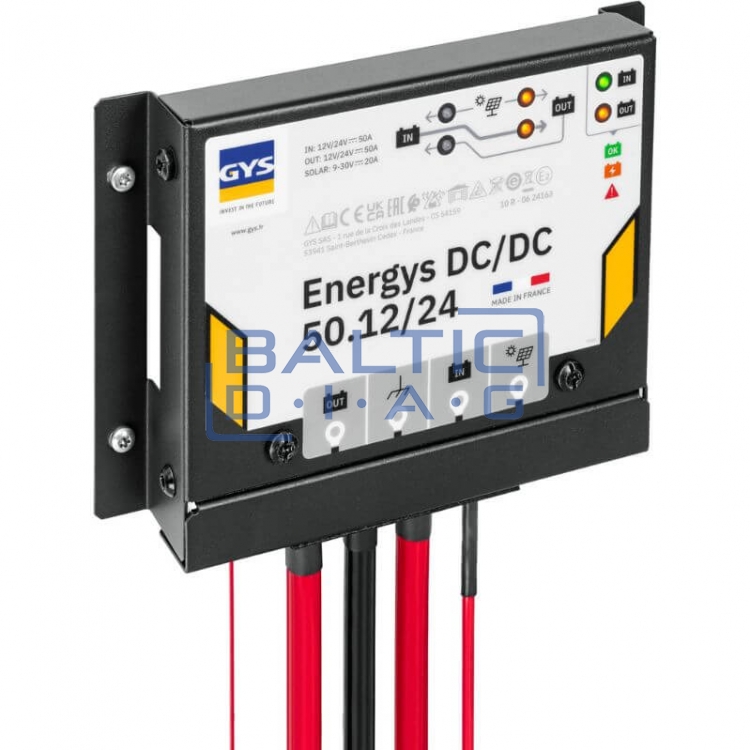

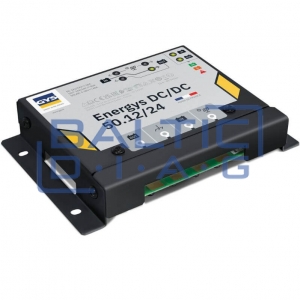

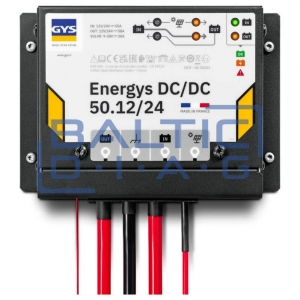

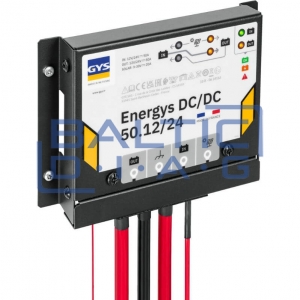

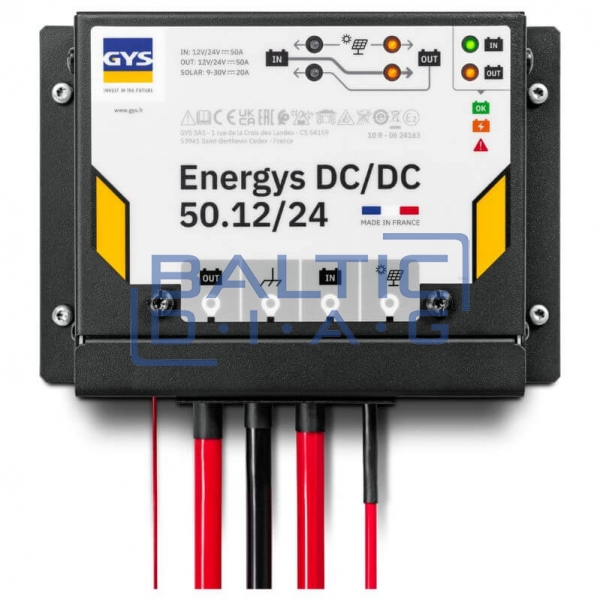

DC/DC frequency converter energys DC/DC 50.12/24

DC/DC Frequency Converter Energys DC/DC 50.12/24

Country of Origin: France, warranty period - 24 months

The Energys DC/DC 50.12/24 is a converter designed for dual battery systems, ensuring optimal charging of auxiliary and starter batteries during vehicle operation. It enables the use of both the vehicle's alternator and solar panels, maintaining continuous power supply even under challenging conditions. Additionally, the device helps protect batteries during storage, includes battery isolation, functions as a voltage stabilizer, and, when combined with a solar regulator, ensures energy autonomy for long journeys.

Functions:

• Automatic 12V/24V detection – the converter automatically detects the appropriate battery voltage
• 100% charging in any situation – ensures maximum battery charge even with long cable distances
• Proper energy distribution between the main and auxiliary batteries
• Integrated MPPT solar charger – allows the use of solar panels for energy supply
• Protects vehicle onboard electronics from polarity reversal, short circuits, voltage fluctuations, and surges
• Bypass function – prevents unnecessary battery charging if the alternator is already fully charged
• Ensures stable power supply – protects sensitive electronic systems in the vehicle
• Quiet and compact design – allows for easy installation anywhere in the vehicle

INNOVATIVE ENERGY SOLUTION MEETING CURRENT MARKET REQUIREMENTS

Compatible with "smart" alternators

• The ENERGYS DC/DC ensures that the auxiliary battery is fully charged, even in vehicles equipped with next-generation alternators that comply with EURO 6 emissions regulations.

Focus on clean energy

• The ENERGYS DC/DC features an integrated MPPT controller, ensuring maximum energy extraction from solar panels, regardless of sunlight intensity. It prioritizes renewable energy sources to charge the batteries, reducing the alternator's workload.
• No need for an external solar controller.

Winter Storage Function ("Overwintering")

• This function maintains the charge of the starter battery by using a minimal amount of energy from the auxiliary battery, ensuring the starter battery does not discharge while the vehicle is stationary.
• No need for a second charger for the starter battery during storage.

SAFE AND DISCREET INSTALLATION

• Separates the two batteries to prevent mutual discharge
• Protects vehicle electronics with built-in safeguards against polarity reversal, short circuits, voltage spikes, and overvoltage
• Integrated temperature sensor protects internal electronics from overheating
• Ultra-silent and compact: Fanless design ensures space efficiency and noise reduction, contributing to a comfortable environment for passengers

Technical Specifications:

• Input voltage: 12/24V
• Output voltage: 12/24V
• Input current: max 50A
• Output current: max 50A
• Solar input (MPPT regulator): 9-30V
• Efficiency: >98%
• Ripple (voltage fluctuations): <2.5mV
• Dimensions: 135 x 35 x 200 mm
• Weight: 700 g
• Protection class: IP67
