Compact shock absorber, chassis test bench up to 3.5 tons Unimetal TUZ-2-C

The price is for the stand only, excluding the concreting frame, installation work, and wireless control panel.

SKU: BD04108
SKU:: TUZ-2-C

6,171.00 €

UNIMETAL

Prices shown include tax

Add to Cart

Send Message

Description

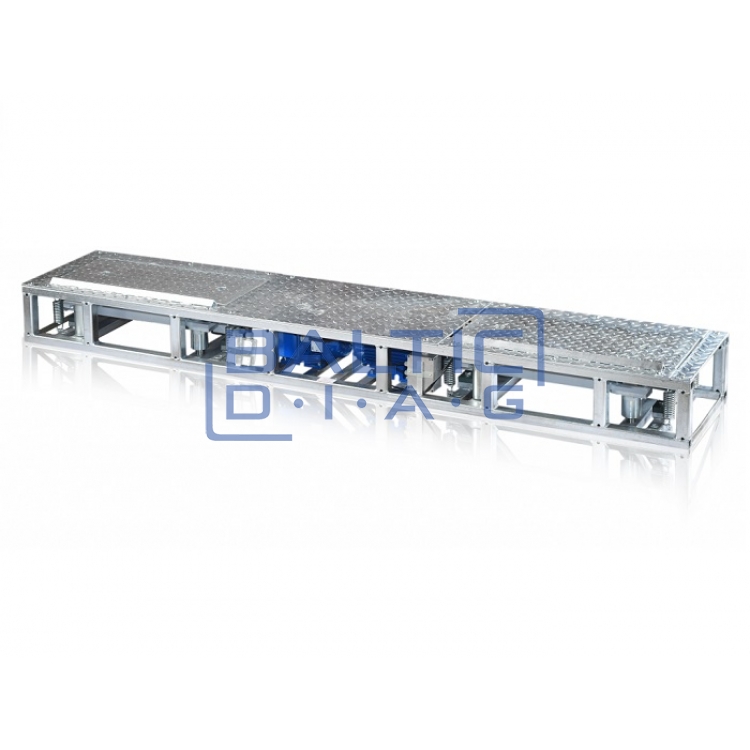

Compact Shock Absorber and Suspension Testing Stand up to 3.5 Tons Unimetal TUZ-2-C

Country of origin: Poland, warranty period – 24 months

The Unimetal TUZ-2-C is a compact and precise suspension and shock absorber testing stand designed for the technical inspection of light vehicles. The stand is based on the EUSAMA method, which allows for accurate assessment of shock absorber performance and the condition of suspension components. The device is capable of detecting looseness and knocking in the suspension system, while plastic covers protect the measuring plates from dirt and moisture. Thanks to the option of in-ground installation with a dedicated frame structure, the TUZ-2-C is especially suitable for use in vehicle inspection stations and workshops with limited space.

Features:

Reliable shock absorber efficiency diagnostics based on the EUSAMA method
Suitable for detecting looseness and knocking in the suspension
Plastic covers protect measuring plates from environmental elements
Compact design – easily integrated into existing inspection setups
Can be installed in-ground using a frame structure

Technical Specifications:

Maximum axle load during measurement: 2 tons
Maximum axle load when driving over: up to 18 tons
Vibration amplitude: 6 mm
Vibration frequency: 0–24 Hz
Track width: 800–2200 mm
Measurement method: based on the EUSAMA standard
Measuring plate protection: plastic covers

Optional Equipment:

Function for detecting suspension knocking and looseness (compatible with shock absorber testing stands)
Frame structure for in-ground installation (TUZ-2-C model)
