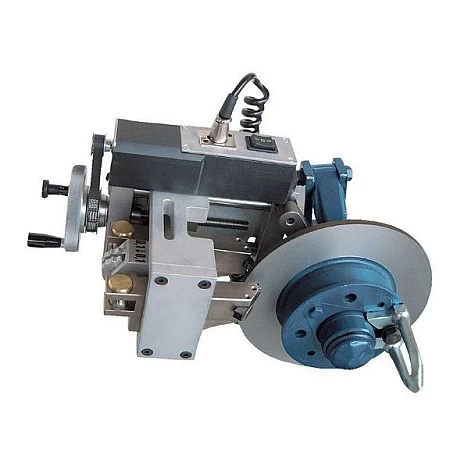

Comec TD302 brake lathe
Comec TD302 brake lathe

Comec TD302 brake lathe

  • SKU: BD13980
5,384.50 €

Prices shown include tax

Send Message


Comec TD302 brake lathe

Brand Italy, Warranty 2 years


The development of the TD302 lathe stemmed from the need to upgrade the brake discs directly on the car. These machines are used when the disc removal and loading operations are too complicated, such as in the case of off-road vehicles or the pulsation of the brake pedal, which is due to the increasing phenomenon of wheel wobbling. High accuracy is ensured by keeping the disc and brake caliper aligned and using the same holes and contact surface. The reduced weight and dimensions of the device ensure convenience and practical use.

In addition, separate adjustment tools, automatic two-way feed, electric brake and full standard equipment make these machines extremely fast and versatile for use with a wide range of cars.

Standard equipment:

- Power supply in both directions (12V DC)

- Electric brake

- Power cord

- Clamp set

- Right side knife holder

- Left-hand knife holder

- Housing

- Wrench set

- Instructions


- Working stroke: 90 mm

- Rotor thickness: 5 ÷ 40 mm

- Feed speed: 15 mm / min

- Feed motor: 12V

- Feed motor weight: 8.5 kg

- Disc speed: 95 rpm

- Engine: 0.37 kW (0.5 hp)

- Weight: 42 kg
