Combined Grinding Machine 3in1
Country of origin: Netherlands, warranty period – 24 months

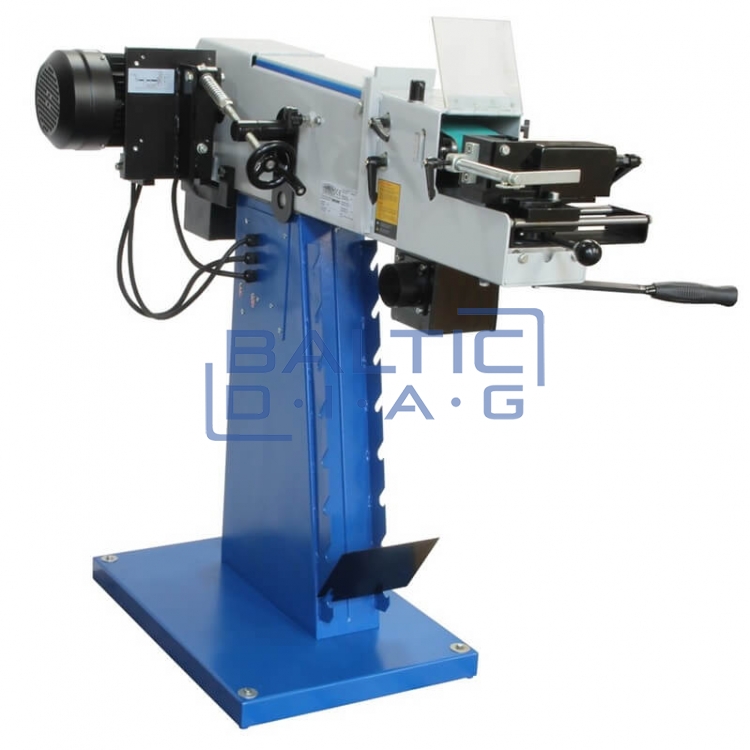

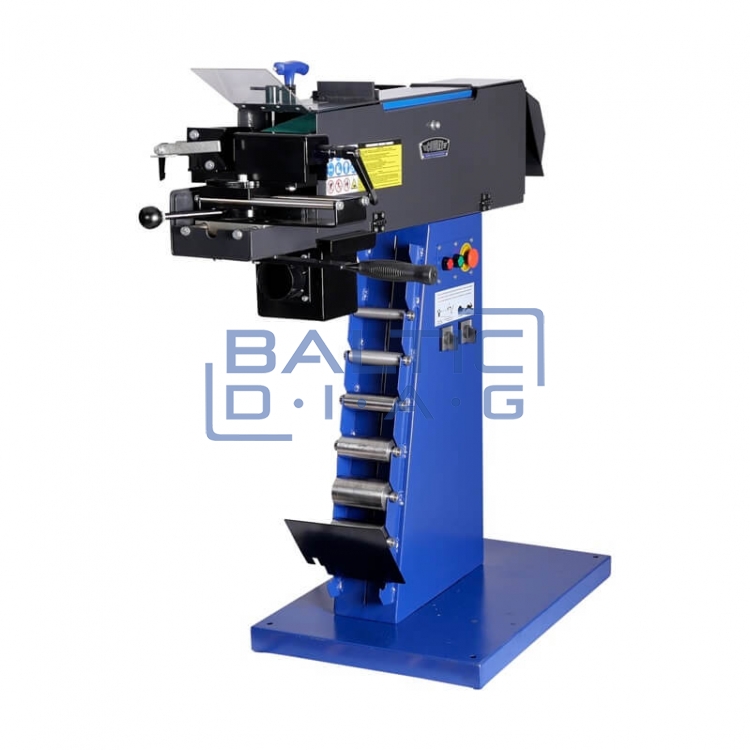

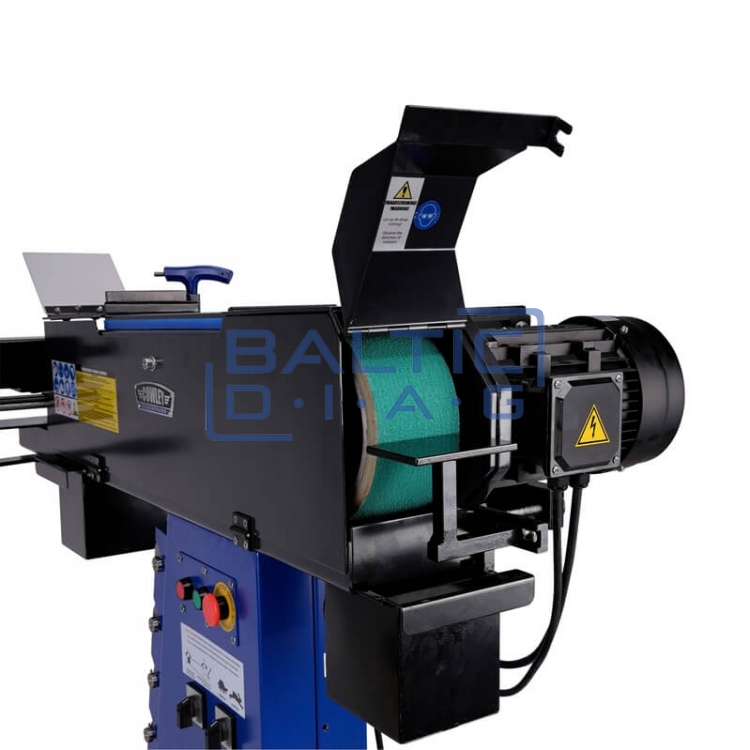

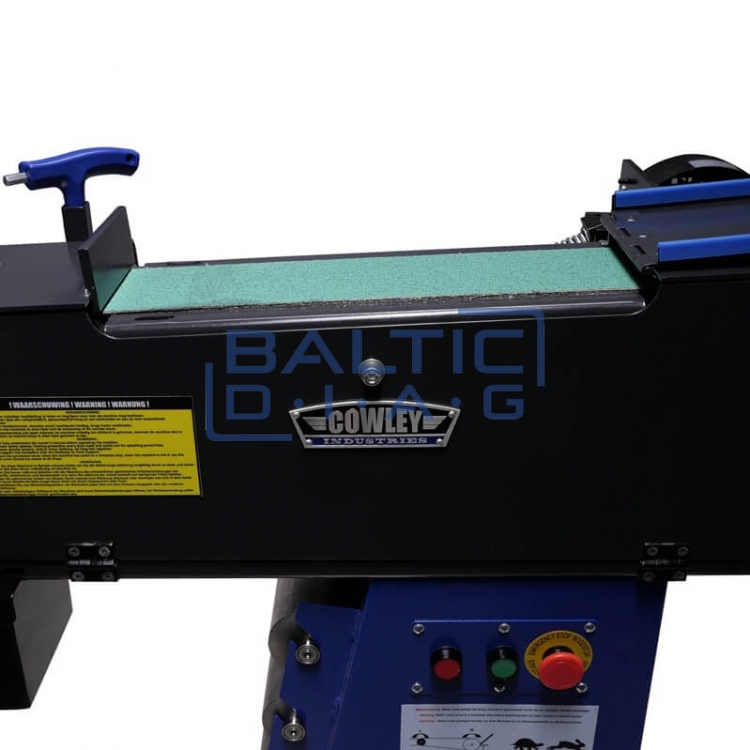

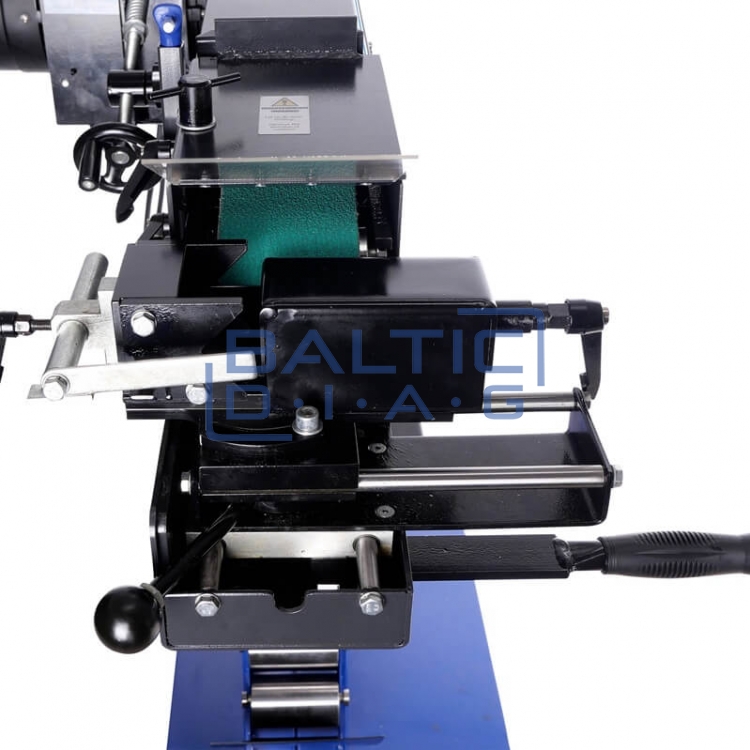

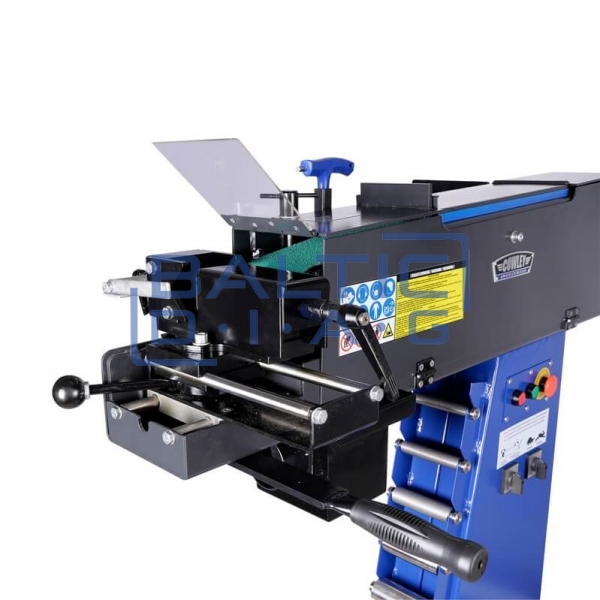

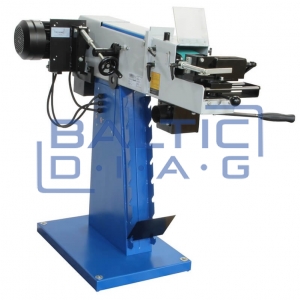

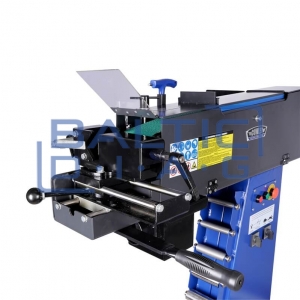

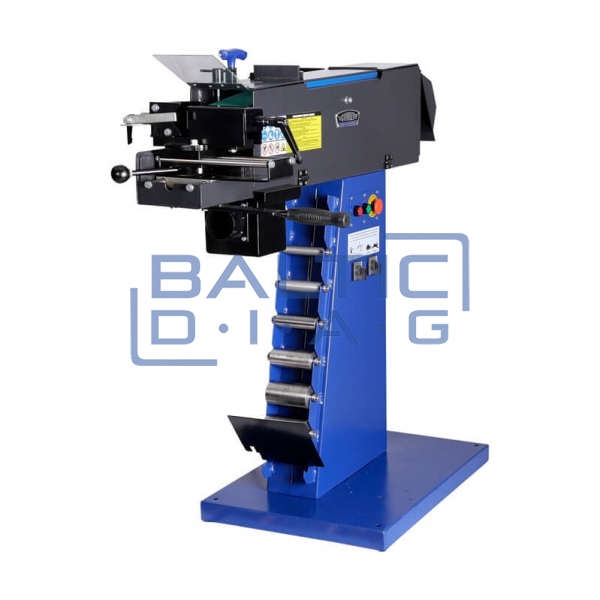

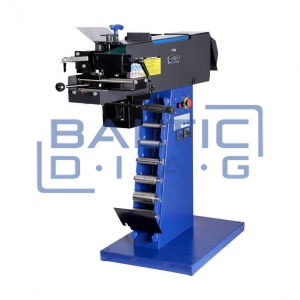

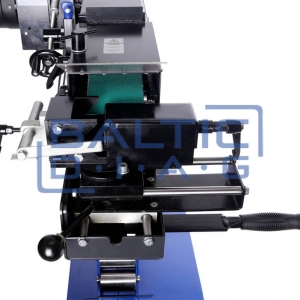

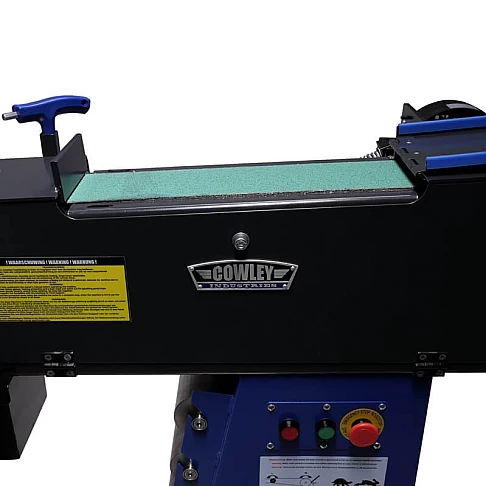

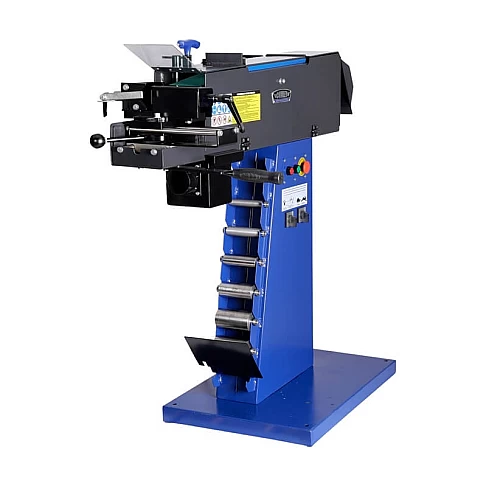

The Cowley Combined Grinding Machine 3in1 is a multifunctional device designed for grinding pipe ends and profiles, surface grinding, and round grinding of workpieces. Grinding operations are performed at different parts of the machine: pipe grinding at the front, surface grinding at the top, and round grinding at the rear. The grinding angle is adjustable between 30° and 90° and includes an integrated depth stop. The powerful electric motor allows operation at two different speeds. This machine is ideal for grinding steel, stainless steel, and non-ferrous metals. Sanding belts and rollers can be replaced quickly and easily. It can also be connected to a dust extraction system.

Features:
  • Adjustable grinding angle from 30° to 90°
  • Separate emergency stop button and separate start/stop button
  • Includes 7 grinding rollers:
  • Ø18 mm – ¾''
  • Ø23 mm – 1''
  • Ø30 mm – 1¼''
  • Ø38 mm – 1½''
  • Ø48 mm – 2''
  • Ø63 mm – 2½''
  • Ø74 mm – 3''
  • Two working speeds
  • Can be connected to a dust extraction system
  • Easy replacement of sanding belts and grinding rollers
  • Supplied with 1 sanding belt 100 × 2000 mm (grit K36)
Technical Specifications:
  • Power supply: 400V / 50Hz
  • Motor power: 2.5 / 3.3 kW
  • Motor speed: 1400 / 2800 rpm
  • Belt speed: 23.5 / 47 m/s
  • Sandable diameter: 20–76 mm
  • Adjustable grinding angle: 30°–90°
  • Belt dimensions: 100 × 2000 mm
Product Dimensions:
  • Length: 1340 mm
  • Width: 700 mm
  • Height: 1210 mm
  • Weight: 159.0 kg
Packaging Dimensions:
  • Length: 1330 mm
  • Width: 730 mm
  • Height: 640 mm
  • Weight: 197.0 kg
