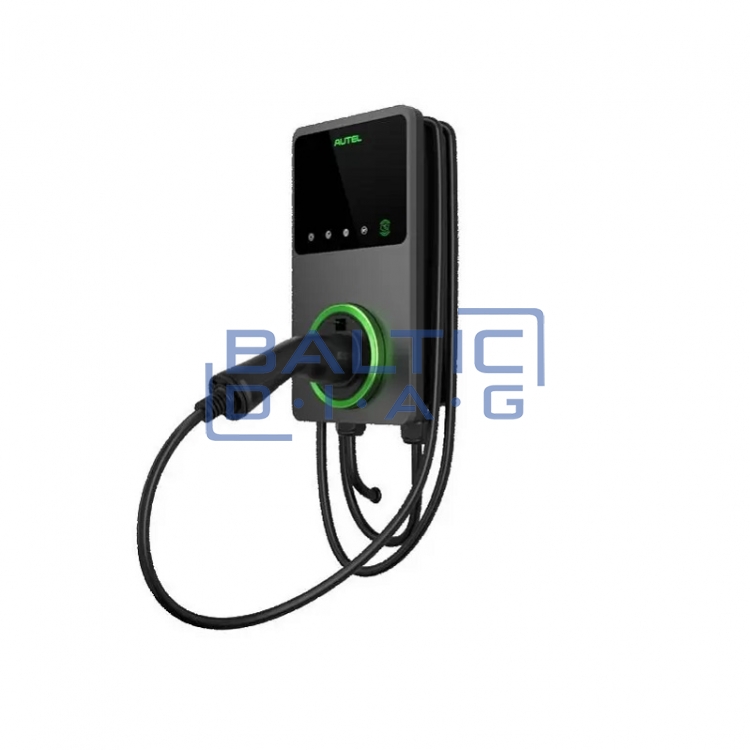

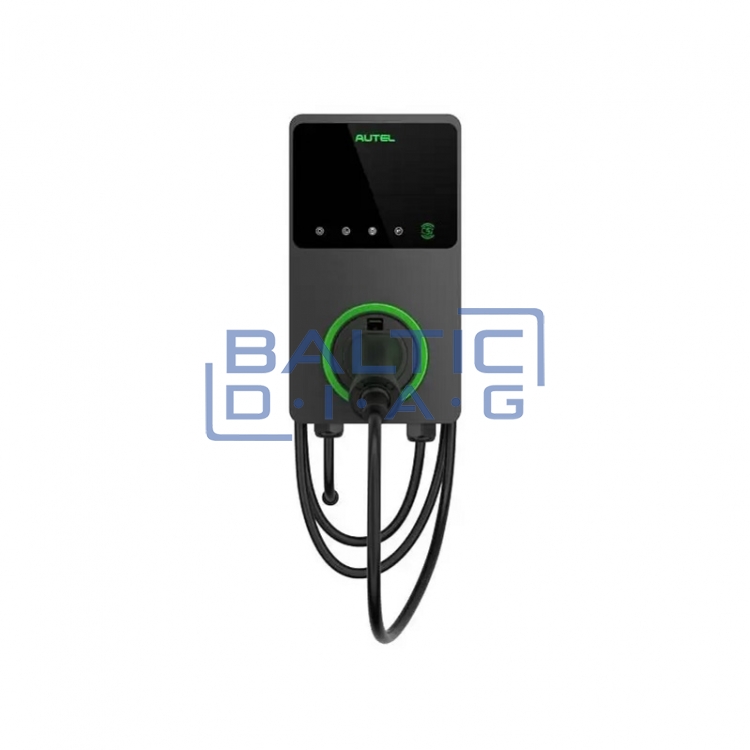

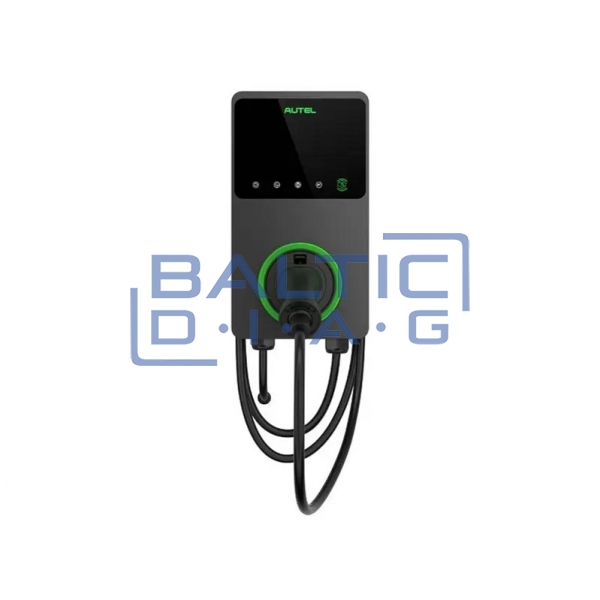

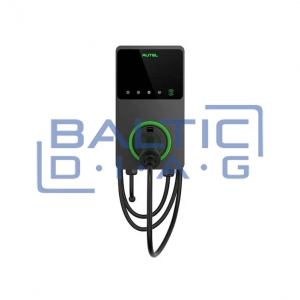

Charging station Autel MaxiCharger AC Wallbox 7kW, 32A, Type 2, 1-phase (Dark gray color)

Charging station Autel MaxiCharger AC Wallbox 7kW, 32A, Type 2, 1-phase

Manufacturer Autel, warranty period - 24 months

The latest Autel MaxiCharger AC Wallbox models specifically designed for both business and personal use. The EV Charger can be operated with a special mobile application - simple, intuitive and convenient. For everyday use Mode-3 with built-in Type-2 charging cables.

• Applicability: for residential houses, corporate parking areas, car repair shops, supermarket sites
• Highest safety - the world's first triple protection technology, safe charging
• High reliability - IP65 protection, suitable for all weather conditions
• Durability - intelligent battery diagnostic technology, longer battery life
• Extreme convenience - easy to install and maintain
• Advanced battery diagnostic technology
• Includes all charging standards
• Built-in overload safety
• IP65 protection against water and dust
• Remote software update and troubleshooting
• Compatible with every electric vehicle
• Weather resistant, perfect for outdoor use
• Connect to the MaxiCharge Mobile App, monitor, manage and optimize your EV Charger anywhere, anytime

Technical data:

• Charging mode: Mode 3, Type 2
• Power: 7 kW
• Current: 32 A
• Frequency: 50 Hz
• Voltage: 230V ± 15%, 1P + N + PE
• Network type: TT, TN
• RCD: AC 30mA, DC 6mA
• RCBO: External Type A RCBO
• Protection: overcurrent, overvoltage, voltage drop, voltage surge
• Cable length: 5 m / 7.5 m (optional)
• IP and IK classification: housing IP65, base IP54; IK08
• Max. working height: 2000 m
• Operating temperature: -40 ° C ~ +55 ° C
• Storage temperatures: -40 ° C ~ +85 ° C
• Mounting: on the wall or on the floor with a stand
• Weight: 3600 kg
• Dimensions: 336 × 187 × 85 mm
• Status indication: LED / APP / LCD (next EV station)
• User Interface: Autel Charger APP
• Connections: Bluetooth, Wi-Fi, Ethernet
• Communication protocols: OCPP 1.6J
• User authentication: program, RFID card, QR code
• Safety standards: IEC / EN 61851-1, EN 62311, EN 62479, IEC / EN 62955
• Certificates: CE, TUV
• Warranty: 24 months
