Centrifugal fan for extraction systems for smoke and exhaust gas removal GSA 0.5 WORKY

Centrifugal fan for extraction systems for smoke and exhaust gas removal GSA 0.5 WORKY

Country of origin: Italy, warranty period – 24 months

The GSA 0.5 model centrifugal fan with direct motor drive, inlet/outlet connections, and support feet is designed for the removal of smoke and exhaust gases from automotive workshops or industrial facilities. The fan is made of durable sheet steel and coated with epoxy powder paint to ensure corrosion resistance. Its compact design allows for wall or ceiling installation. It is perfectly suited for use in automotive repair shops where efficient pollutant removal is required.

Features:

• Direct drive electric motor – ensures lower energy loss and quiet operation
• Inlet and outlet flanges – for easy connection to the extraction system
• Mounting feet – suitable for wall or ceiling installation
• Fan designed for smoke and exhaust gas removal
• Can be optionally equipped with thermal protection, control panels, and anti-vibration feet

Technical specifications:

• Model: GSA 0.5
• Inlet/outlet diameter: 125 mm
• Fan power: 0.35 kW
• Fan voltage: 400V/230V (3 phase)
• Motor frequency: 50 Hz
• Speed: 2800 rpm
• Weight: 35 kg

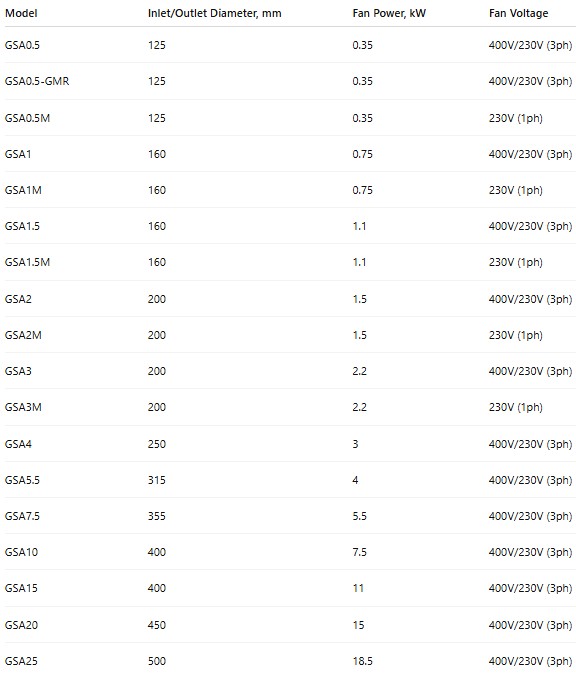

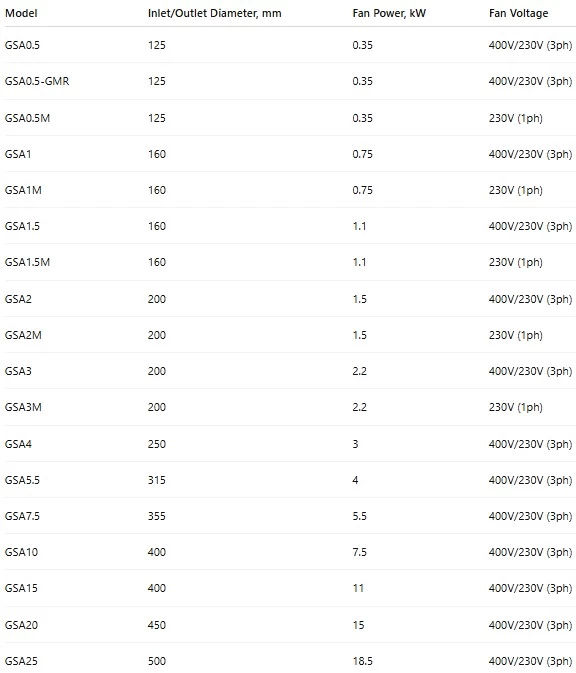

AVAILABLE MODELS:
