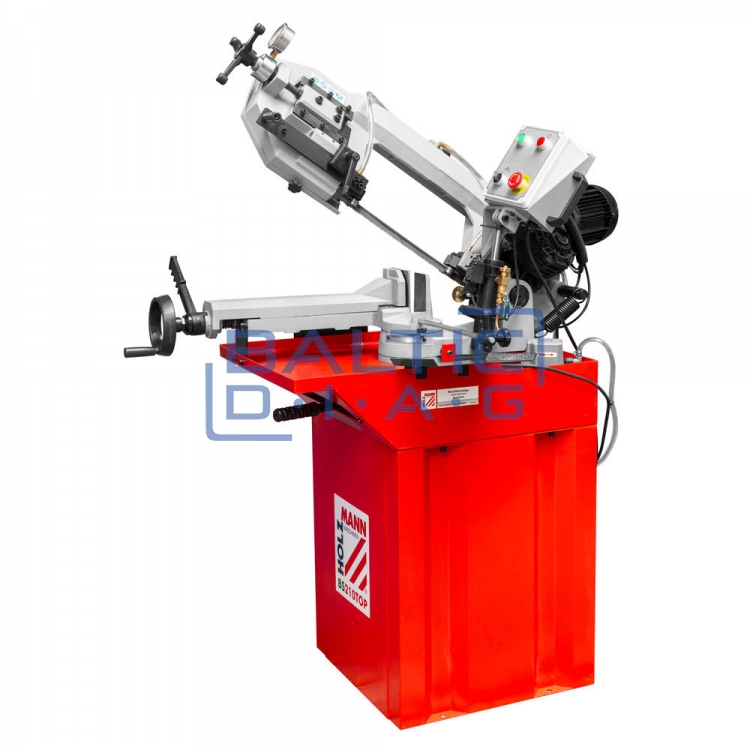

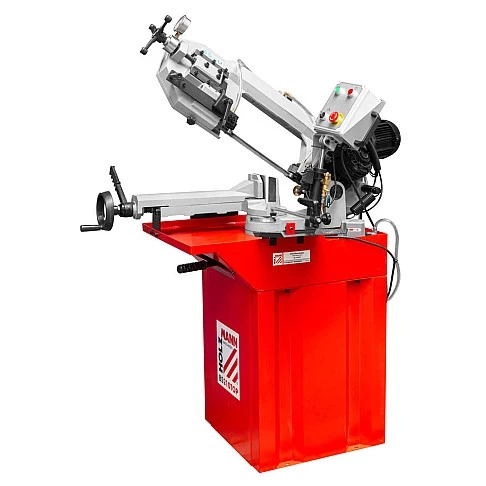

Band Metal Cutting Machine Holzmann BS210TOP 400V
Country of origin: Austria, warranty period - 24 months

The Holzmann BS210TOP 400V is a reliable and robust band metal cutting machine designed for professional use in various metalworking workshops. This machine ensures high cutting precision and performance, allowing for both straight and angled cuts. Made from high-quality cast iron, it guarantees durability even under intensive use conditions.

Features:
  • Sturdy cast iron construction ensures durability and stability.
  • Powerful motor with a 2-speed gearbox maintains consistent cutting performance.
  • Saw frame rotation up to 60° enables precise angled cuts.
  • A pressure gauge allows accurate adjustment of the saw blade tension.
  • Hydraulic cylinder ensures adjustable downward feed of the saw frame.
  • 5-point ball bearing blade guide guarantees maximum cutting accuracy.
  • Automatic rear stop enhances work safety and convenience.
  • Included equipment: saw blade, stand, workpiece stop, automatic shut-off device, coolant system, and pressure gauge.
Technical specifications:
  • Motor power (S1 mode): 750/950 W
  • Voltage: 400V / 50Hz
  • Table rotation range: up to -45°
  • Cutting capacity (round metal) Ø 45°: 140 mm
  • Cutting capacity (round metal) Ø 60°: 70 mm
  • Cutting capacity (round metal) Ø 90°: 170 mm
  • Cutting capacity (square metal) 45°: 140 x 170 mm
  • Cutting capacity (square metal) 60°: 80 x 60 mm
  • Cutting capacity (square metal) 90°: 180 x 170 mm
  • Saw blade dimensions: 2110 x 20 mm
  • Flywheel diameter: 260 mm
  • Saw blade speed: 65 m/min
  • Machine weight: 145 kg
  • Total weight with packaging: 173 kg
  • Packaging dimensions: 560 x 1150 x 930 mm
