Autool CT500 GDI EFI FEI petrol injector testing and washing device

Autool CT500 GDI EFI FEI petrol injector testing and washing device

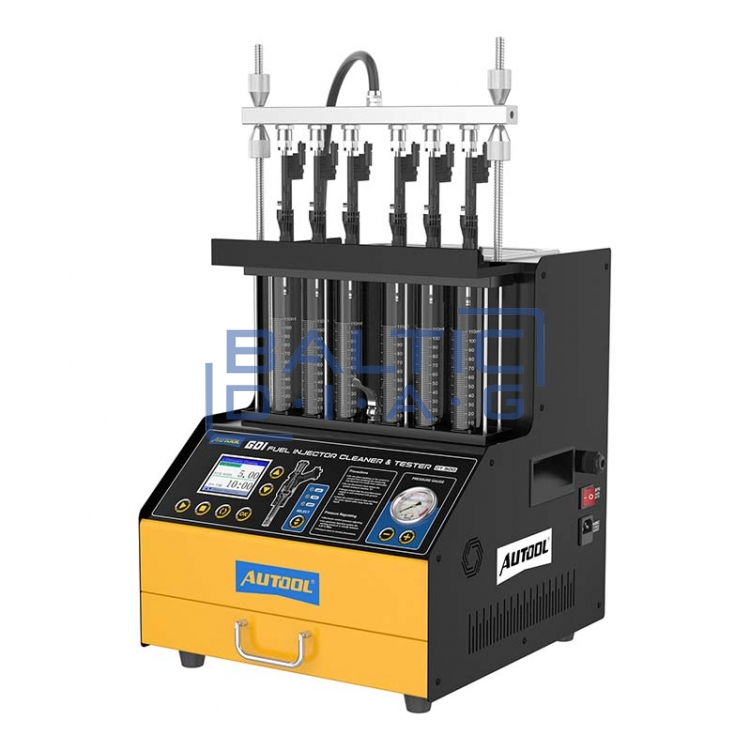

The Autool CT500 fuel injector inspection and washing device simulates various internal combustion engine working conditions and has the ability to check fuel injectors of various cars or motorcycles and, if necessary, wash them using an ultrasonic bath. This multi-functional injector tester is very popular in car and motorcycle workshops, repair shops and educational institutions.

Features:

• Extensive list of supported nozzles
• Nozzle inspection and testing function
• Option to choose different voltages for nozzle testing
• Powerful ultrasonic cleaning
• Design of 6 test tanks and 2 discharge channels
• Complete with a variety of nozzles and a pull-out drawer for them
• Unique design
• Long warranty period

Functions:

• Ultrasonic cleaning
• Idling test (0 - 20 ms)
• Medium RPM Testing (0 - 7.5ms)
• High speed testing (0 - 4 ms)
• Acceleration testing
• Variable speed testing
• Leakage testing
• Checking the sprayability of free revolutions
• Checking the sprayability of medium revolutions
• High RPM sprayability check
• Traffic balance check
• Possibility to inspect the shape and condition of the fuel injector
• Backwashing
• Leak testing
• Cleaning without removing components

Technical parameters:

• Supply voltage: 230 V ±10%
• Cleaning liquid capacity: 2000 ml
• The number of simulated revolutions: 0 ~ 7500 rpm
• Spray time range: 0 ~ 9900 times
• PWM pulse width: 0~40ms, lifting value 0.1ms
• System pressure: 0~0.8MPa
• Time setting: 0 ~ 10 min
• Ultrasonic cleaning power: 70 W
• Ambient temperature: 0 °C ~ +40 °C
• Operating ambient humidity: <85%

Important information:

• Use only professional, high-quality cleaning fluid in this device
• Use only professional, high quality testing fluid. Do not use cleaning fluid for testing as it may damage various components of the device.
• When using the ultrasonic cleaning function, add cleaning fluid to the cleaning tub before starting the equipment.

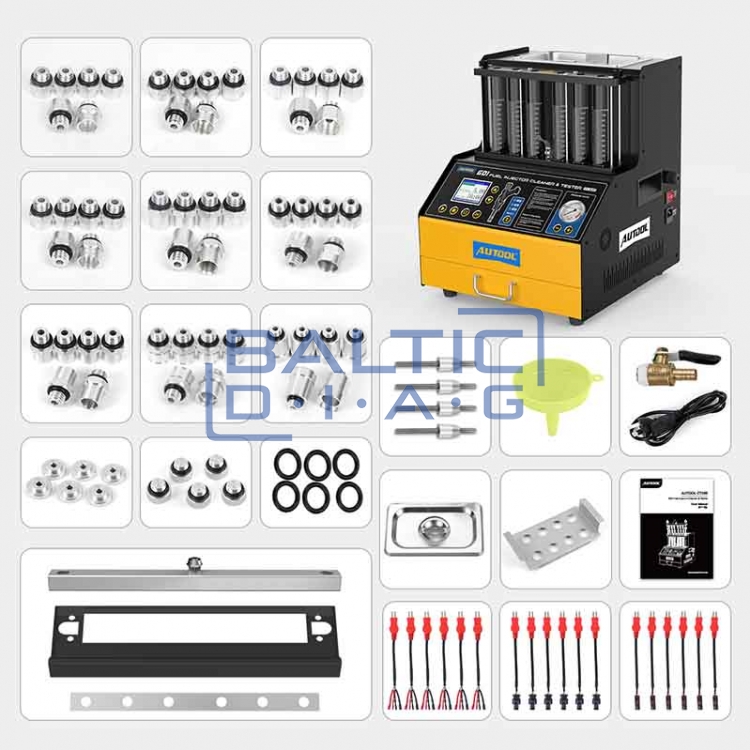

Complete set:

• Autool CT500 device
• Cleaning fluid drain valve
• Ultrasonic bath cover
• Test oil accumulator
• Nozzle pads x 6 pcs.
• Sealing rings x 6 pcs.
• Oil battery plugs x 5 pcs.
• Funnel
• Fixing screws x 4 pcs.
• Ultrasonic cleaning holders x 4 pcs.
• Impulse signal cable
• Power supply cord
• Spec. connection wires x 6 pcs.
• 11 mm bits x 6 pcs.
• 12 mm bits x 6 pcs.
• 12.5 mm tips x 6 pcs.
• 13 mm bits x 6 pcs.
• 13.6 mm tips x 6 pcs.
• 14 mm bits x 6 pcs.
• 15 mm tips x 6 pcs.
• 15.8 mm tips x 6 pcs.
• Spec. nozzles for BMW injectors x 6 pcs.
• User manual
