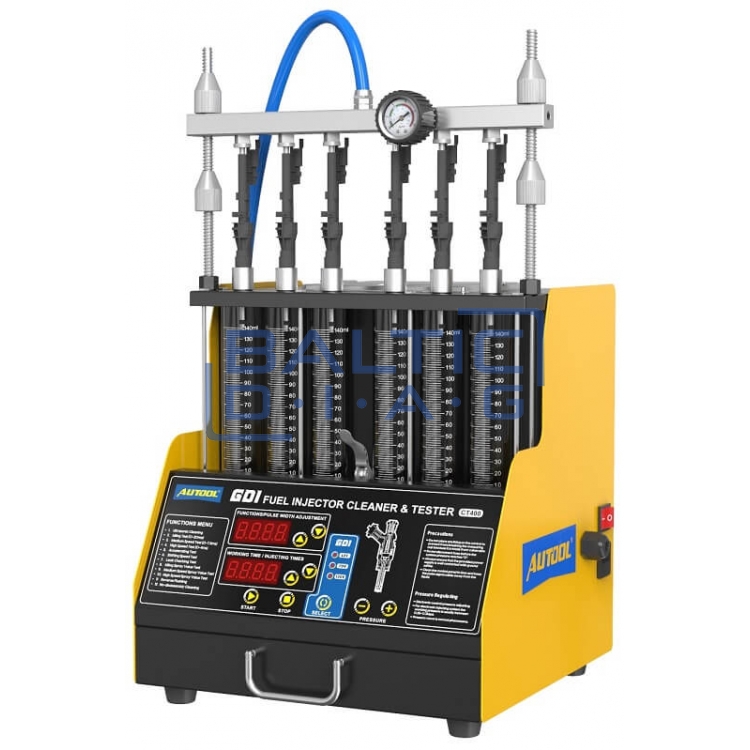

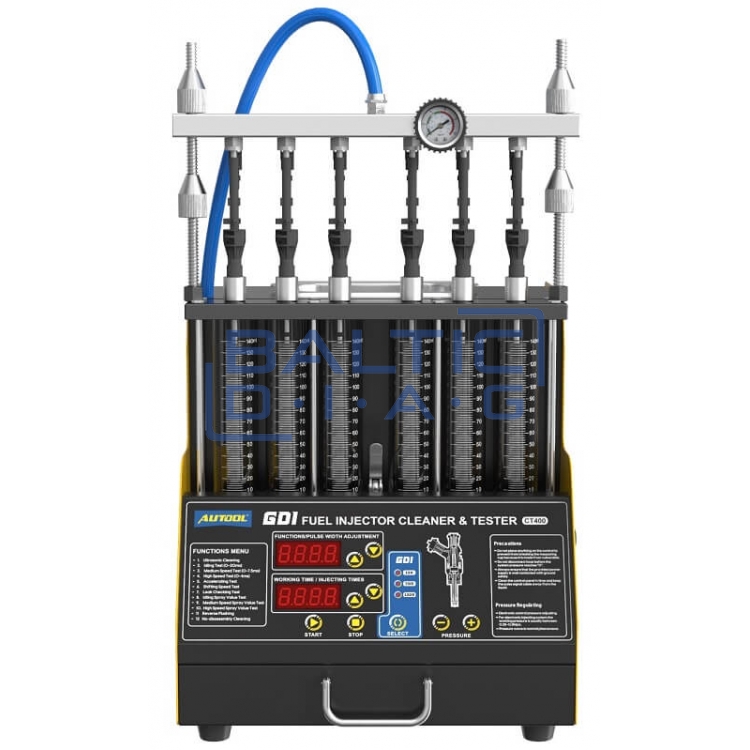

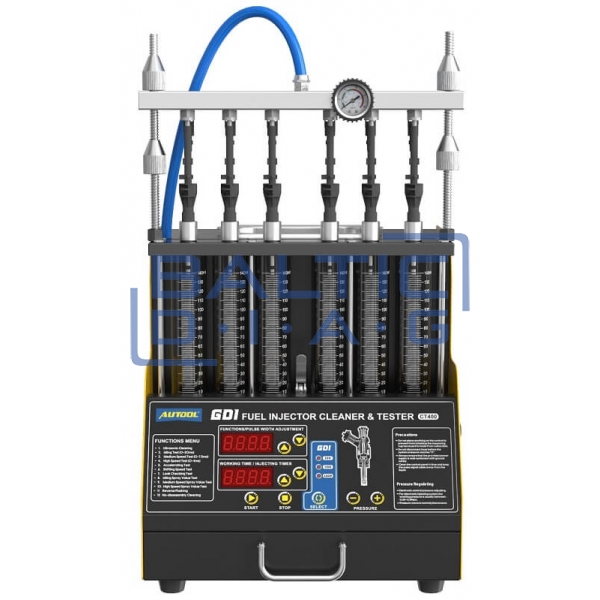

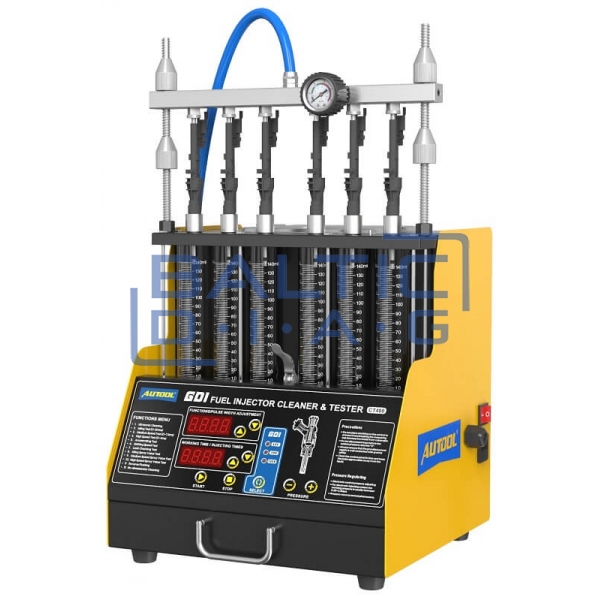

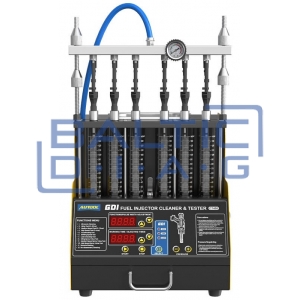

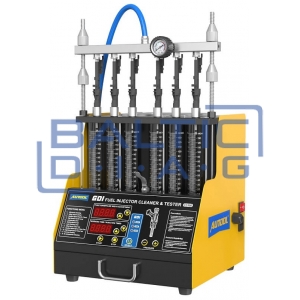

Autool CT400 GTI petrol injectors testing and washing device

Autool CT400 GTI petrol injectors testing and washing device

Manufacturer: Autool

Autool CT400 GTI petrol injector testing and washing machine is a good choice if you want to have an efficient injector testing machine with wide applicability. This model has the latest design GDI injector support system. This device can not only be used to check and clean standard gasoline injectors, but can be compatible with GDI injectors, including compatibility with Benz, BMW, Audi, Porsche cars. It can generate different voltages for testing GDI injectors, giving it the ability to adapt to different types of injectors. This device is very useful in many automotive service and maintenance centers and research and training departments.

Using this equipment you will be able to test and clean the petrol injectors of the following cars and motorcycles:

Audi, Australia d, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Dacia, Dadi, Daewo, Daihatsu, Demo, Fiat, d, GM, Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubish, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha.

CT series devices:

• Effectively cleans gasoline injectors
• Helps restore power and improve fuel economy
• Helps to improve idle speed and increases response to the accelerator pedal
• Helps eliminate unwanted jerking or stalling associated with stuck injectors
• Helps to see the working condition of individual injectors
• This usually avoids the expensive cost of replacing injectors, especially GDI injectors

Advantages of the Autool CT400 GDI injector testing and washing machine:

• The device can test not only standard gasoline injectors, but also GDI direct injection injectors, which are used in cars such as Mercedes-Benz, BMW, Audi, Porsche, Ford or other direct injection cars.
• The Autool CT400 GDI has 6 injector test points to test injectors of different voltages (12V / 70V / 120V). Different voltages can be selected to test nozzles with different parameters
• Improved ultrasonic cleaning system. Unlike other testing and washing devices, Autool CT400 GDI is equipped with a cooling fan and a temperature sensor. And the power of the ultrasonic bath reaching 60W provides a particularly improved cleaning capacity.
• The device is equipped with various injector accessories for various needs. And the drawer installed at the bottom of the device is designed to store various details and to easily access them at the right time.
• The Autool CT400 can test and clean 6 injectors simultaneously for maximum efficiency. It is equipped with control valves for cleaning solution drain and fluid recovery tests. The unit is very easy to maintain, easy to clean and no need to worry about mess.

Testing Features:

• Injector testing, at idle engine speed (0 ~ 20ms)
• Injector testing, at medium engine speed (0 ~ 7.5ms)
• Injector testing, high engine speed (0 ~ 4 ms)
• Testing injectors, during acceleration
• Injector testing, during gear shifting
• Injector tightness testing
• The quantity sprayed by the Injectors at idle engine speed
• The quantity sprayed by the Injectors at average engine speed
• The quantity sprayed by the Injectors at high engine speeds

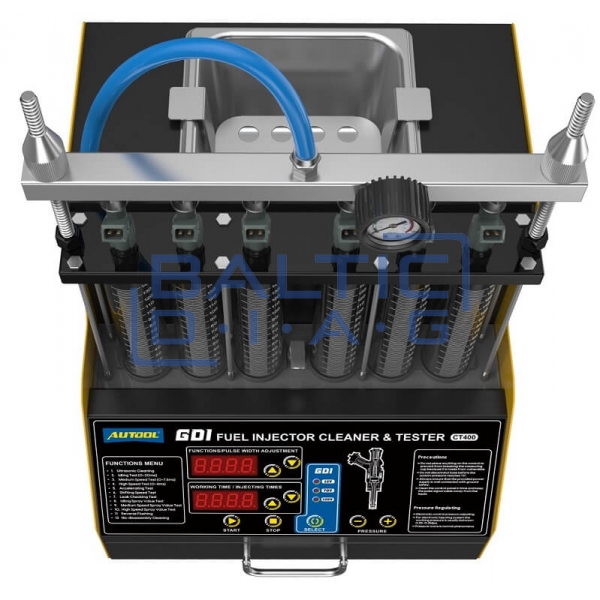

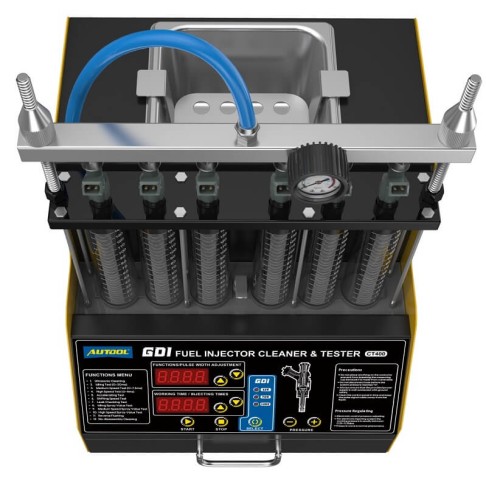

Components that make up the CT400 GDI:

• Test fluid supply hose
• Liquid distributor
• Fixing screws
• Glass flasks
• Drain valve
• Power on
• Power supply socket
• Tool drawer
• Control panel
• Wire of impulse signals
• Liquid capacity meter
• Ultrasonic bath
• Pressure gauge

Technical parameters:

• Supply voltage: 220 V / 50 Hz / 1 phase
• Operating temperature: 0 - +40°C
• External magnetic field strength: <400 A/m
• Test liquid capacity: 1500 ml
• Volume of test flasks: 140 ml
• Simulated engine speed ranges: 0 - 7500 rpm
• Simulated time series: 0 - 9900 generations
• Injector control pulse length: 0~20ms
• System pressure: 0~0.55MPa (adjustable)
• Test time settings: 0 - 20 min
• Ultrasonic cleaning power: 60 W
• Ultrasonic cleaning frequency: 28 kHz +- 0.5 kHz
• Dimensions: 390 x 410 x 430 mm (length x width x height)
• Weight: 16.6 kg

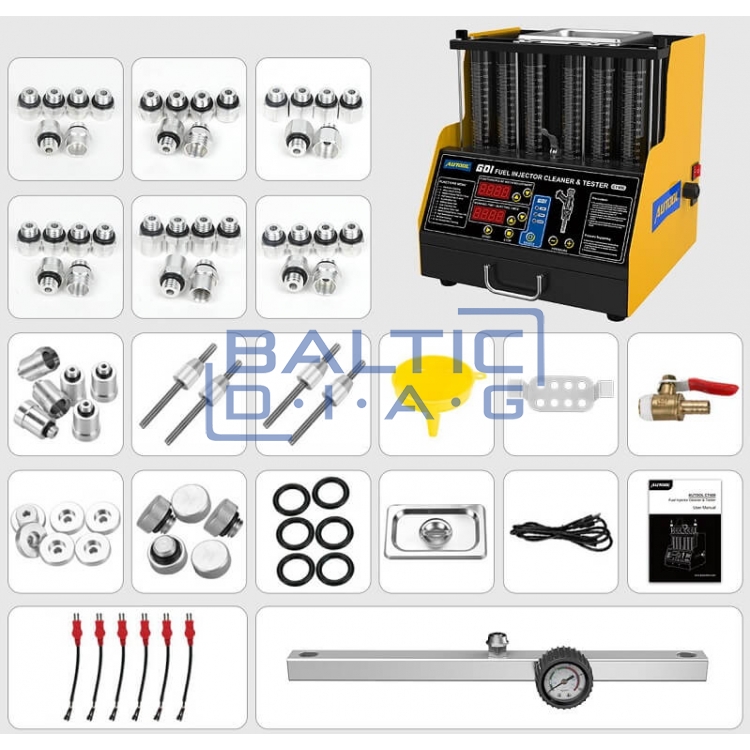

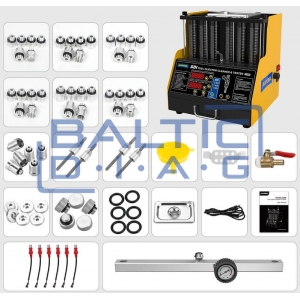

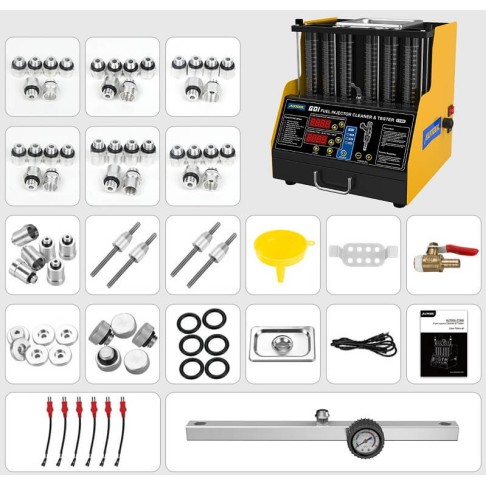

The set includes:

• 1 x Autool CT400 GDI Petrol Injector Tester and Washer
• 6 x taper adapters φ10.5-13.6φ
• 6 x special adapters for BMW injectors
• 1 x special injectors tray
• 5 x connection to test fluid distributor
• 1 x Ultrasonic Bath Cover
• 6 x 16mm adapter
• 6 x injectors Pads
• 1 x test fluid distribution rail
• 6 x adapter cables
• 1 x Power Supply Cables
• 4 x test fluid rail mounting bolts
• 4 x test fluid rail mounting nuts
• 1 x injectors attachment basket for ultrasonic bath
• 1 x filling funnel
• 1 x liquid drain valve
• 6 x 11mm adapter
• 6 x 12mm adapter
• 6 x 12.5mm adapter
• 6 x 13mm adapter
• 6 x 14mm adapter
• 6 x 15mm adapter
• 1 x user manual
