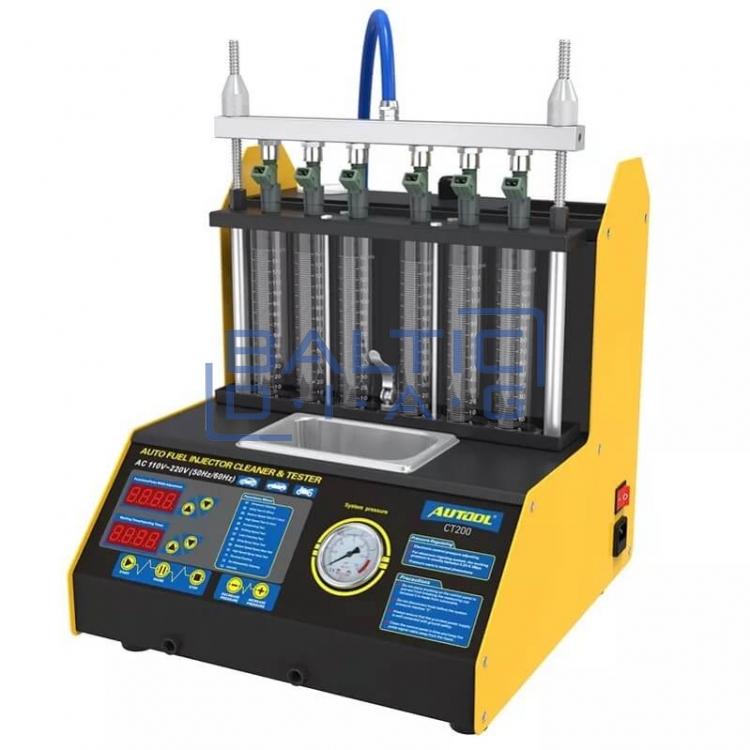

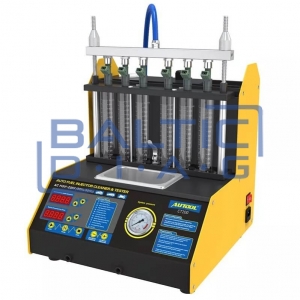

Autool CT200 petrol injectors testing and washing device

Autool CT200 petrol injectors testing and washing device

Manufacturer: Autool

The Autool CT200 injectors testing and washing machine is designed and tuned to work with ultrasonic cleaning technology and a microprocessor that is responsible for all hydraulic testing work. The fuel and oil supply can simulate the low, medium and high operating conditions of an internal combustion engine when cleaning or testing a car's fuel injectors. Ultrasonic cleaning of injectors can clean multiple injectors at the same time, ultrasonic cleaning can effectively and completely remove carbon deposits from injectors.

Using this equipment you will be able to test and clean the petrol injectors of the following cars and motorcycles:

Audi, Australia d, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Dacia, Dadi, Daewo, Daihatsu, Demo, Fiat, d, GM, Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubish, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha.

CT series devices:

• Effectively cleans gasoline injectors
• Helps restore power and improve fuel economy
• Helps to improve idle speed and increases response to the accelerator pedal
• Helps eliminate unwanted jerking or stalling associated with stuck injectors
• Helps to see the working condition of individual injectors

Injector testing and cleaning fluid and precautions:

• The use of corrosive fluids as a fuel testing fluid is prohibited. Corrosive fluids will damage the machine's seals and fuel injectors.
• It is forbidden to use cleaning agents in place of the test liquid. Cleaning agents are usually corrosive and can damage equipment and injectors seals.
• Do not use gasoline as a substitute for cleaning agent or testing fluid. Because gasoline is highly flammable and it can cause great danger to the environment and human health.
• Use absolute ethanol (industrial alcohol) or other non-corrosive liquids as the test fluid. (Usually such liquids are colorless, transparent and without an irritating smell).

Autool CT200 gasoline fuel testing and washing machine with control panel in English. With this device, you will be able to clean and test both gasoline car and motorcycle gasoline fuel injectors (compatible with the following motorcycle manufacturers: Honda, Yamaha, Suzuki, SanYang)

• Ultrasonic cleaning, removal of accumulated dirt
• Checking the nozzle. Simulate engine operating status, check injectors at different speed ranges, its spray capabilities, its condition and function performance: spray, spray angle, spray shape and spray uniformity
• Leakage and clogging check
• Various connectors are uniquely designed to connect different types of injectors
• The reverse washing function, which allows the injectors to be cleaned from the inside, improves the cleaning efficiency
• A set of adapters that will allow you to clean the injectors without removing them from the engine

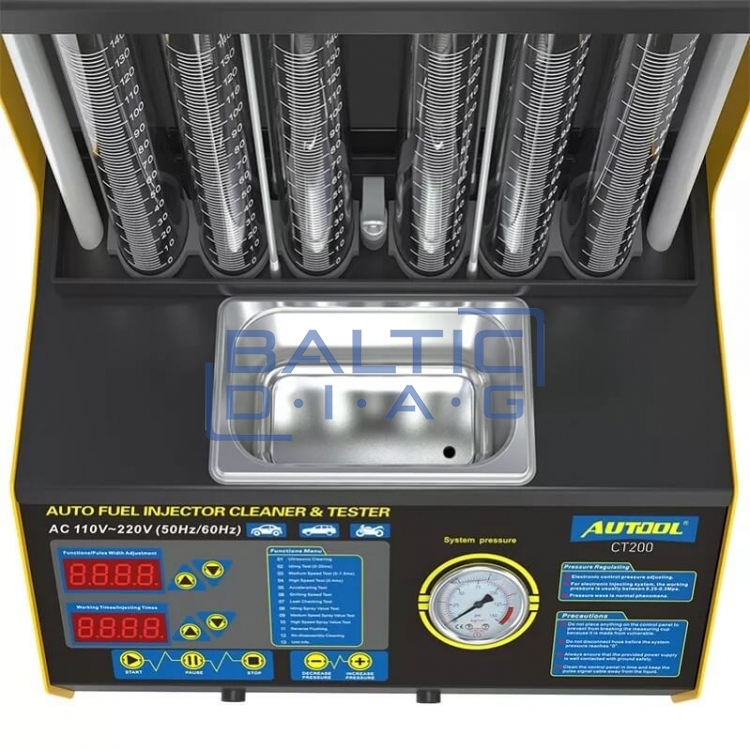

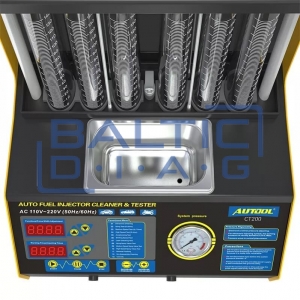

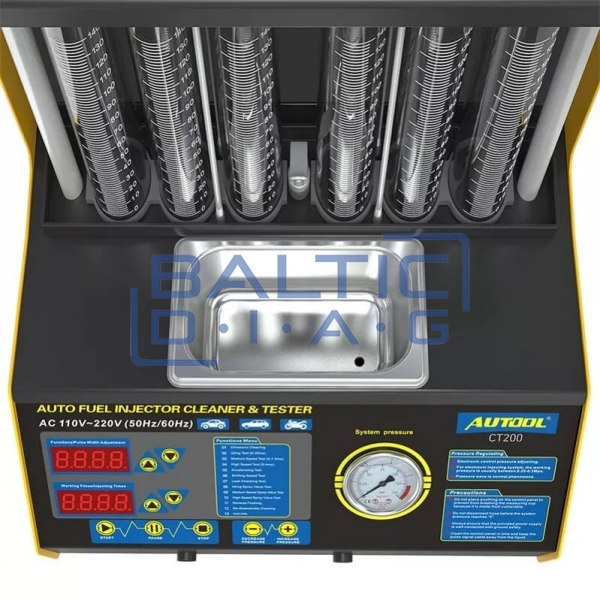

CT200 device components:

• Control panel, English
• Pressure gauge
• Ultrasonic bath
• Power button
• Power supply socket
• Fuel distribution rail
• Measuring flasks
• Fluid level switch
• Fuel distribution rail fastening screws
• Test fluid supply hose

Technical data:

• Supply voltage: 230 V / 50 Hz / 1 phase
• Ultrasonic cleaning power: 70 W
• Ultrasonic cleaning frequency: 28 kHz / +-0.5 kHz
• Device dimensions: 405 x 380 x 432 mm
• Package dimensions: 485 x 465 x 490 mm
• Package weight: 17.89 kg

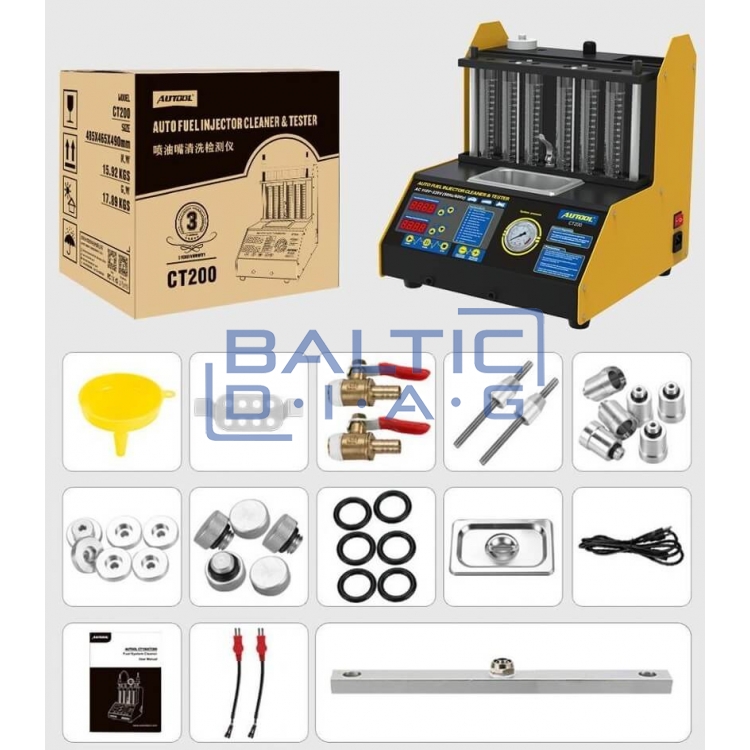

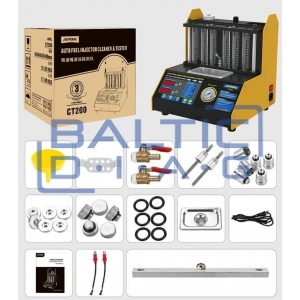

The set includes:

• 1 x Autool CT200 Petrol Injector Tester and Washer
• 2 x valves for draining liquid from the unit
• 6 x Injectors attachments, for cleaning
• 6 x sealing gaskets
• 6 x spacers
• 5 x connectors
• 1 x ultrasonic bath, basket for cleaning nozzles
• 1 x Ultrasonic Bath Cover
• 1 x Power Cable
• 1 x Funnel
• 1 x Oil Filter
• 2 x Injectors control wires
• 2 x fixing screws
• 1 x User manual
