Automotive oscilloscope VATO2004

Oscilloscope for vehicles VATO2004

Manufacturer: Micsig. Warranty: 12 months

Features:

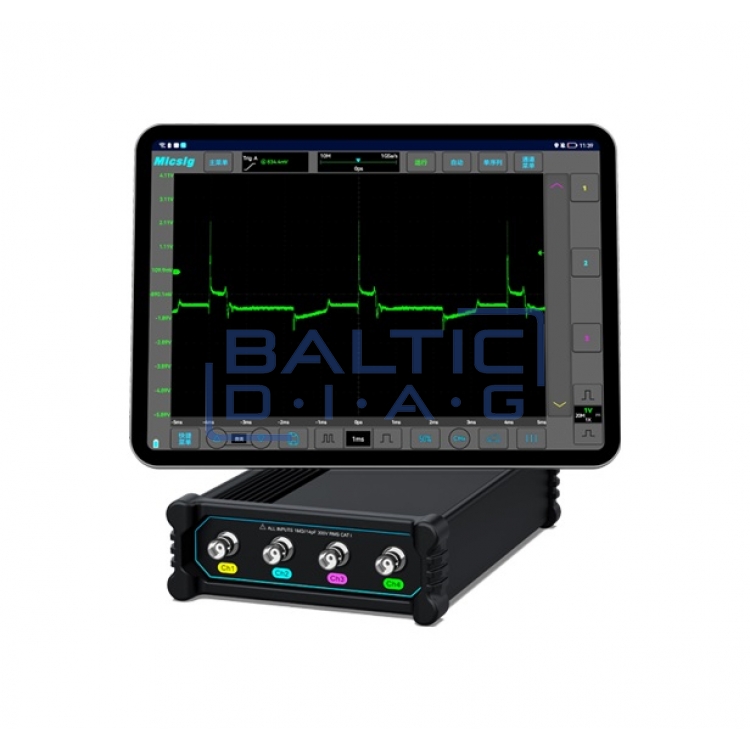

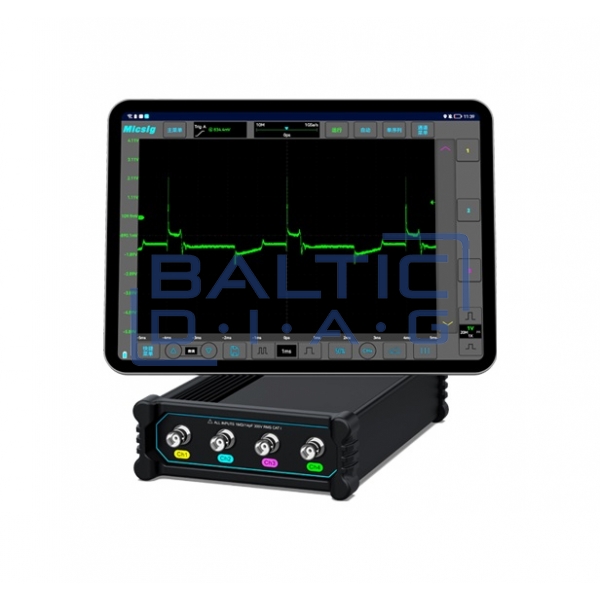

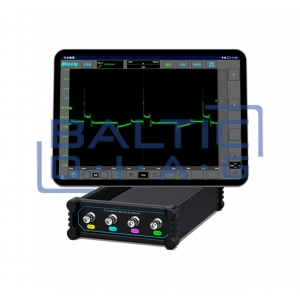

• Mobility and Adaptability - Record and run the oscilloscope application on any Android device. It can be smartphones, tablets, computers with Android application
• Intuitive operation - the device has an operating system installed that is designed for mobile devices, which provides a very simple and reliable use of the equipment
• High-capacity battery - 7500mAh Li-ion battery (optional), provides up to 24 hours of continuous working time
• Capable of charging/starting moment tests - 12V and 24V charging and starting systems are supported. Ability to record charging ripples, starting current and other parameters
• Various sensors check - the ability to check the following sensors: ABS, accelerator pedal, throttle valve, fuel pressure, air flow sensor, crankshaft sensor, camshaft position sensor, detonation knock sensors, MAP sensors, etc.
• Checking of various components - the signal of the components is obtained at the push of a button, and in this way the work is done easily and simply. Compatible with the following components: fuel injectors, their voltages and current, fan control current, variable valve timing, EGR valves, etc.
• Ignition performance check - possibility to perform primary, secondary and combined ignition tests
• Communication, signal scanning - CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay and K line scanning
• Combined testing - the device is equipped with several scanning channels, which allow reading the readings of several components and sensors at the same time and combining them into common results. For example perform a general test of the sensors of the crankshaft and camshafts and the like

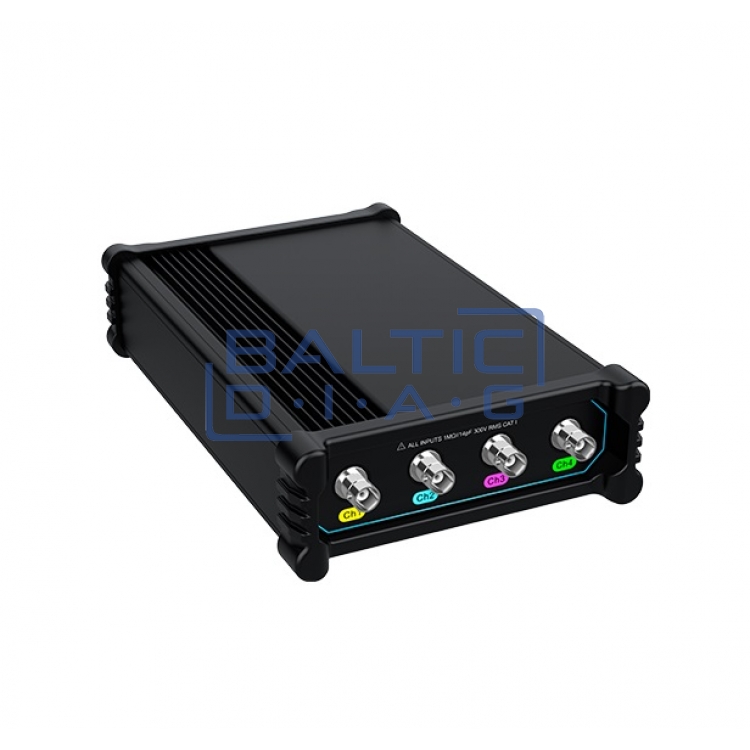

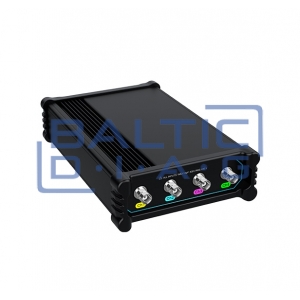

• The device is sold without a display

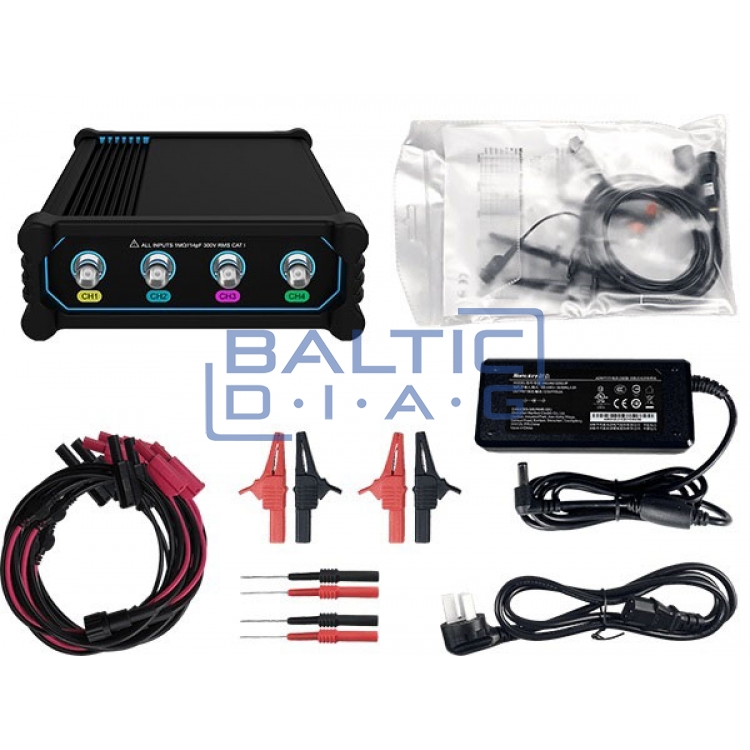

Standard equipment:

• Power cable
• Charger with cable
• Oscilloscope measurement leads
• Connectors - crocodile
• Connectors - needles
• Oscilloscope

Technical data:

• Bandwidth: 200 MHz
• Number of analog input channels: 4 channels
• Rise time: ≤ 1.8ns
• Real-time sampling rate: 1 GSa/s (single channel)
• Memory depth: 50 Mpts (single channel)
• DC gain accuracy: ≤ 2%
• Input independence: 1 MΩ ±1% || 14 pF
• Supported tests: charging/starting current, sensors, components, ignition, communications (CAN L/H, CAN FD, LIN, Flexray, K line), combined checks
• Power input: USB Type C; DC connection
• Dimensions: 140 x 215 x 52 mm
• Weight: 640 g (with battery pack)
• Battery pack: 7.4 V, 7500 mAh, Li-ion battery

Optional extras:

• Suitcase
• Equipment transport bag
