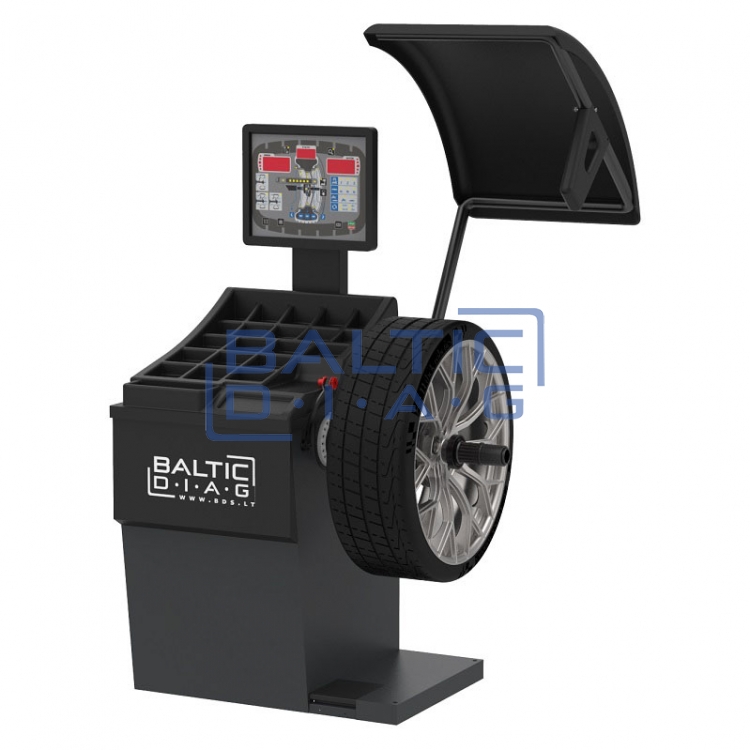

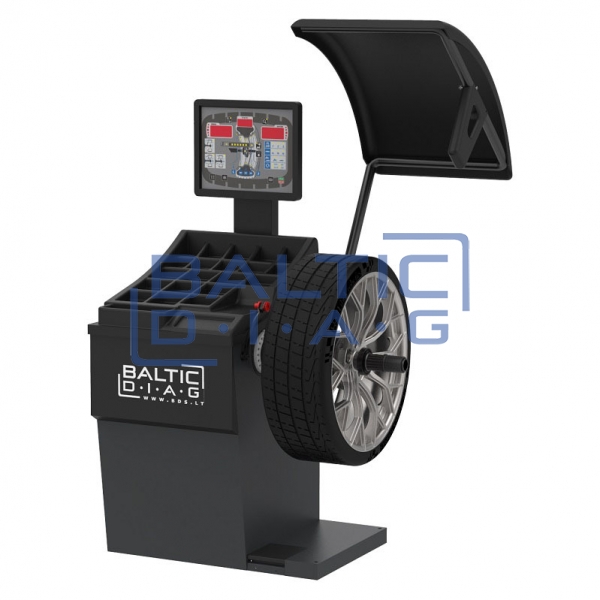

Automatic wheel balancing machine BD-670AL

Automatic wheel balancing machine BD-670AL

Features:

• The exact place of imbalance is determined, the error is less than ± 1g. Also, the machine is equipped with a precise laser, which helps to specify this location with great precision.
• Optimized, automatic wheel locking system. Once the wheel is in the correct position, the wheel is automatically locked to allow for precise application of the balance weights.
• Pneumatic rim mounting mechanism
• If necessary, the necessary place of imbalance and the laser marker can be changed from 12 o'clock. positions to 6 o'clock
• Calibration: Ability to calibrate weights, shaft and automatic measuring devices. In order to ensure only the highest quality of work.
• Settings: the ability to make extensive adjustments to the machine configuration and other parameters.
• Automatic rim width and distance reading and data entry for the balancing process. Extremely accurate measuring device that does not require calibration.
• Wheel balancer, supports all balancing modes, including dynamic balancing, 3 static balancing, 7 ALU balancing and 2 configurable EALU and changeable OPT function. Also, the machine has 2 weight hiding functions.

Technical parameters:

• Diameter of balanced rims: 10" - 32"
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5" - 25"
• Rotation speed, during balancing: 150 rpm
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Motor power: 0.25 kW

Standard equipment:

• Balancing cones of different dimensions x 4 pcs.
• Pneumatic wheel nut
• Special mirrors for gluing balancing weights
• 100 g calibration weight
• Pliers for working with weights
• Mounting adapter with native protection
• Calibration plate
