Automatic Welding Helmet SideClear

Country of origin: Netherlands, warranty period - 24 months

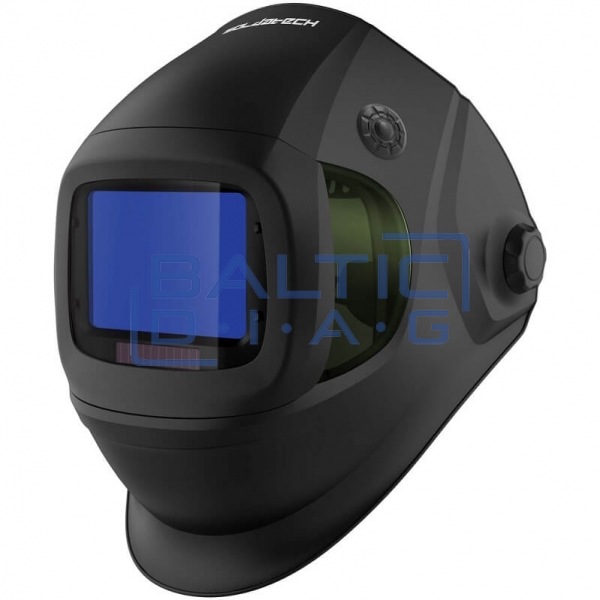

The SideClear EWH5 automatic welding helmet offers a wide field of view and enhanced comfort, making it ideal for TIG welding and precision work. The 107 × 75 mm viewing area ensures a clear vision, while the side lenses improve peripheral vision and can be covered if needed.

The helmet is equipped with four independent arc sensors, ensuring fast automatic darkening, even at low welding currents from 2A (AC/DC). The digital display allows for precise filter adjustments, while the DIN 4 light mode ensures clear visibility before welding. The adjustable grinding mode (DIN 5-8) also makes the helmet suitable for plasma cutting.

With a switching speed of 1/25,000 sec, the lens reacts instantly to the welding arc, protecting the user's eyes. The solar cell and two CR2450 batteries ensure reliable operation, while the external push button allows for quick switching between welding and grinding modes, even while wearing gloves. The five-strap headgear evenly distributes weight for a secure and comfortable fit. The impact-resistant nylon shell is durable yet lightweight.

Features:

• 4 independent arc sensors – ensure fast and reliable automatic arc detection
• TIG detection from 2A (AC/DC) – excellent response for low-current welding
• Clear lens technology – ultimate vision and clarity
• Side lenses enhance peripheral vision, with optional cover caps
• Digital display – easy and precise filter adjustments
• Fast switching speed (1/25,000 sec) – instant eye protection
• External push button allows quick switching between welding and grinding modes
• Complies with safety standards: CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1

Technical Specifications:

• Optical class: 1/1/1/1
• Viewing area: 107 × 75 mm
• Cassette format: 156 × 123 × 33 mm
• Number of sensors: 4
• Light state: DIN 4
• Grinding mode: DIN 5 ~ 8
• Dark state: DIN 9 ~ 13
• Shade control: Internal, digital display control
• Power on/off: Automatic on/off
• Sensitivity: Adjustable (low-high), stepless rotary knob
• UV/IR protection: DIN 16
• Power supply: Solar cell, 2× CR2450 replaceable lithium batteries
• Battery low indicator: Yes, digital display
• Switching time (light to dark): 1/25,000 sec
• Delay time (dark to light): 0.1 - 1.0 sec (adjustable with stepless rotary knob)
• Minimum TIG amperage: ≥ 2 A (DC); ≥ 2 A (AC)
• Operating temperature: -10°C ~ +55°C
• Storage temperature: -20°C ~ +70°C
• Material: High-impact resistant nylon

Applications:

• MMA welding: BMBE
• TIG welding: GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC
• MIG welding: GMAW (MIG/MAG) / GMAW-P
• Cutting and welding: PAC / CAC-A / OC
• Other welding methods: PAW / OFW
