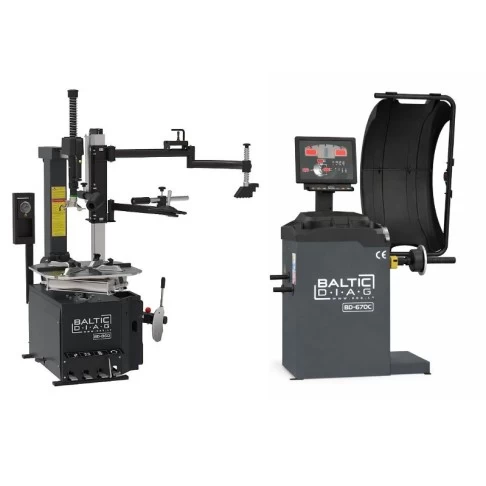

Name: Automatic tyre mounting and wheel balancing machine set BD-860 + BD-215 + BD-670C
Brand: BALTIC DIAG
SKU: BD-860 + BD-215 + BD-670C
Price: 2999.00 EUR
Availability: InStock

Automatic tyre mounting and wheel balancing machine set BD-860 + BD-215 + BD-670C

-9%

Automatic tyre mounting and wheel balancing machine set BD-860 + BD-215 + BD-670C

Pre-order

-9%

2,999.00€

3,299.00€

Ex Tax: 2,478.51€

Manufacturer:: BALTIC DIAG
SKU: BD71383

BALTIC DIAG

Prices include VAT

Qty

Add to Cart

Add to Wish List

Want to buy or learn more?

Fill out the inquiry form

Information

Automatic tyre mounting and wheel balancing machine set BD-860 + BD-215 + BD-670C

Country of origin: China, 24 months warranty period

A reliable and efficient set of equipment is essential for a professional wheel repair shop, enabling both tyre fitting and wheel balancing to be carried out quickly. This BD-860 + BD-215 + BD-670C kit combines two essential workstations to ensure a smooth work process from tyre removal to final balancing. It is the solution for garages that value productivity, precision and reliability in their daily operations.

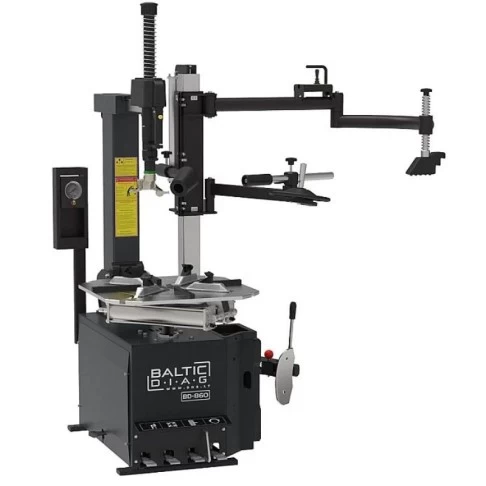

BD-860 + BD-215 automatic tyre fitting machines

Technical specifications:

Fixed inner rim diameter: 15" - 28"
Fixed outer rim diameter: 13" - 26"
Maximum wheel diameter: 1200 mm
Maximum wheel width: 3" - 15" | 76 - 380 mm
Tyre compression force: 2700 kg (27000 N)
Operating pressure: 8 - 10 bar
Mounting speeds: two
Motor power: 1 kW
Supply voltage: 380 V / 50 Hz / 3 phases

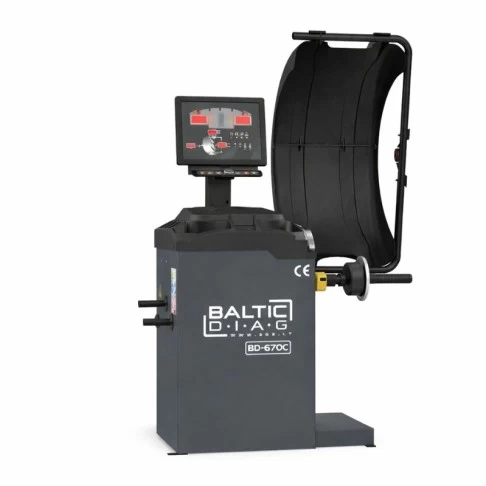

Automatic wheel balancing machine for passenger cars BD-670C

Technical specifications:

Wheel diameter: 10"-24"
Maximum wheel diameter: 1000 mm
Rim width: 1.5"-20"
Rotational speed: 200 rpm
Maximum wheel weight: 65 kg
Balancing accuracy: ±1 g
Motor power: 0.25 kW

This kit allows you to optimise your wheel service work, reduce working time and ensure high quality service. The coordinated operation of the equipment avoids errors and allows efficient work even in high workflow situations.

Functions

BD-860 + BD-215 automatic tyre fitting machines

Functions:

Steel mounting head - durable construction with replaceable plastic guards to protect rims from damage.
Self-centring clamps - two pneumatic cylinders lock the rims firmly and securely in place.
Independent tyre inflator - complete with pressure gauge, inflation hose and inflation button.
Pneumatic locking of the mounting head - the position of the head can be easily adjusted with a foot pedal, and once the right position is found, it can be locked at the push of a button.
Filter and pressure regulator system - ensures optimum air supply and protection of the equipment from moisture.
Assisted tyre mounting handle - helps with difficult rims and has on-board pressure rollers, lifting disc and pressure head.

BD-670C Automatic Wheel Balancing Machine for Cars

Features:

Automatic distance and diameter input
Automatic ultrasonic rim width measurement (sonar system)
Automatic imbalance point detection and wheel position lock
Cross laser marker at 9 o'clock position for precise mounting of weights
Integrated work light
40 mm balancing axis with quick-tightening nut
Multiple balancing modes: static, dynamic, ALU, MOTO etc.
Convenient control via display

Package contents

BD-860 + BD-215 automatic tyre fitting machines

Included:

Tyre mounting paste bucket x 1 pcs.
Tyre Mounting Paste Brush x 1 pc.
Plastic protector for mounting finger x 1 pc.
Plastic protector for press knife x 1 pc.
Plastic protectors for clamps x 4 pcs.
Mounting bracket/lever x 1 pc.

BD-670C Automatic wheel balancing machine for passenger cars

Included:

Set of 4 cones x 1
Wheel width gauge x 1
Quick-locking nut x 1
100 g calibration weight x 1
Pliers for mounting calipers x 1
Cone spring x 1
Rubber rim protector x 1
