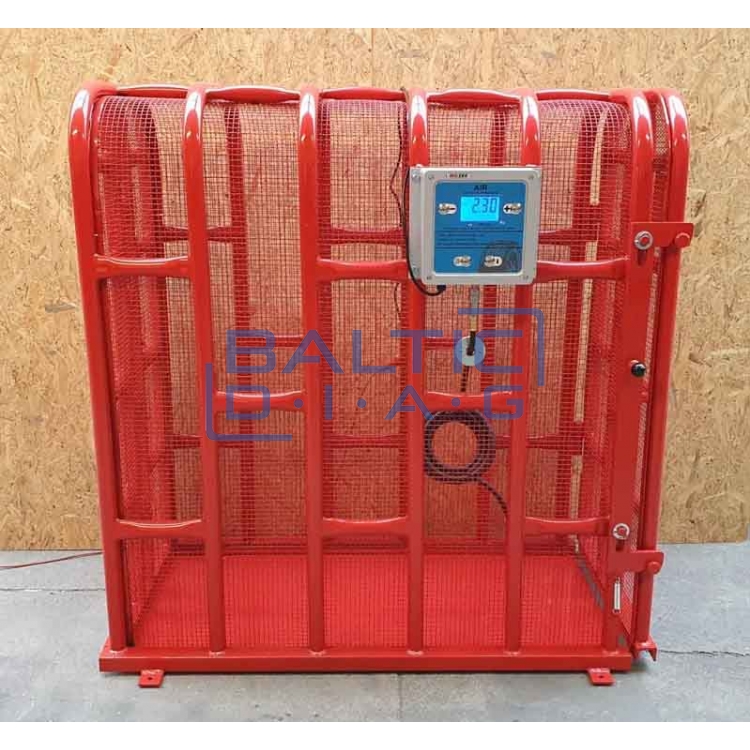

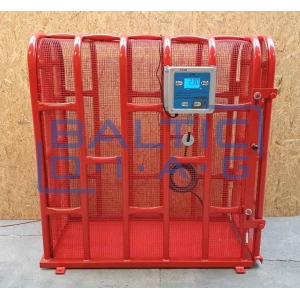

Automatic tire inflation cage for truck, agricultural machinery, and trailer tires Coton

Automatic Tire Inflation Cage for Truck, Agricultural Machinery, and Trailer Tires Coton

Features:

• Automatic tire inflation control

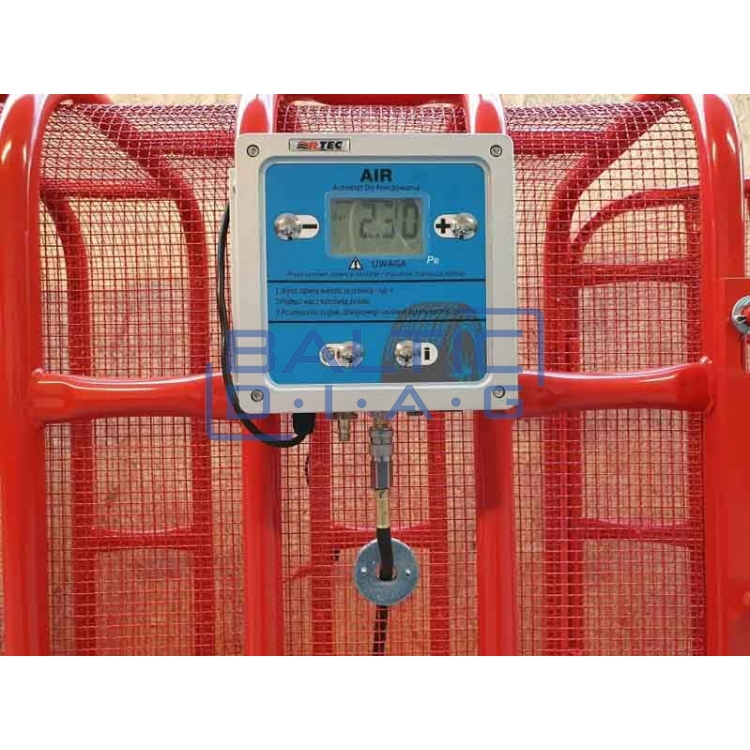

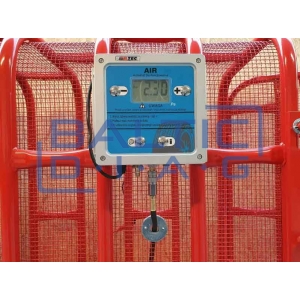

• LCD screen for pressure adjustment
• Audible signal notifying of completed inflation
• Protection against tire explosions and rim component separation
• Steel mesh with 10 × 10 mm holes ensures user safety
• Ergonomic design suitable for use in workshops and open spaces
• Compliant with CE safety requirements

Technical Specifications:

• Maximum air pressure: 12 bar
• Maximum tire dimensions: 385 / 85, R22.5
• Operating air pressure: 0.5 – 10 bar (1000 kPa / 145 psi / 10 kg/cm²)
• Accuracy: ±0.02 bar
• Maximum supplied air pressure: 10.5 bar (150 psi)
• Power supply voltage: 240 V / 50 Hz / 1 phase
• Maximum power consumption: 12 W
• Operating temperature range: -10 °C to 60 °C
• Humidity tolerance: 95% (non-condensing)
• Weight: 166 kg
• Compliance: CE certification
• External Dimensions:
• Length: 1330 mm
• Width: 750 mm
• Height: 1330 mm
• Internal Dimensions:
• Length: 1190 mm
• Width: 530 mm
• Height: 1195 mm
