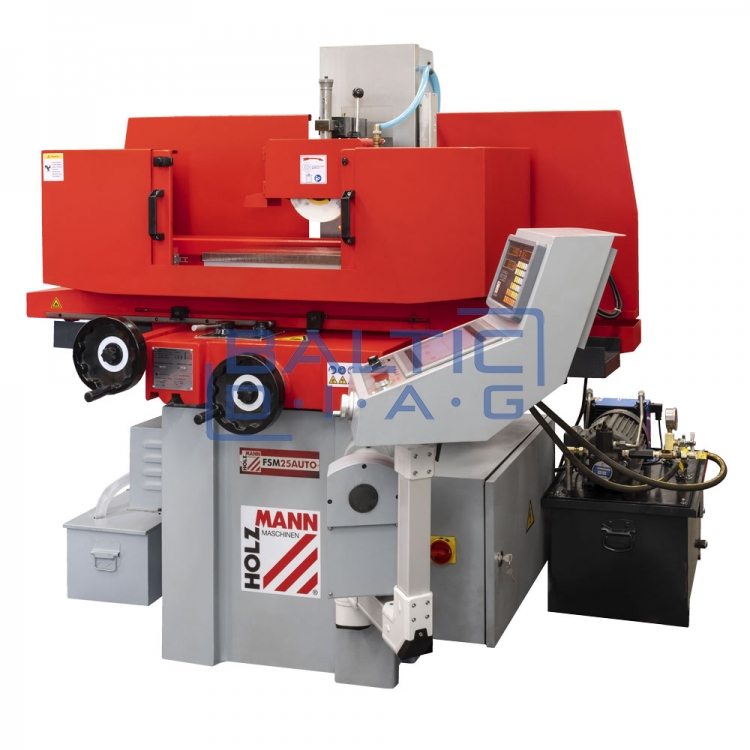

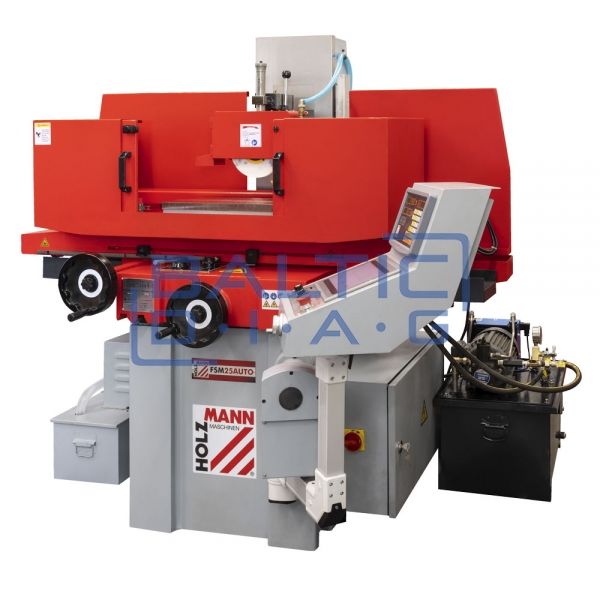

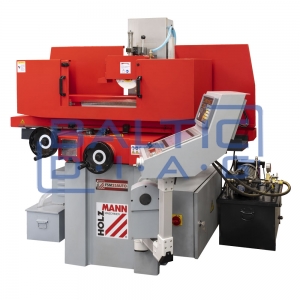

Automatic metal grinding machine Holzmann FSM25AUTO 400V

Automatic metal grinding machine Holzmann FSM25AUTO 400V

Manufacturer: Holzmann (Austria)

Features:

Metal surface grinding machine with automatic cycle function (grinding preparation, fine grinding, final grinding)

The base of the machine is made of cast iron - it ensures maximum strength and stability

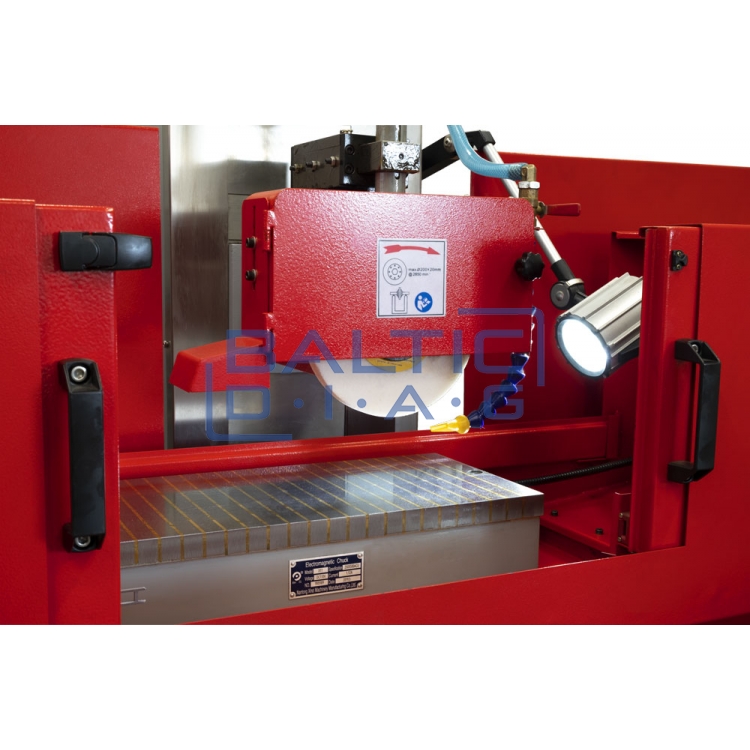

Electromagnetic chuck (500 x 250 mm) included for clamping workpieces (magnetization/demagnetization via control panel switch)

Coolant supply equipment is installed (pump, tank, pipes)

Coolant pump: 40 W 12l/min

Device for grinding directly on the machine for sharpening the grinding wheel (diamond)

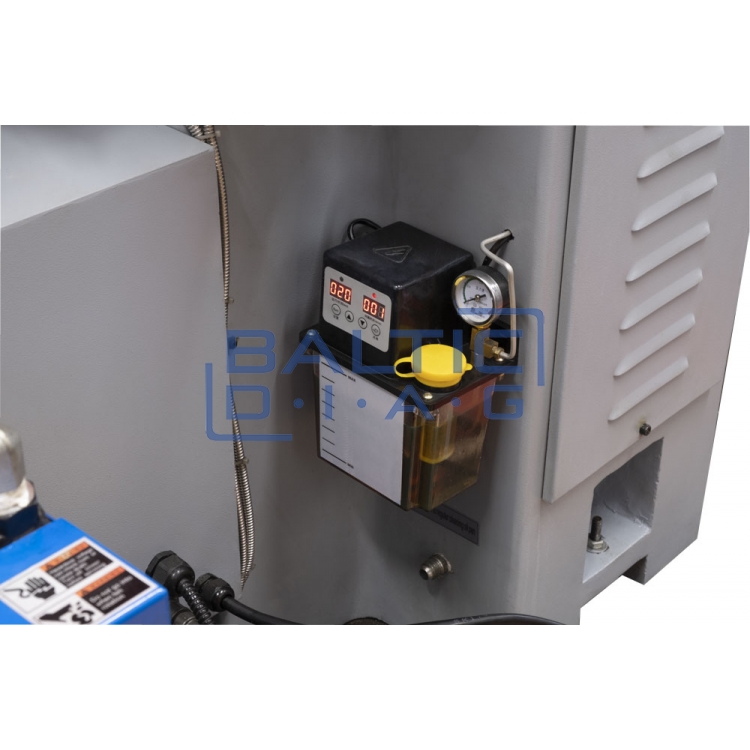

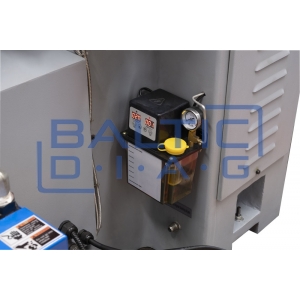

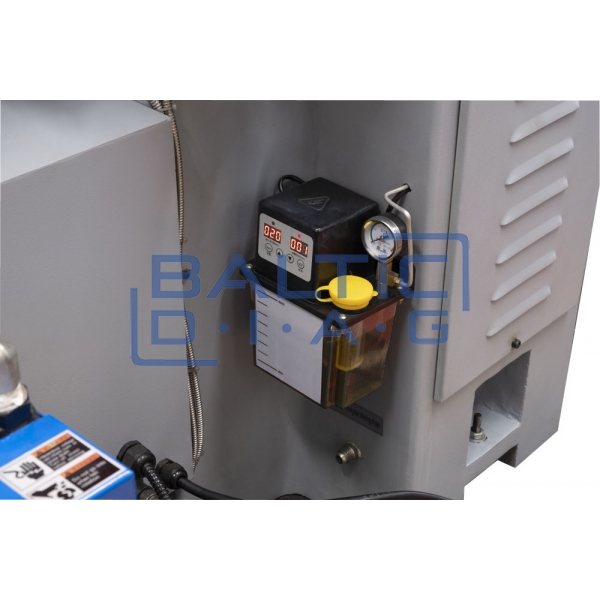

Central lubrication of all guides (automatic - with time function)

It is possible to grind the workpiece up to 500 x 254 x 275 mm

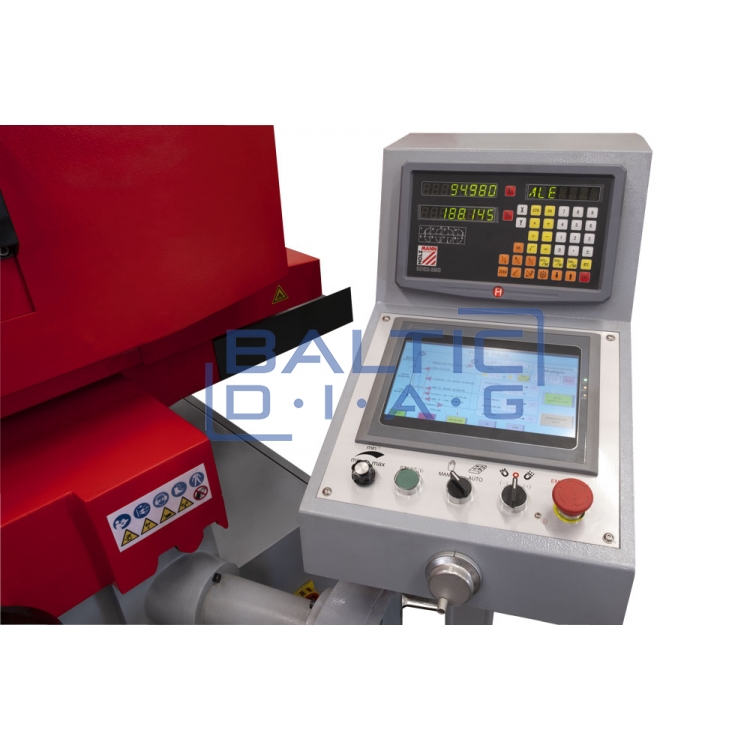

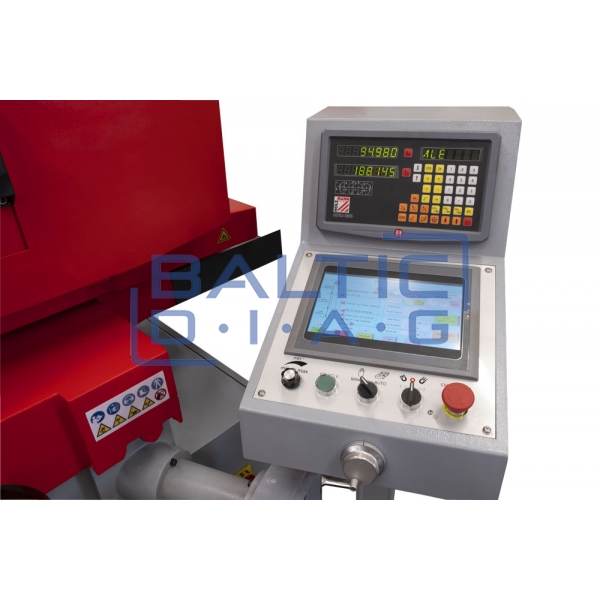

2 axis position display (for grinding feed and table position settings)

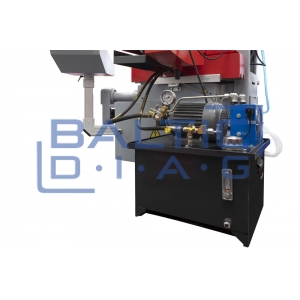

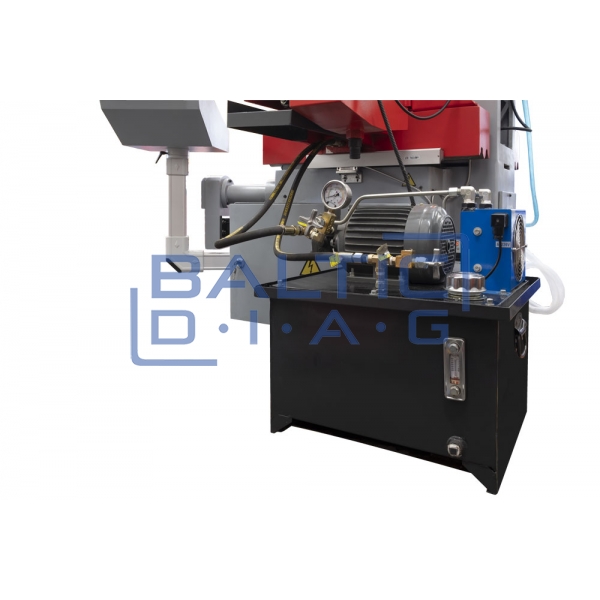

The hydraulic longitudinal feed is regulated by a lever and the switching positions are regulated by a limit switch

Manual longitudinal adjustment is possible using a separate spring-loaded adjuster

Separate motor for transverse movement from the table (the step width is regulated by a potentiometer on the control panel (0.1-11.2 mm/rev.), as well as the switching position is regulated by a limit switch and in the transverse direction)

Manual adjustment (gradation 0.02 mm/rev.)

Height adjustment using a 750W motor

Max. table load: 180kg

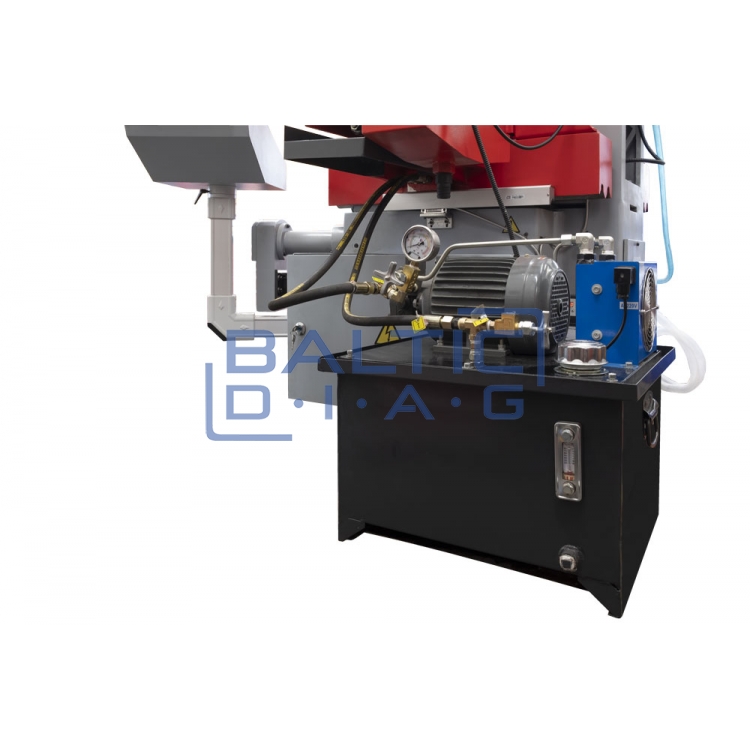

The package includes: grinding disc (Ø200 x 20 mm, WA / 46), coolant pump + tank, grinding disc setting devices (shaft, stand), tools for cleaning the machine, 2 pcs of DRO tools, LED lamp, hydraulic motor with pump and cooler

Technical data:

Motor power s1: 2200 (1500/750/500) W

Voltage: 400V / 50Hz

Rotation speed: 2850 min-1

Stroke: 450 mm

Table size: 250 x 510 mm

Table height: 1000 mm

Overall dimensions: 1950 x 1650 x 1700 mm

Feed: manual

Weight: 1500 kg

Total weight: 1600 kg

Package dimensions: 1420 x 2020 x 2000 mm
