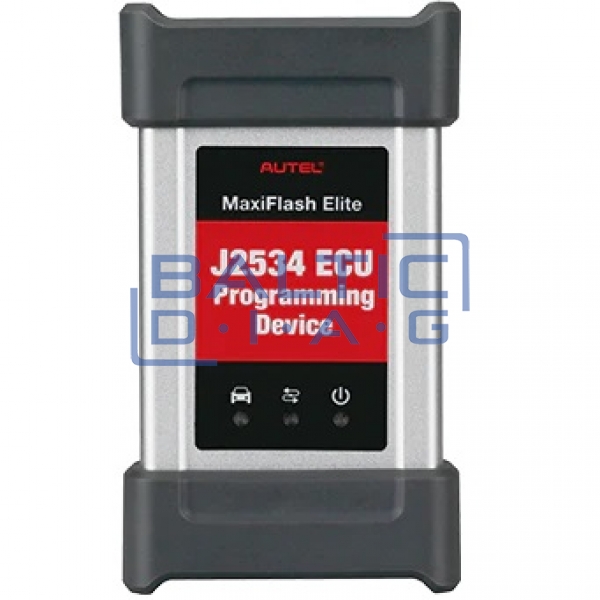

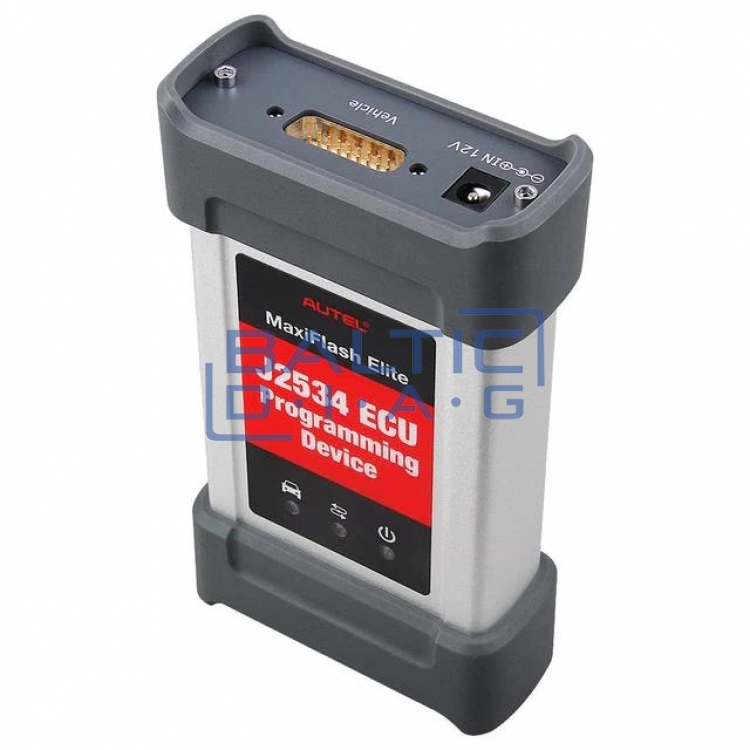

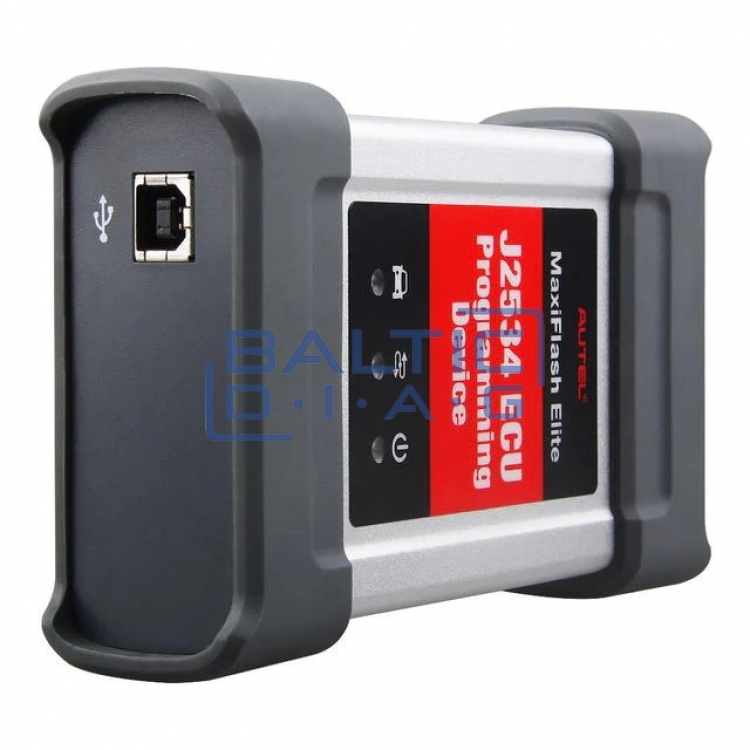

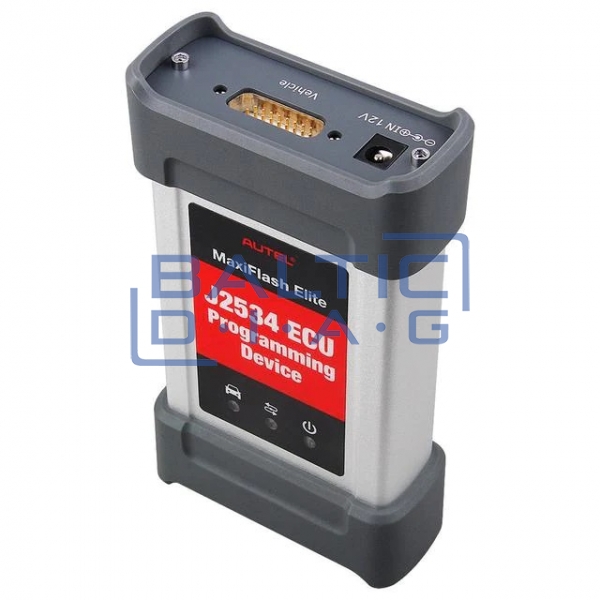

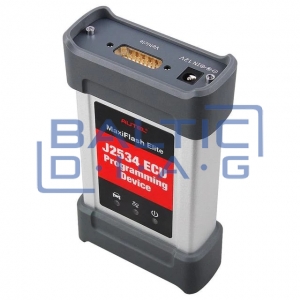

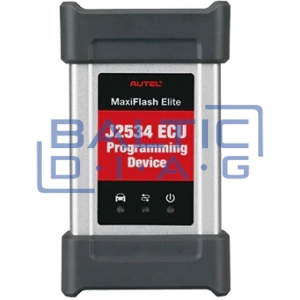

Autel MaxiFlash PRO/Elite VCI module

Autel MaxiFlash PRO/Elite VCI module

Manufacturer: Autel

A multi-protocol module designed to connect to automotive modules. MaxiFlash PRO/Elite is fully compatible with SAE J2534-1 and SAE J2534-2 standards. This module is specially designed to provide users with a convenient connection between the computer they are using and the car's ECU module. It also provides programming capabilities in any modern vehicle. The MaxiFlash module offers the most important features OEM customers want: reliability, fast performance and flexibility.

Features:

• Fully compatible with SAE J2534-1 and J2534-2 programming standards.
• Performs standard PassThru J2534 functions.
• Compatible with Toyota Techstream, Volvo Vida, Honda HDS, Jaguar-Land Rover IDS and BMW 3G OEM diagnostics.
• Fast operation ensures even reprogramming of the latest controllers.
• Wireless connectivity with advanced networking features.
• Built-in wireless connectivity and data storage.
• Rugged design that can withstand harsh environmental conditions.
• Updates are done online.

Technical parameters:

• Connection types: Wireless BT V2.1 + EDR, USB 2.0
• Wireless network frequency: Wireless BT V2.1 + EDR, 2.4 GHz
• Input voltage: 12 V/DC or 24 V/DC
• Supply current: 170 mA - 12 V/DC | 100mA - 24V/DC
• Operating ambient temperature: from -10 °C to +60 °C
• Storage ambient temperature: from -20 °C to +70 °C
• Dimensions (L x W x H): 149 x 86 x 35 mm
• Weight: 0.29 kg
