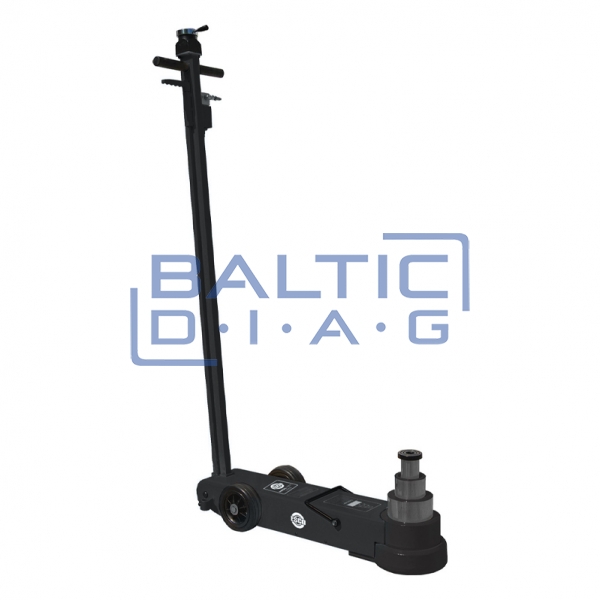

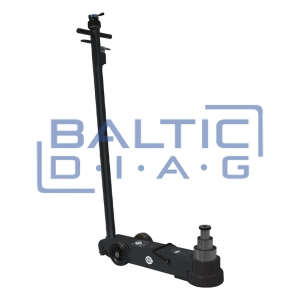

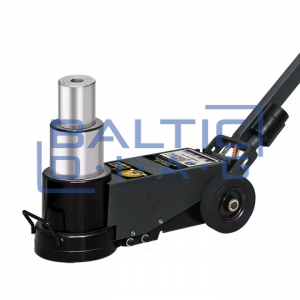

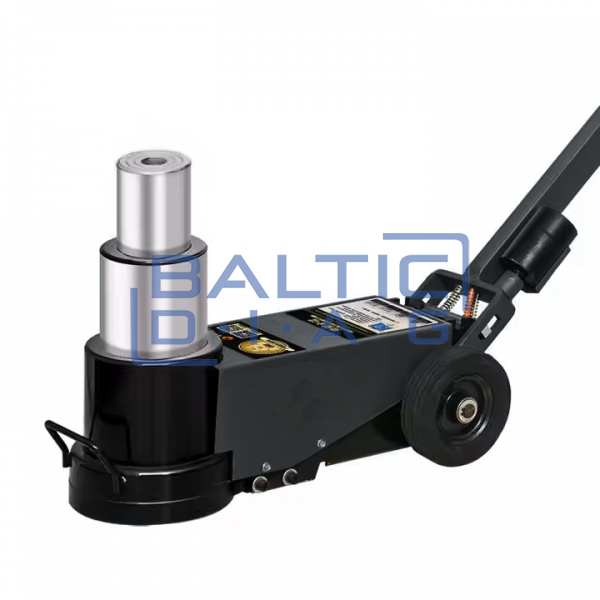

Air-Hydraulic Jack 50/25 t
Country of origin: China, warranty period – 24 months

This is a highly reliable and professional two-stage air-hydraulic jack designed for lifting heavy vehicles such as trucks, buses, or agricultural machinery. With its robust construction, industrial-grade sealing solutions, and compact height, this model is ideally suited for intensive workshop conditions and fleet maintenance operations. The jack is mobile, operates using compressed air, and features a convenient control handle to ensure precise and safe operation.

Features:
  • Two-stage lifting mechanism – 50 t and 25 t capacity
  • Minimum height – only 195 mm
  • Maximum lifting height – up to 370 mm
  • Durable and stable design with reinforced base
  • Industrial piston sealing – improved durability and pressure retention
  • Double-chromed pistons – resistant to oil leakage and wear
  • Overload safety valve – protects the unit from damage caused by excessive loads
  • Mobile design – equipped with wheels for easy transport
Technical Specifications:
  • Lifting capacity: 50 / 25 t
  • Minimum height: 195 mm
  • 1st stage lifting height: 90 mm
  • 2nd stage lifting height: 85 mm
  • Maximum height: 370 mm
  • Working air pressure: 0.7–1.0 MPa
  • Weight (net/gross): 63 / 65 kg
  • Packing dimensions: 720 × 365 × 300 mm
