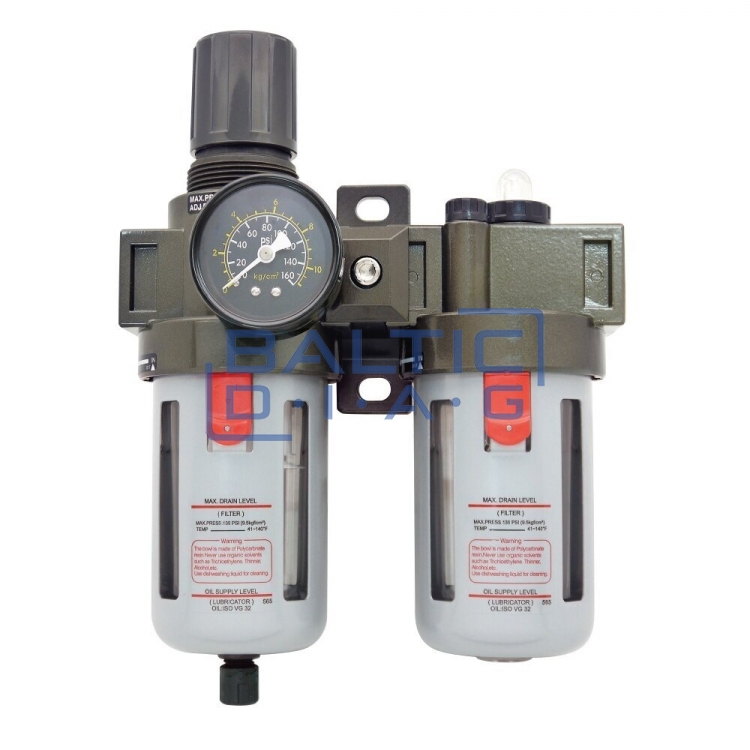

Air flow regulator 3/4 "with filter and oil
Air flow regulator 3/4 "with filter and oil

Air flow regulator 3/4 "with filter and oil

  • SKU: BD14065
81.01 €

LD LD
Prices shown include tax
Add to Cart

Send Message

Description

Air flow regulator 3/4 "with filter and oil

Technical data:

Size: 3/4 "

Max working pressure: ~ 9.5 bar

Adjustable pressure range: 0.5 - 8.5 bar

Filter particle size: 5 µm

Operating temperature: 5 ° C - 60 ° C

Drainage capacity: 100 ml

Oil capacity: 160 ml

Max. throughput: 3100 l / min

Recommended oil: ISO VG - 32

CE conformity

Polycarbonate lubricating vessels can crack or even crack if they are filled with synthetic oil, thinners, trichlorethylene, kerosene, or other aromatic hydrocarbons. Do not use the unit with a lubricant if you plan to set the operating pressure higher than> 10 bar.
