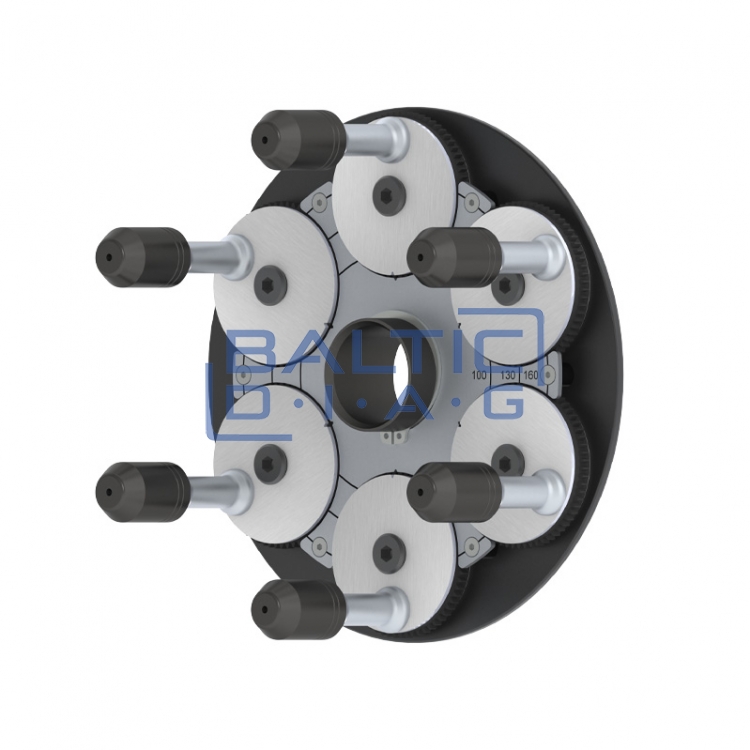

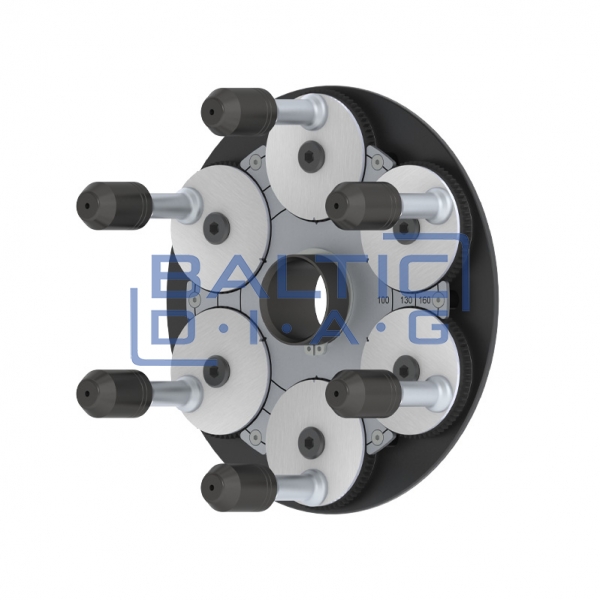

Adjustable clamping plate for wheel centering QuickPlate with standard bolt heads (6-hole) Haweka

Adjustable Clamping Plate for Wheel Centering QuickPlate with Standard Bolt Heads (6-hole) Haweka

Country of origin: Germany, warranty period – 24 months

QuickPlate is an advanced adjustable clamping plate designed for professional wheel centering and clamping on wheel balancing machines. This tool accurately simulates the clamping pressure experienced when tightening vehicle wheels with lug nuts, ensuring maximum balancing accuracy and safety. Thanks to the innovative “Pro-Lock” locking system, rotating eccentric mechanism, and quick-change bolt heads, this system saves time, increases productivity, and protects the rim surface from damage.

Features:

• Compatible with all standard 4-, 5-, and 6-hole rims
• Quick bolt head change with plug-in system
• No need to search for the correct bolt pattern – saves time
• Durable, nearly unbreakable body
• Low mounting height – suitable for short-threaded shafts
• Lightweight – only 1.9 kg, easy to handle
• Reliable fixing with the “Pro-Lock” system
• Rim-friendly design – does not damage painted surfaces
• Accurate clamping pressure – ensures optimal balancing results
• Once set, the bolt pattern remains fixed for the entire tire set

Technical Specifications:

• Compatible rims: 4-, 5-, and 6-hole
• Mounting hole diameters: from 93 mm to 189 mm (depending on QuickPlate type)
• Mounting height: low, suitable for short threaded shafts
• Weight: 1.9 kg
• Construction: highly durable, ergonomic, rim-friendly
• System: “Pro-Lock” clamping and eccentric adjustment system
