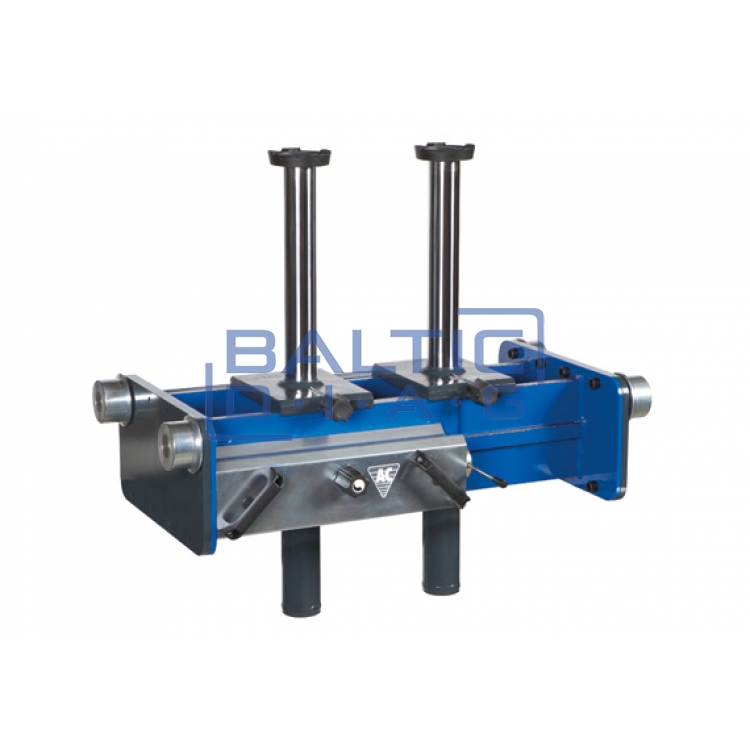

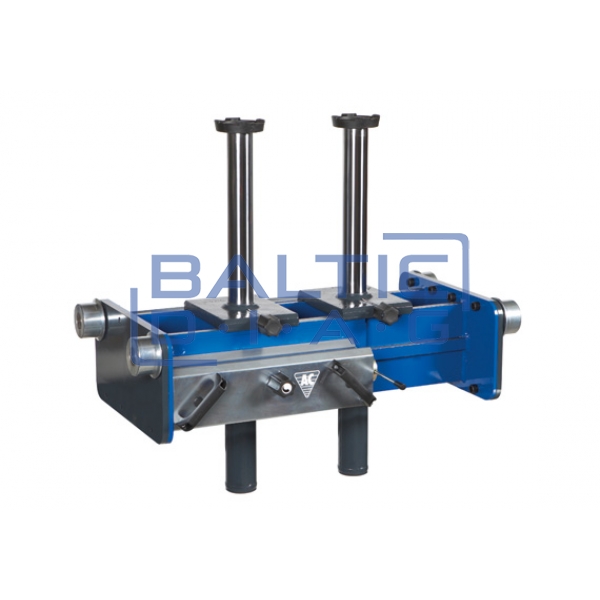

AC Hydraulic GD100-2 Double Pneumatic Hydraulic Pit Hoist
AC Hydraulic GD100-2 Double Pneumatic Hydraulic Pit Hoist

AC Hydraulic GD100-2 Double Pneumatic Hydraulic Pit Hoist

  • SKU: BD13380
4,743.20 €

AC-HYDRAULIC AC-HYDRAULIC
Prices shown include tax
Add to Cart

Send Message

Description

AC Hydraulic GD100-2 Double Pneumatic Hydraulic Pit Hoist


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Pneumatic-hydraulic two-cylinder pit lift truck

Description:
- Fast and accurate pneumatic-hydraulic axle hoist with high-speed cylinder
- 2 individually controlled cylinders for safe and even lifting
- Simple modern design with control panel and ergonomic working height
- Can be adapted for use with all trucks due to its adjustable body
- The height of the casing is adjusted and adjusted according to the customer's requirements
- Sliding cylinders
- Wide range of applications: transverse beam, support bridge and other similar applications
- Supplied with 2 x 100 mm extensions
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:
- Lifting capacity: 10 tonnes
- Stroke of pistons: 420 mm
- Minimum height: 545 mm
- Maximum height: 945 mm
- Lift length: 590-890 / 850-1150 / 1110-1410 mm
- Lift width: 649 mm
- Required compressed air pressure: 8 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 220 kg
Tags: AC Hydraulic GD100-2 Double Pneumatic Hydraulic Pit Hoist , BD13380 , Pit jacks
