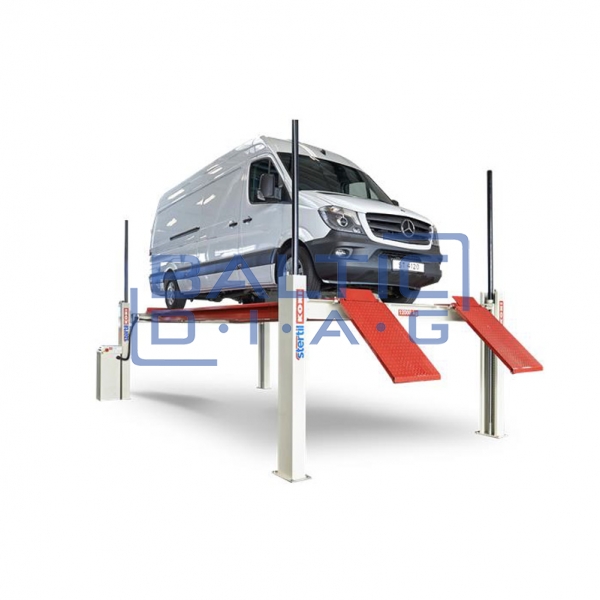

4-post lift for vans, trucks, and forklifts ST 4120 Stertil-Koni

4-Post Lift for Vans, Trucks, and Forklifts ST 4120 Stertil-Koni

Country of origin: Netherlands, warranty period – 24 months

Available Versions:

ST4120 ebright, platform length 6,470 mm (including standard drive-on ramps and end stops)

ST4120 ebright, platform length 8,270 mm (including standard drive-on ramps and end stops)

ST4120 ebright, platform length 10,270 mm (including standard drive-on ramps and end stops)

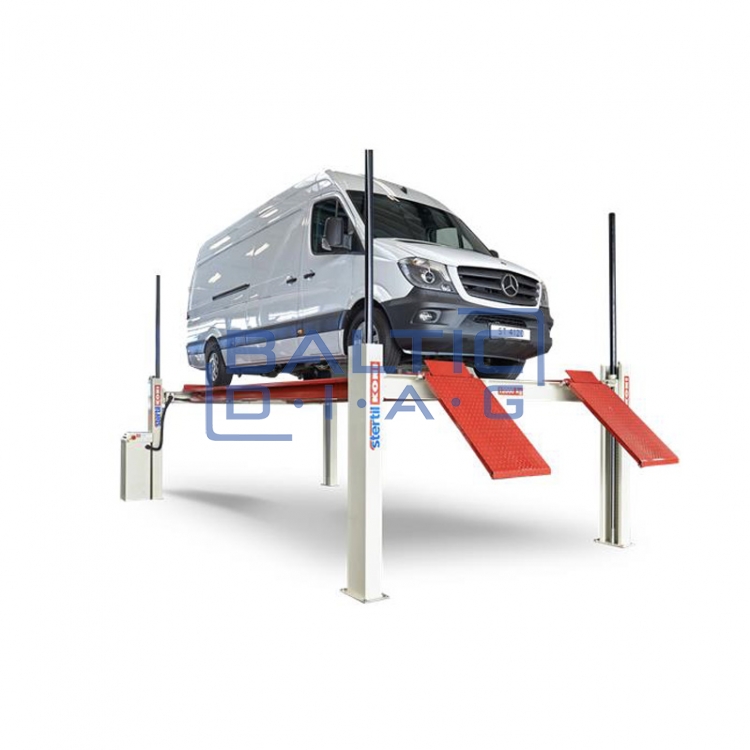

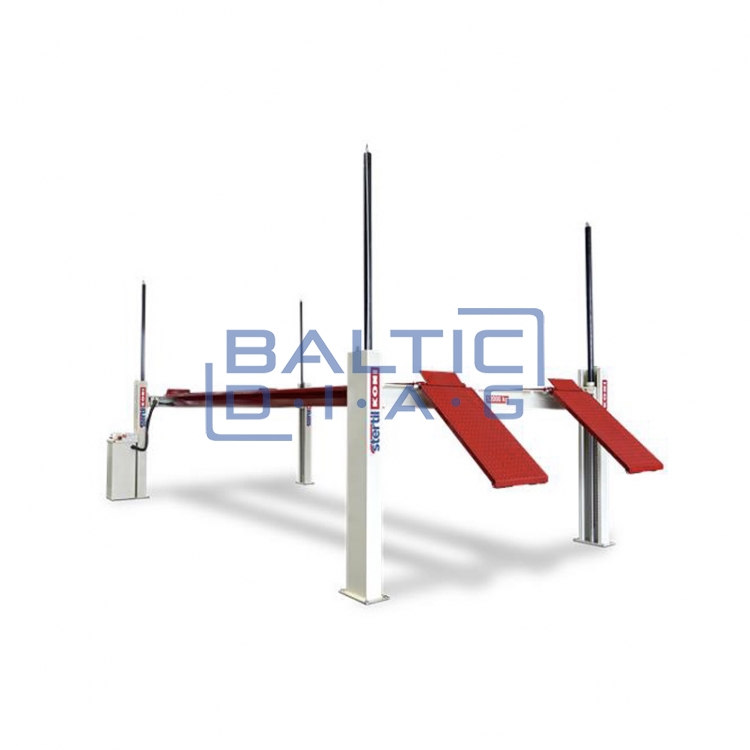

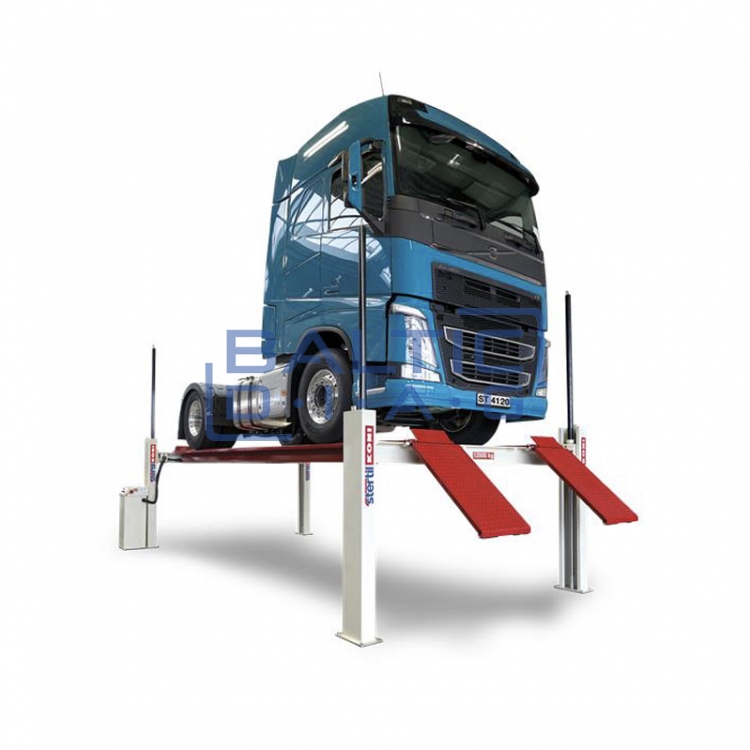

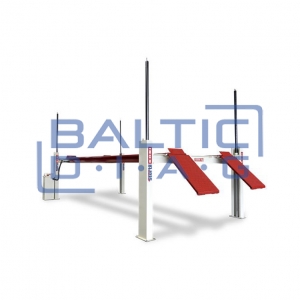

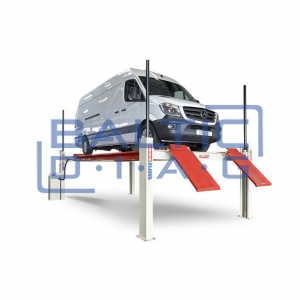

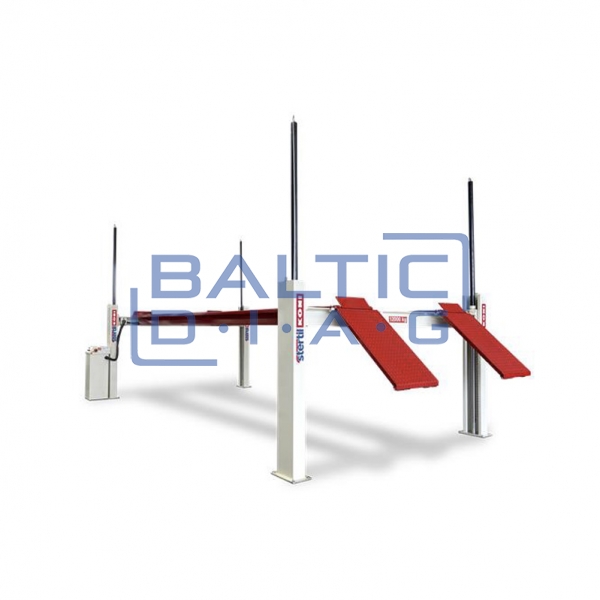

The ST 4120 is a highly robust 4-post hydraulic vehicle lift with an impressive lifting capacity of 12,000 kg. It is designed for use with vans, trucks, and forklifts—including 3-wheel forklifts, which can be accommodated with an optional third platform. With adjustable platform lengths ranging from 4.5 to 10 meters, the lift easily adapts to different vehicle sizes. The advanced ebright Smart Control System allows users to monitor and manage the lifting process with precision. Thanks to its low drive-on height, the lift is particularly suitable for low-clearance vehicles.

Features:

• High lifting capacity – 12 tons: Suitable even for the heaviest vehicles
• Adjustable platform lengths – 4.5, 6.2, 8.0, and 10.0 m: Adaptable for different vehicle types
• Tandem configuration option: For lifting extremely long vehicles

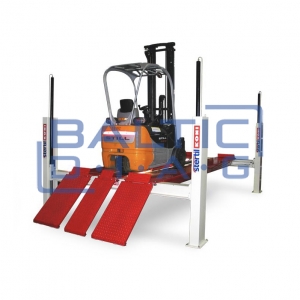

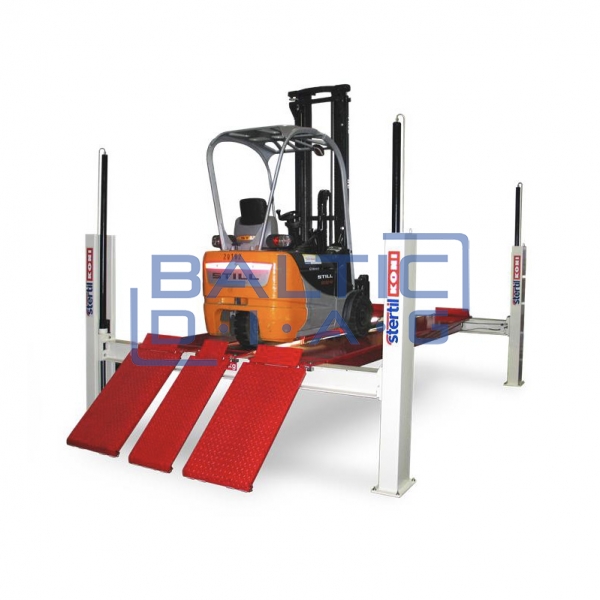

• Optional third platform for 3-wheel forklifts (available for the shortest version)
• Space-saving design: Retains accessibility in compact workshops
• Ebright Smart Control: 7-inch full-color touchscreen with customizable user settings
• Low drive-on height – only 245 mm: Easy access even for low-profile vehicles
• Surface-mounted or recessed installation: Versatile for different workshop floor types
• Minimal moving parts: Enhanced durability and reduced installation costs

Technical Specifications:

• Model: ST 4120
• Lifting system: Hydraulic
• Lifting capacity: 12,000 kg
• Lifting height: 1,890 mm
• Lifting time: 90 sec
• Available platform lengths: 4.5 – 6.2 – 8.0 – 10.0 m
• Motor: 5.5 kW

Easy Accessibility

• Thanks to its low drive-on height (only 245 mm), the ST 4120 allows easy access for low-clearance vehicles such as forklifts or sports cars. This is particularly beneficial for smaller workshops, where every square meter counts. The improved accessibility also enhances workplace ergonomics and overall service efficiency.

Ebright Smart Control System

• The integrated advanced ebright control system features a 7-inch full-color touchscreen display that allows users to clearly and conveniently monitor all lifting operations. Users can configure control settings to their specific needs, and the intuitive information layout reduces the chance of error. This ensures improved safety, precise control, and optimal operational efficiency.

Wide Adjustable Platforms

• The lift’s platforms are not only wide (630 mm), but also adjustable, making them perfectly suitable for vehicles of varying widths—from compact forklifts to larger vans and trucks. This guarantees versatility and better mobility for technicians working underneath the vehicle.
