4-post lift for long vans ST 4070 Stertil-Koni

4-Post Lift for Long Vans ST 4070 Stertil-Koni

Country of origin: Netherlands, warranty period – 24 months

Available Versions:

ST4070-S – platform length 5150 mm / 201 3/8 inches, width 630 mm / 24 3/4 inches

ST4070-SV – platform length 5150 mm / 201 3/8 inches, width 630 mm / 24 3/4 inches, width between columns 3300 mm / 130 inches

ST4070-V – platform length 5750 mm / 225 inches, width 630 mm / 24 3/4 inches

ST4070-L – platform length 6250 mm / 244 5/8 inches, width 630 mm / 24 3/4 inches

ST4070-LV – platform length 6250 mm / 244 5/8 inches, width 630 mm / 24 3/4 inches

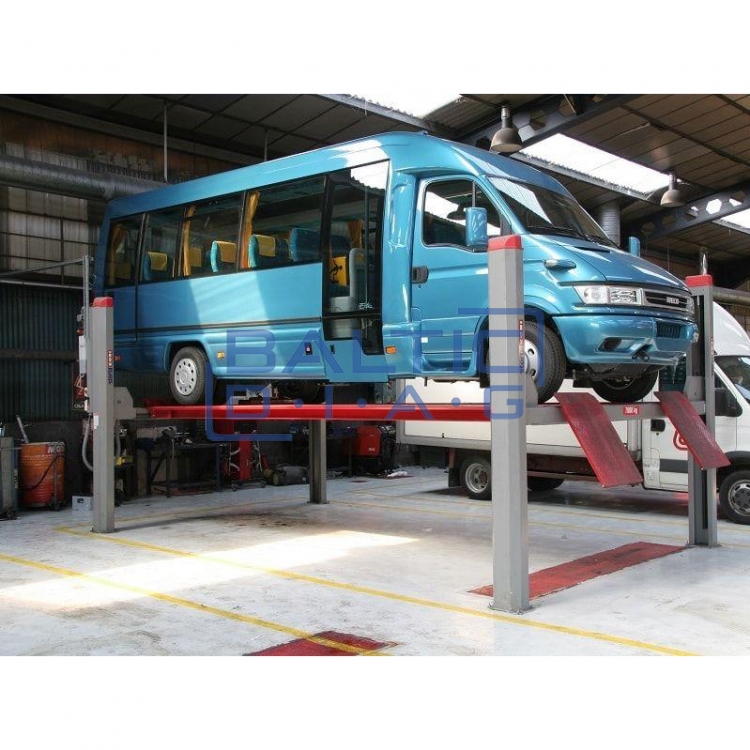

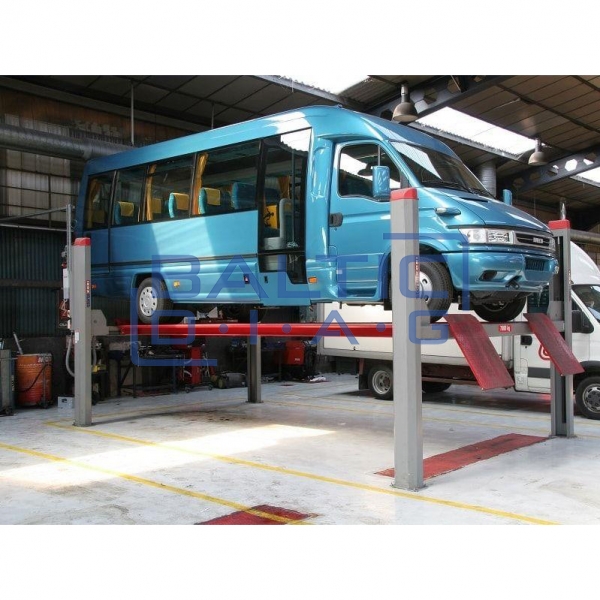

The ST 4070 is a hydraulic 4-post vehicle lift with a lifting capacity of 7,000 kg. It is an excellent choice when a bit more lifting power is required. The lift is especially well-suited for long vans such as the Mercedes Sprinter, Ford Transit, Iveco Daily, or VW Crafter. Thanks to its long platform and compact design, it ensures maximum functionality and working convenience even in smaller workshops.

Features:

• Compact design – suitable for nearly any workshop
• Robust hydraulic system – ensures reliable performance even under heavy loads
• Extensive adaptability – particularly ideal for long commercial vans
• Convenient access – wide spacing between columns allows easy access and maneuverability
• Long platform length – designed to lift long vehicles and vans
• High lifting height – comfortable to work under even for tall mechanics
• Fast operation – full lifting reached in just 39 seconds

Technical Specifications:

• Model: ST 4070
• Lifting system: Hydraulic
• Lifting capacity: 7,000 kg
• Lifting height: 2,030 mm
• Lifting time: 39 seconds
• Platform length: 5,725 mm

Short Drive-On Ramps:

• Short drive-on ramps make it easy for vehicles to access the lifting platform even in compact workshop environments. Thanks to the extremely low drive-on height, even vehicles with low ground clearance can be lifted safely without underbody contact. This design improves flexibility in the workshop and helps save valuable space.

Controllable Lowering Speed:

• The lifting equipment is equipped with an adjustable lowering speed valve, allowing precise and safe vehicle descent. This feature is especially useful when the vehicle needs to be stopped at a specific height, for example, when placing it on axle stands or a transmission jack. It ensures smooth operation and enhances technician safety.
