2-post lift for commercial vehicles FREEDOMLIFT SK 2070 Stertil-Koni

2-Post Lift for Commercial Vehicles FREEDOMLIFT SK 2070 Stertil-Koni

Country of origin: Netherlands, warranty period – 24 months

Available versions:

Version: SK2070-23 with 2 single telescopic and 2 double telescopic arms

Version: SK2070-33 with 4 double telescopic arms

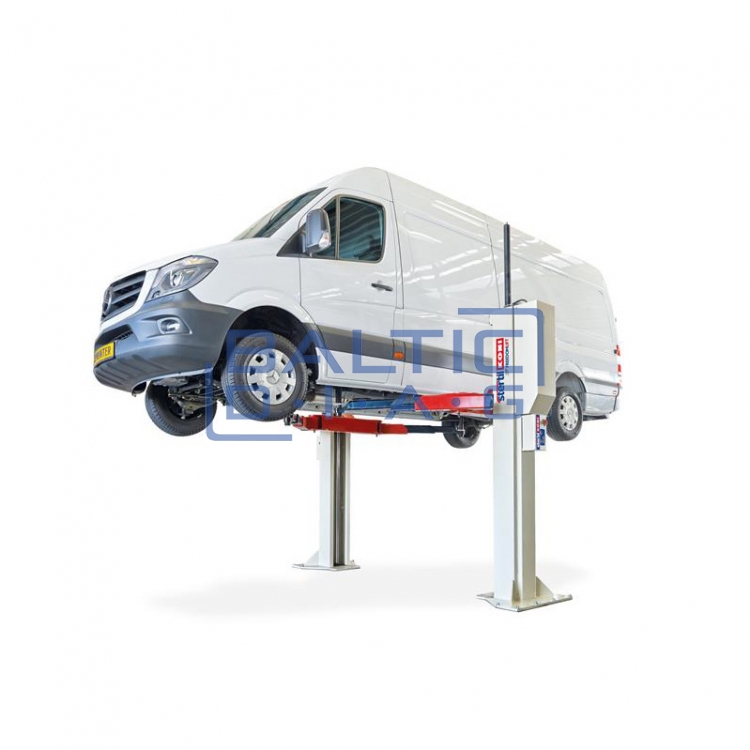

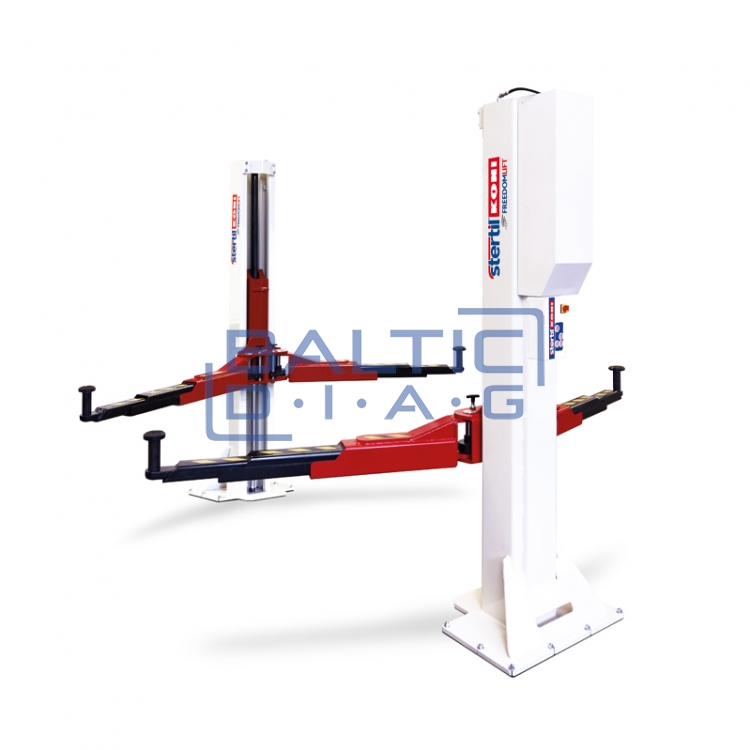

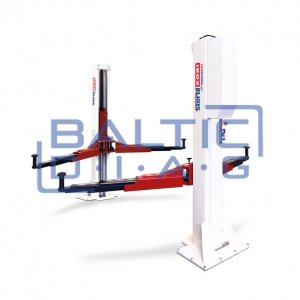

The FREEDOMLIFT SK 2070 is a reliable 2-post electro-hydraulic lift designed for commercial vans and specialized vehicles (e.g., motorhomes). It is available with both single and double telescopic lifting arms. With its baseless design, compact footplates, and automatic safety mechanisms, the SK 2070 is ideal for workshops that value safety, space, and efficiency.

Features:

• High Flexibility: Choose between single or double telescopic arms depending on your needs – easily adaptable to a wide range of vehicle types.
• Modern Design: Baseless construction allows unrestricted access around the vehicle – suitable for nearly any workshop.
• Automatic Arm Locking: Ensures safety and reduces manual effort – precise manual arm positioning possible when elevated.
• Mechanical Safety Lock: Gravity-activated from 210 mm lift height, with locking increments every 35 mm – remains engaged even when the lift is powered off.
• Proven Durability: Hydraulic system tested for over 20,000 lift/lower cycles at full load.
• Overload Protection: Integrated automatic safety system and lift height limiter offer added safety during operation.
• Ergonomic Control Panel: Equipped with hold-to-run buttons and optional LED lighting – safe and convenient for daily use.
• Efficient Installation: Quick and easy to install on standard workshop floors due to its low-profile, compact construction.

Technical Specifications:

• Model: SK 2070
• Lifting capacity: 7,000 kg
• Lifting height: 1,980 – 1,995 mm
• Pick-up height: 130 – 145 mm
• Min. single telescopic arm length: 970 mm
• Max. single telescopic arm length: 1,610 mm
• Min. double telescopic arm length: 900 mm
• Max. double telescopic arm length: 1,940 mm
• Lifting time: 58 s
• Mechanical lock activation height: 210 mm
• Locking interval: every 35 mm

Flexible Extended Arm Joints (EFA):

• Provide maximum flexibility in lifting positions. With hinged joints and multiple telescopic segments, the system is ideal for both passenger vehicles and larger commercial vans or minibuses.

Sliding Block System:

• Ensures stable and smooth post movement. This design reduces friction between moving components, resulting in quiet, smooth, and long-lasting operation.

Automatic Arm Locking Mechanism:

• Activates automatically when the vehicle is lifted. Enhances safety and allows technicians to focus on the task without the need for manual arm locking.

Easy Adjustment:

• Lifting points are easily adjustable without extra tools. The height adjustment mechanism enables accurate positioning of arms for different vehicle models.
